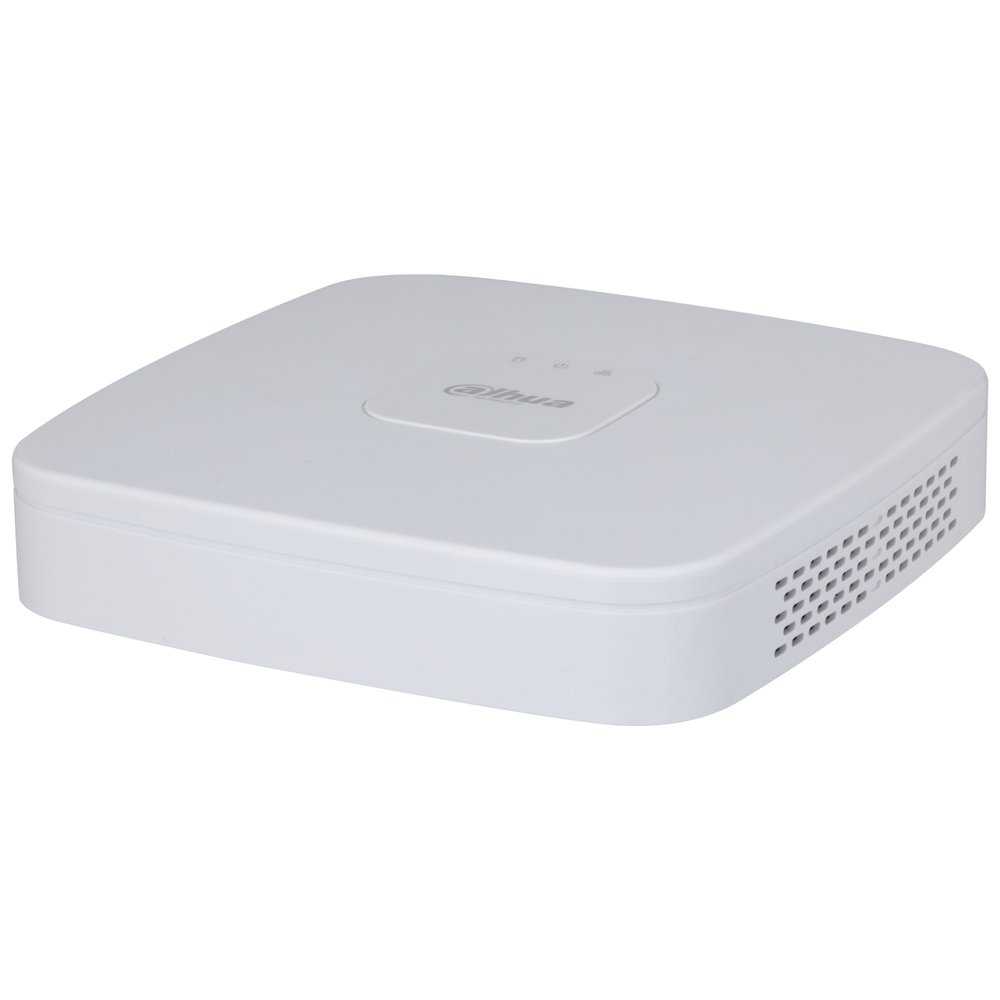

XVR AI WizSense 4 canali HDCVI/CVBS/TVI/AHD a 1080p o 5 canali IP a 2 MP, max. banda 32 Mbps, AI coding, H.265+, 2 uscite video (1 VGA + 1 HDMI), 1/4 ingressi RCA/BNC e 1 uscita RCA audio bidirezionale, predisposto per montaggio di 1 disco SATA (fino a 16 TB), 1 porta RJ-45 10/100 Mbps, 2 porte USB 2.0, 4 canali analog SMD Plus, Smart 1U, alimentazione 12 Vdc <4 W senza Hard Disk
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Smd | |
| SMD Plus by Recorder | reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | 5 channels |
| Irregular Black Block Masking | |
| Irregular Black Block | 1 channel |
| Audio And Video | |
| Analog Camera Input | detect 1. CVI: 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps. |
| Camera Input | 2. TVI: 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 1080p@25/30 fps; 720p@25/30 fps. Up to 5 channels of IPC access 1 IP channel by default + 4 channels (analog channels |
| IP Camera Input | are converted to IP channels) Incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps Main stream: 1080N/720p/960H/D1/CIF@(1 fps–25/30 |
| Encoding Capacity | fps) Sub stream: CIF@(1 fps–15 fps) |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–4096 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps 1 HDMI, 1 VGA |
| Video Output | HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 When IP extension mode not enabled: 1/4 |
| Multi-screen Display | When IP extension mode enabled: 1/4/6 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); |
| Interoperability | CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection |
| Recording Playback | 1/4 |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Alarm | |
| General Alarm | network alarm; PIR alarm Error (no disk, disk error, low space, low quota space; |
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | SMD Plus Record; snapshot (panoramic); IPC external alarm |
| Alarm Linkage | output; audio; buzzer; log; preset; email |
| Ports | |
| Audio Input | 4-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel RCA Coaxial two-way talk: 4-channel BNC |
| Two-way Talk | Local and network user two-way talk: Shares the same audio input with the first channel 1 SATA port, up to 16 TB. This limit varies depending on |
| Disk Interface | the environment temperature. |
| USB | 2 (2 rear USB 2.0 ports) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <4 W (without HDD) |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 1.03 kg (2.27 lb) 204.6 mm × 211.3 mm × 45.8 mm (8.06" × 8.32" × |
| Product Dimensions | 1.80") (W × D × H) 330.0 mm × 101.0 mm × 256.0 mm (12.99" × 3.98" × |
| Packaging Dimensions | 10.08") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN |
| Ordering Information | |
| Type | Model Description 4CH Penta-brid 1080N/ |
| DIGITAL VIDEO | 720P Smart 1U 1HDD DH-XVR4104C-I/T |
| RECORDER | WizSense Digital Video Recorder 802.11AC 650M WIRELESS DH-NC650 ADAPTER |
| Accessories (Optional) | 802.11AX 300M WIRELESS DH-NC300 ADAPTER |
| Accessories | |
| DH-NC650 | DH-NC300 |
| 802.11AC 650M | 802.11AX 300M |
| WIRELESS ADAPTER | WIRELESS ADAPTER Dahua. All rights reserved. Design and specifications are subject to change without notice. Pictures in the document are for reference only, and the actual product shall prevail. |
