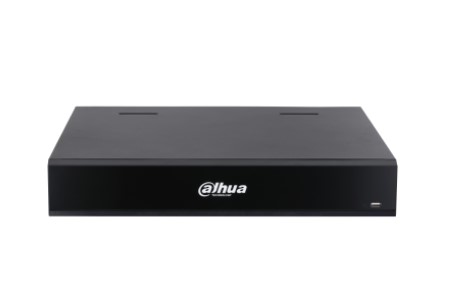

XVR AI WizSense 16 canali HDCVI/CVBS/TVI/AHD fino a 8 MP (analog 15fps encoding) o 16+16 canali IP a 12 MP, max. banda 128 Mbps, AI coding, H.265+, 4 uscite video (1 VGA + 2 HDMI + 1 TV), 16 ingressi e 6 uscite allarme, 4 ingressi e 1 uscita audio BNC bidirezionale, predisposto per montaggio di 4 dischi SATA (fino a 16 TB cad.), 1 porta eSATA, 1 porta RS485, 1 porta RS232, 1 porta di rete 10/100/1000 Mbps, 3 porte USB (2.0 e 2 3.0), 6 canali analog protezione perimetrale, 6 canali analog face recognition, 16 canali SMD Plus, 1.5U, alimentazione 100~240 Vac <30 W senza Hard Disk
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| Quickpick 2.0 | |
| Recorder (Number of | 6 channels |
| Perimeter Protection | |
| Perimeter Performance AI | channel |
| by Recorder (Number of | General Mode: 12 channels, 10 IVS rules for each |
| Channels) | channel |
| Face Detection | |
| Face Attributes | 6 attributes |
| Performance of AI by | 6 channels(up to 12 face images/s each channel) |
| Privacy Protection | |
| Performance of AI by | 1 channel |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images. |
| Performance of AI by | 6 channels |
| Smd Plus | |
| SMD Plus by Recorder | reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 32 channels |
| Ai Video Quality Analytics | |
| AI Video Quality Analytics | cast, defocus, overexposure, contrast levels, black and |
| by Recorder | white |
| Scene Changing | |
| Scene Changing by | 1 channel |
| Irregular Black Block Masking | |
| Irregular Black Block | 1 channel |
| Eptz | |
| EPTZ by Recorder | 1 channel |
| Audio And Video | |
| Analog Camera Input | detect 1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; |
| Camera Input | 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. Up to 32 channels of IPC access 16 IP channels by default + 16 channels (analog channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: |
| IP Camera Input | 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used. ： Encode Enhancement disabled Main stream: 4K@(1 fps–15 fps); 6 MP@(1 fps–20 fps); 5 MP/4K-N/4 MP/3 MP/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps);D1/CIF@(1 fps–25/30 fps) ： Encode Enhancement enabled Main stream: the 1st, 5th, 9th, 13th channel 4K@(1 fps–30 fps), |
| Encoding Capacity | others 4K@(1 fps–15 fps); 6 MP@(1 fps–20 fps); 5 MP/ 4K-N/4 MP/3 MP/1080p/ 720p/ 960H/D1/CIF@(1 fps–25/30 fps) Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) *When Encode Enhancement is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used. |
| Dual-stream | Yes |
| Video Bit Rate | 32 kbps–8192 kbps |
| Audio Sampling | 8 kHz, 16 bit |
| Audio Bit Rate | 64 kbps 2 HDMI, 1 VGA, 1 CVBS HDMI1: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Output | VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720 *Heterogeneous video sources output for HDMI 2 is configurable. When IP extension mode not enabled: 1/4/8/9/16 |
| Multi-screen Display | When IP extension mode enabled: 1/4/8/9/16/25/36 |
| Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
| Compression Standard | |
| Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
| Audio Compression | G.711a; G.711u; PCM |
| Network | |
| Network Protocol | Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Recording Playback | |
| Record Mode | General; alarm; motion detection; intelligent; POS |
| Recording Playback | 1/4/9/16 |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | camera external alarm; network alarm; PIR alarm Error (no disk, disk error, low space, low quota space; |
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline Face detection; face recognition; perimeter protection; |
| Intelligent Alarm | SMD Plus Record; snapshot (panoramic); local alarm; IPC external |
| Alarm Linkage | alarm output; audio; buzzer; log; preset; email |
| Ports | |
| CVBS Output | 1 channel 4-channel BNC |
| Audio Input | 16-channel BNC (Coaxial Audio) |
| Audio Output | 1-channel BNC |
| Two-way Talk | 1-channel BNC |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels 4 SATA ports. Each disk can contain up to 16 |
| Disk Interface | TB. This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50±2% Hz |
| Power Consumption | <30 W (without HDD) |
| Net Weight | 4.9 kg (10.80 lb) |
| Gross Weight | 7.1 kg (15.65 lb) 440.0 mm × 415.7 mm × 76.0 mm (17.32" × 16.37" × |
| Product Dimensions | 2.99") (W × D × H) |
| Packaging Dimensions | 8.31" (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Installation | Desktop CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN |
| Ordering Information | |
| Type | Model Description 16CH Penta-brid 4K 1.5U |
| DIGITAL VIDEO | 4HDDs WizSense Digital DH-XVR7416L-4K-I3 |
| RECORDER | Video Recorder |
| Optional: | |
| DHI-SSD-V800S256G | DHI-SSD-V800S1TB DHI-SSD-V800S512G SSD SSD SSD |
