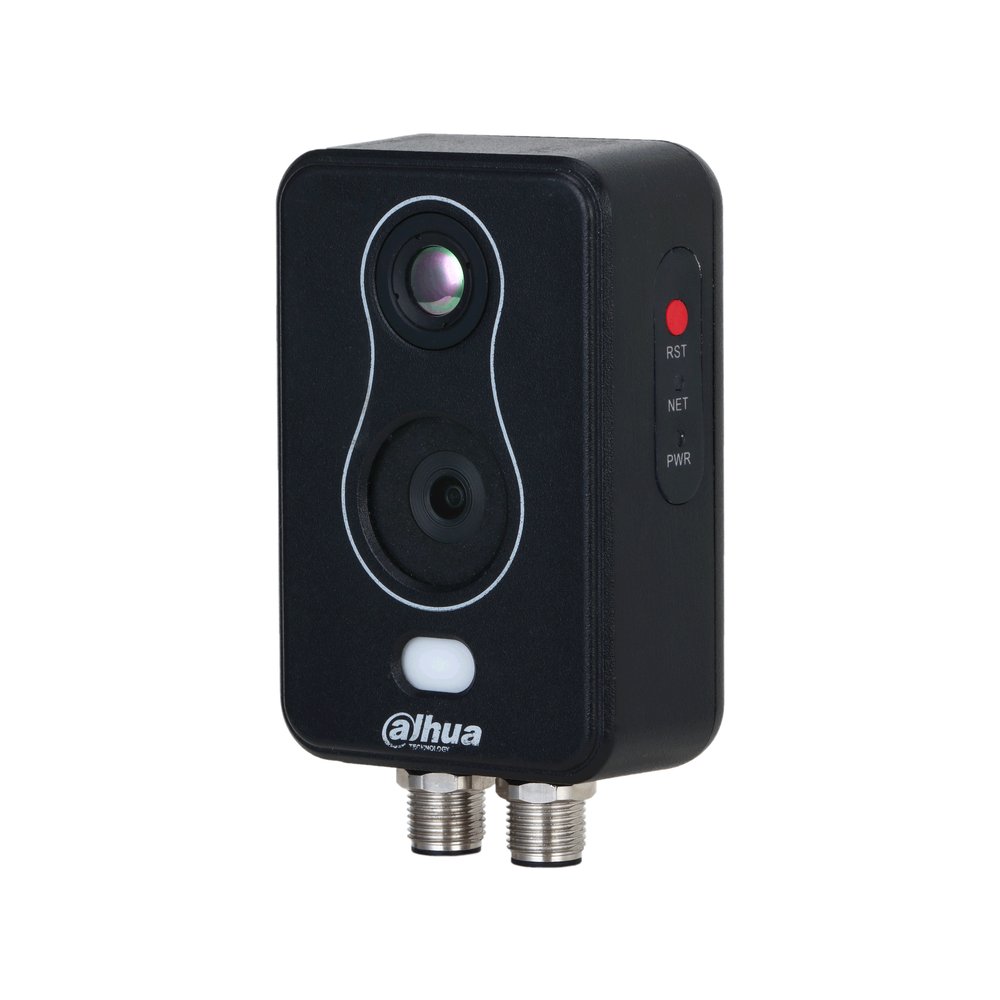

Telecamera IP compatta ibrida termica Dahua
Codice produttore: DHI-TPC-KF2241-T
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 256 (H) × 192 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤40 mK@f/1.0 |
| Focal Length | 2 mm H: 84.8° |
| Field of View | V: 61° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 0.2 m (0.65 ft) |
| Aperture | F1.0 |
| Digital Detail Enhancement | Yes |
| Thermal AGC | Auto; manual |
| Thermal Noise Reduction | 2D NR; 3D NR |
| Image Flip | Mirror/180° 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/ |
| Color Palettes | painting/pomegranate/emerald /spring/summer/ autumn/winter) Low temperature mode: –20 °C to +150 °C (–4 °F to +302 °F) |
| Temperature Measurement | High temperature mode: |
| Range | 0 °C to +550 °C (+32 °F to +1022 °F) Auto mode Max. (±2 °C, ±2%) |
| Temperature Measurement | Operating temperature: –20 °C to +50 °C (–4 °F to +122 |
| Accuracy | °F) Spot: 12 |
| Temperature Measurement | Line: 12 Area: 12 |
| Mode | Supports 12 rules simultaneously |
| Visible | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2336 (H) × 1752(V) |
| Pixel | 4 MP Center ≥150 TVL |
| Horizontal Definition | Edge ≥100 TVL Color: 0.01 lux |
| Min. Illumination | B/W: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto; manual |
| Visible Noise Reduction | 2D NR; 3D NR |
| S/N Ratio | >55 dB Auto; manual; indoor; outdoor; tracking; sodium lamp; |
| White Balance | street lamp; natural |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Digital Zoom | Yes |
| Day/Night | Color; B/W |
| Iris Control | Auto |
| Image Flip | 180° |
| Exposure Compensation | Yes |
| Focal Length | 2 mm H: 93.4° |
| Field of View | V: 69.53° |
| Close Focus Distance | 0.2 m (0.66 ft) |
| Optical Zoom | Fixed |
| Aperture | F2.0 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 4 m (13.1 ft) |
| Audio And Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B;M-JPEG Thermal: Main stream: 1280 × 960; 1280 × 768; 640 × 480; 256 × 192; 1280 × 960 (default) Sub stream: 640 × 480; 256 × 192; 256 × 192 (default) |
| Resolution | Visible: Main stream: 2336 × 1752; 1080p (1920 × 1080; 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (default) Sub stream: D1 (704 × 576); CIF (352 × 288); 352 × 288 (default) Thermal (50 Hz & 60 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default |
| Video Frame Rate | Visible (50 Hz & 60 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM |
| Image Encoding Format | JPEG |
| Function | |
| Sound and Light Alarm | White light alarm prompts HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; |
| Network Protocol | FTP; IPv4/v6; NTP; Multicast; SFTP |
| Region of Interest (RoI) | Yes (customizable) |
| Regional Focus | Yes |
| Interoperability | CGI IE: IE 8 and later |
| Browser | Chrome: 42 and earlier Firefox: 42 and earlier |
| User/Host | Up to 6 (total bandwidth: 64 MB) Authorized username and password; attached MAC |
| Security | address; encrypted HTTPS; IEEE 802.1x; controlled network access Up to 6 users; supports multi-level user permissions (2 |
| User Management | levels): management group and user group |
| Malfunction Detection | Network disconnection detection; IP conflict detection |
| Fusion Mode | Warm color; cold color; fuse with iron oxide red |
| PIP | Yes |
| Intelligence | |
| Cold/Hot Spot Trace | Yes |
| Port | |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 1 |
| Alarm Output | 1 |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power | |
| Power Supply | 12 VDC ± 20%; PoE (802.3af); ePoE Basic: 3 W (12 VDC) |
| Power Consumption | Max: 5 W (white light on, adapter excluded) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –20 °C to +50 °C (–4 °F to +122 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Physical Characteristics | |
| Protection | IP67 Surge protection: 6 kV |
| Reliability | Air discharge: 15 kV Contact discharge: 8 kV |
| Structure | |
| Product Dimensions | (L × W × H) Protection box: 239 mm × 110 mm × 71 mm (9.41" × |
| Packaging Dimensions | 4.33" × 2.80") (W × L × H) |
| Net Weight | ≤0.5 kg (1.10 lb) |
| Gross Weight | ≤1.0 kg (2.20 lb) |
| Lens | |
| Bracket | Optional: Wall mount: PFB110W, 816W2 |
| Ordering Information | |
| Type | Model Description Dahua Thermal Network Hybrid |
| Radiometry | |
| Accessory | DH-PFB110W Wall Mount Bracket |
| Optional: | |
| Wall Mount | Bracket The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
