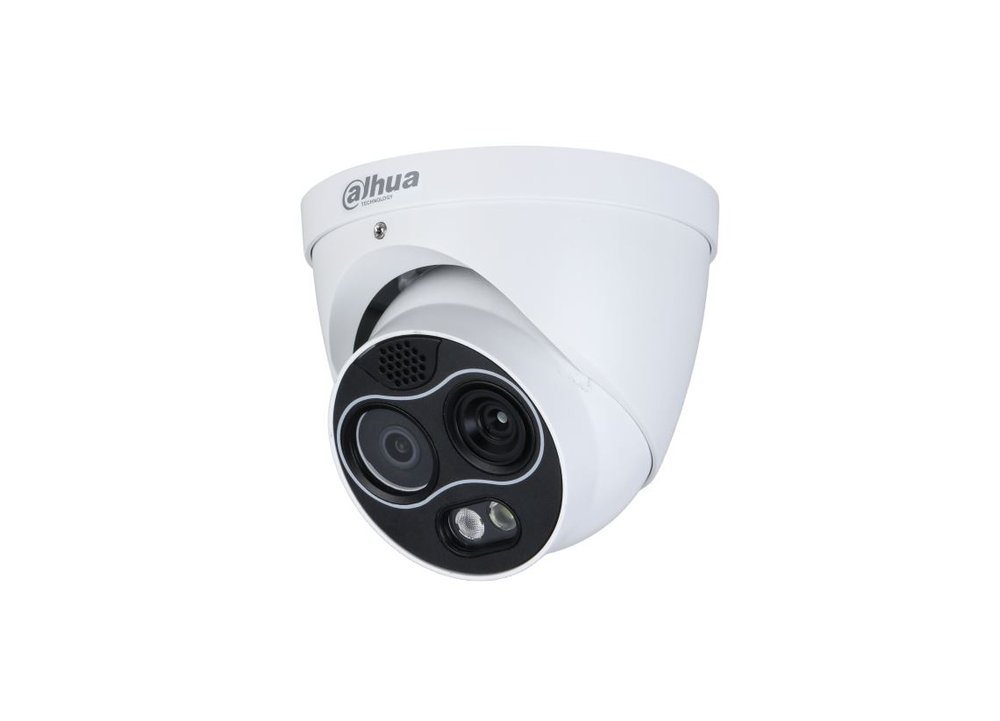

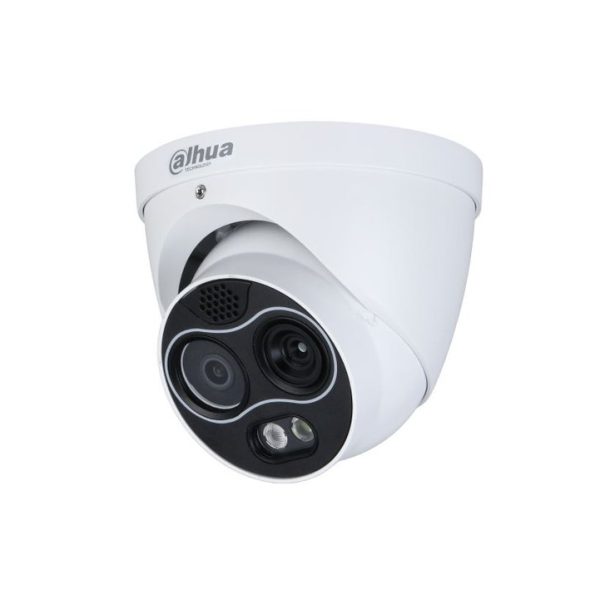

TPC-DF1241-B7F8-DW-S8 – Telecamera termica da esterno dome Serie EUREKA, Dual-Lens , ottica term ica da 7mm + ottica visibile da 8mm , sensore 1/2.7″ CMOS da 4MP, Illuminatore IR 30mt, 1x ingresso + 1x uscita Audio , 2x
Telecamera Speed Dome Motorizzata Termica Ibrida – Dahua
Tecnologia Dual-Lens, doppia ottica: termica 7mm / visibile 8mm
Sensore CMOS da 4MP
Risoluzione 256 x 192 (ottica termica) / 2336 × 1752 ( ottica visibile )
Spettro visivo da 8 μm–14 μm
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Max. Resolution | 256 (H) × 192 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Thermal Sensitivity | < 40 mK (@f/1.0, 25 Hz, 300 K) |
| (NETD) | 2 mm: H: 87.8°; V: 63.8° |
| Field of View | 3.5 mm: H: 50.6°; V: 37.8° 7 mm: H: 24°; V: 18° 2mm 0.3 m (0.98 ft) : |
| Close Focus Distance | 3.5 mm: 0.5 m (1.64 ft) 7 mm: 1 m (3.28 ft) 2 mm: Vehicle: 256 m (839.90 ft); Human: 83 m (272.31 ft) 3.5 mm: Vehicle: 449 m (1,473.10 ft); |
| Detection Distance | ① Human: 146 m (479.00 ft) 7 mm: Vehicle: 897 m (2,942.91 ft); Human: 292 m (958.01 ft) 2 mm: Vehicle: 63 m (206.69 ft); Human: 21 m (68.90 ft) 3.5 mm: Vehicle: 110 m (360.89 ft); |
| Recognition Distance | ② Human: 38 m (124.67 ft) 7 mm: Vehicle: 220 m (721.78 ft); Human: 75 m (246.06 ft) |
| Identification Distance | ③ Human: 19 m (62.34 ft) 7 mm: Vehicle: 111 m (364.17 ft); Human: 38 m (124.67 ft) |
| Aperture | F1.0 |
| Digital Detail | Yes |
| Digital Zoom | 16 levels |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Image Flip | 180° 18 (white hot/black hot/fusion/rainbow/golden autumn/ |
| Color Palettes | midday/iron red/amber/jade/sunset/icefire/painting/ pomegranate/emerald /spring/summer/autumn/winter) |
| Fusion Mode | 3 (Warm color; Cool color; Ironred) |
| Visible | |
| Image Sensor | 1/2.7'' CMOS |
| Max. Resolution | 2336 (H) × 1752 (V) |
| Pixel | 4 MP |
| Electronic Shutter Speed | 1/30,000 s–1 s Color: 0.05 lux |
| Min. Illumination | Black & white: 0.005 lux 0 lux (IR on) |
| IR Illumination Distance | 30 m (98.43 ft) |
| IR Illuminator On/Off | Auto; Manual |
| Control | 2 mm: F2.2 |
| Aperture | 4 mm: F1.6 8 mm: F2.0 2 mm: H: 94°; V: 72° |
| Field of View | 4 mm: H: 71.2°; V: 52° 8 mm: H: 33.4°; V: 25° |
| Focus Control | Fixed 2 mm: 0.3 m (0.98 ft) |
| Close Focus Distance | 4 mm: 1 m (3.28 ft) 8 mm: 2.5 m (8.2 ft) |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; |
| White Balance | Natural |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| S/N Ratio | ≥55 dB |
| Region of Interest (RoI) | Yes |
| Image Flip | 180° |
| Exposure Compensation | Yes |
| Intelligence | |
| General Intelligence | Tripwire; Intrusion Heat Detection & Alarm Cold & Hot Spot Trace |
| Advanced Intelligence | Human & Vehicle Classification Smoking Detection Call Detection |
| Video And Audio | |
| Video Compression | H.265; H.264; H.264H; MJPEG Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default) |
| Resolution | Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default) |
| Thermal | |
| Frame Rate | Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM |
| Protocol | |
| Edge Storage | Micro SD card (256 G) |
| Interoperability | ONVIF; CGI; DaHua SDK IE: IE 8 and later |
| Browser | Google: 42 and earlier Firefox: 42 and earlier |
| User/Host | 10 Authorized username and password; attached MAC |
| Security | address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Network | |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm Input | 2 |
| Alarm Output | 2 |
| RS-485 | 1 pair |
| Power | |
| Power Supply | 12 VDC 1.2 A ± 20%; PoE , Basic: <3 W (12 VDC, LED off); 3.5 W (PoE) |
| Power Consumption | Max: <7W (12 VDC, LED on, heater on); 9 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Temperature | –30 °C to +70 °C (–22 °F to ﹢158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Product Dimensions | (L × W × H) 155 mm × 155 mm × 135 mm (6.10" × 6.10" × 5.31") |
| Packaging Dimensions | (L × W × H) |
| Net Weight | ≤0.85 kg (1.87 lb) |
| Gross Weight | ≤1 kg (2.20 lb) |
| Heat Detection Distance | |
| Focal Length | Max. Distance |
| 2 mm | 25 m (82.02 ft) |
| 3.5 mm | 45 m (147.64 ft) |
| 7 mm | 86 m (282.15 ft) |
| Perimeter Protection Distance | |
| Focal Length | Distance (Human) Distance (Vehicle) |
| 2 mm | 14 m (45.93 ft) 42 m (137.80 ft) |
| 3.5 mm | 24.5 m (80.38ft) 72.5 m (237.86 ft) |
| 7 mm | 49 m (160.76 ft) 146.5 m (480.64 ft) |
| Ordering Information | |
| Type | Model Description Thermal: 256 × 192 2 mm lens DHI-TPC-DF1241-B2F2-DW-S8 Visible: 4 MP 2 mm lens |
| Accessories | |
| (Optional) | PFA130-E Junction Box PFM320D Power Adapter The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Optional: | |
| PFB203W | PFA106 PFB220C |
| Wall-mount bracket | Ceiling-mount Ceiling-mount adapter plate bracket |
| PFA130-E | PFM320D |
| Junction box | Power adapter Junction Mount |
| Wall Mount | Ceiling Mount |
