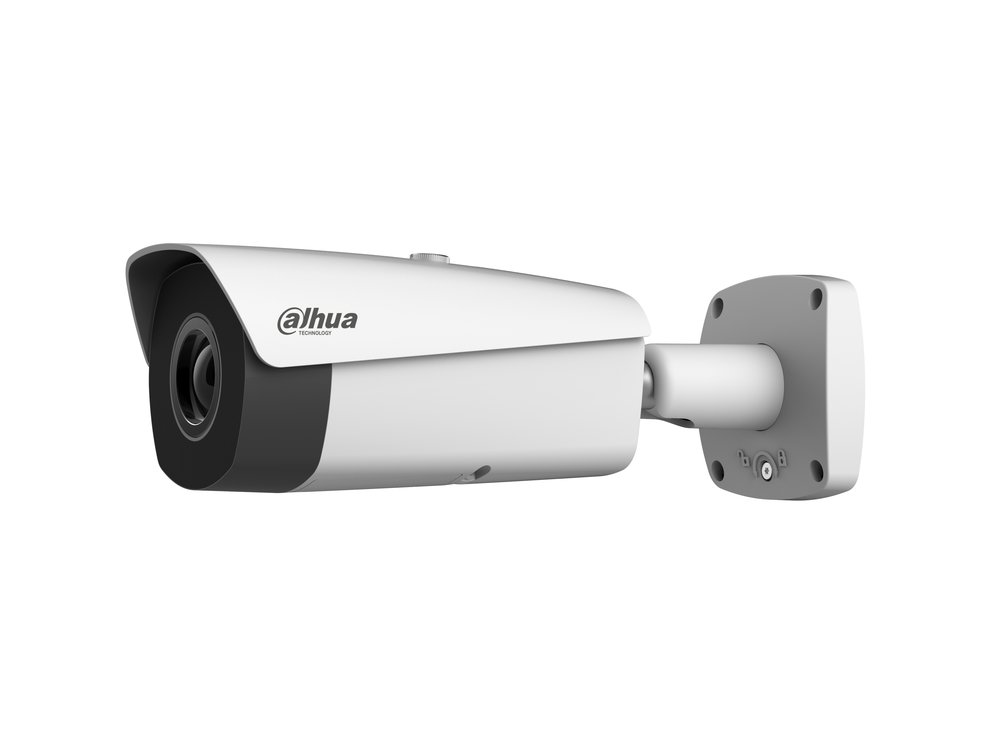

Telecamera bullet termica IP AI da interno/esterno IP67, risoluzione termica 400×300 a 25fps, sensibilità 35 mK, ottica termica 25 mm, spettro visivo 8~14 µm, 1 porta LAN 10/100 Mbps, 1 porta CVBS/BNC, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 RS485, IVS (protezione perimetrale), rilevamento calore e temperature (12 regole punto/linea/area, range -20°~+150°/0~+550°), traccia punti caldi/freddi, classificazione persone/veicoli, micro SD card (512 GB), alimentazione 12 Vdc/ePoE <14 W
| · | |
| Series | 40mK Fire Detect Fire Detection |
| Thermal Camera | |
| Image Sensor | Uncooled VOx Microbolometer |
| Effective Pixels | 400(H)x300(V) |
| Pixel Size | 17um |
| Thermal Sensitivity(NETD) | 40mK |
| Spectral Range | 8~14um |
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR 18(Whitehot/Blackhot/Ironrow/Icefire/ |
| Color Palettes | Fusion/Rainbow/Globow/Iconbow1/ Iconbow2 .etc) |
| Thermal Lens | |
| Lens Type | Fixed/F1.0 |
| Focus Control | Athermalized, Focus-free |
| Focal Length | 7.5mm 13mm 25mm 35mm H: 53.7° H: 30.2° H: 15.5° H: 11.1° |
| Angle of View | V: 39.7° V: 22.6° V: 11.6° V: 8.3° D②: 221m D: 382m D: 735m D: 1030m |
| Effective Distance① | R③: 57m R: 98m R: 189m R: 265m |
| Man(1.8m*0.5m) | I ④: 28m I: 49m I: 95m I: 132m D: 490m D: 850m D: 1634m D: 2288m |
| Effective Distance | R: 126m R: 219m R: 420m R: 588m |
| Vehicle(4m*1.4m) | I:63m I: 109m I: 210m I: 294m |
| Video | |
| Compression | H.265 / H.264 / MJPEG Main Stream: Thermal: 1280×1024 / 720P / 400×300 @25/30fps |
| Frame Rate | Sub Stream: Thermal: 640×512 / 400×300 @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 640 ~ 8192Kbps |
| Motion Detection | Off/On (4 zone, Rectangle) |
| Region of Interest | Off/On (4 zone) |
| Electronic Image Stabilization | NA |
| Digital Zoom | 4x(19 levels) |
| Flip | 180° |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 area, Rectangle) |
| Audio | |
| Compression | G.711A / G.711Mu / AAC / PCM |
| Intelligence | |
| IVS | Tripwire, Intrusion Fire detection & alarm, Cold/Hot spot trace, |
| Advanced Intelligent Functions | Human/Vehicle classification |
| Network | |
| Ethernet | RJ-45 IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, |
| Protocol | |
| Interoperability | ONVIF Profile S & G, API |
| Streaming Method | Unicast/Multicast |
| Max. User Access | 10 Users/20 Users Micro SD (256GB) Memory status display (Normal / Error / Active / |
| Edge Storage | Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording |
| Web Viewer | IE8, <Chrome42, <Firefox42 > |
| Management Software | SmartPSS, DSS |
| Smart Phone | Android, iOS |
| Certifications | |
| Certification | CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB ) |
| Interface | |
| Video Interface | 1 Port (CVBS/BNC) |
| Audio Interface | 1/1 In/Out |
| RS485 | Support |
| Electrical | |
| Power Supply | DC 12V/PoE ePoE / |
| Power Consumption | Max. 13W |
| Environmental | |
| Operating Condition | * Start up should be done at above -40°C (-40°F) |
| Storage Conditions | -40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH IP67 |
| Construction | |
| Casing | Metal |
| Dimensions | 291mm× 103mm× 97mm (11.46" x 4.06" x 3.82") |
| Net Weight | 1.5Kg (3.31 lb) |
| Gross Weight | 1.9Kg (4.19 lb) |
| Ordering Information | |
| Type | Part Number Description DH-ITPC-BF5401-B7 Thermal:400×300 7.5mm lens DHI-TPC-BF5401-B13 Thermal:400×300 13mm lens |
| BF5401 | DHI-TPC-BF5401-B25 Thermal:400×300 25mm lens DHI-TPC-BF5401-B35 Thermal:400×300 35mm lens |
| Accessories | |
| ： | PFA121 PFA152-E |
| Junction box | Pole Mount |
| Pfa121+Pfa152-E | |
| PFA121 | PFA121 + PFA152 |
| Dimensions(Mm) | |
| 291.0[11.46"] | 103.8[4.09"] |
| 192.5[7.58"] | 97.2[3.83"] |
