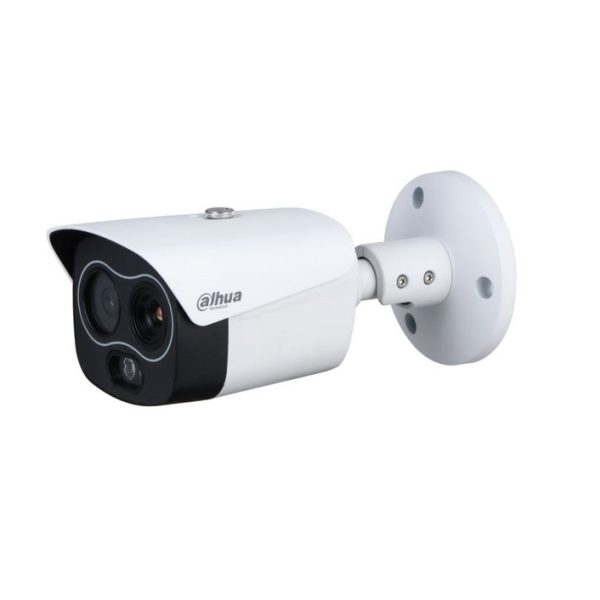

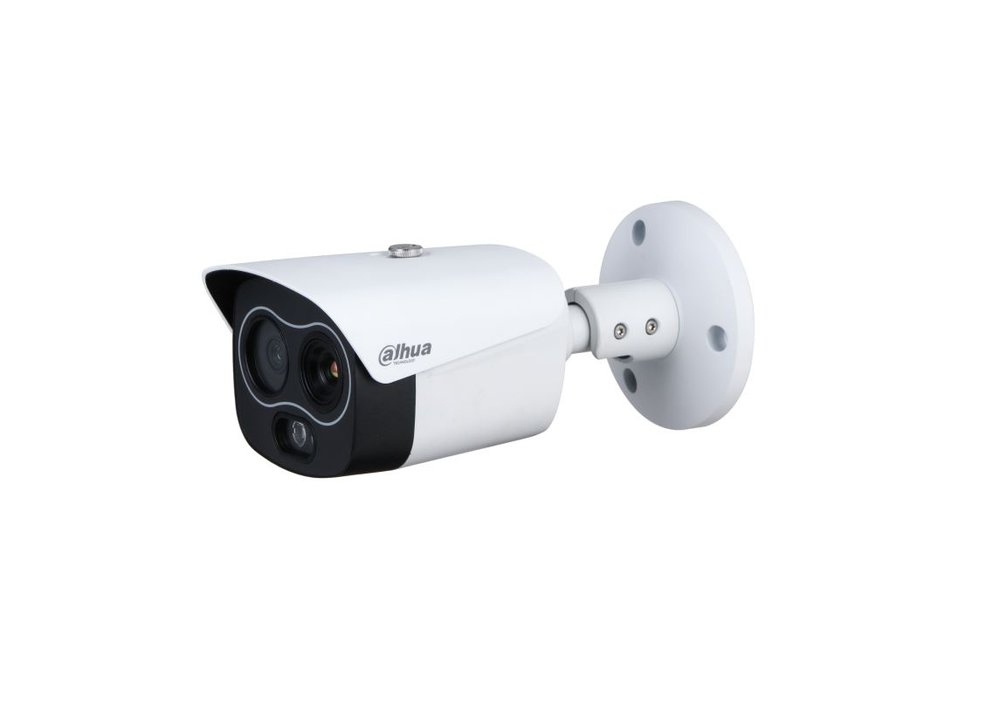

TPC-BF1241-B7F8-DW-WIFI-S8 – Telecamera di videosorveglianza Termica WiFi – IP PoE ONVIF – Eureka – Rilevamento fumo, incendi e allarme – Doppia ottica: termica (7mm) / visibile (8mm) – Risoluzione 4MP per l’ottica visib
Descrizione Dettagli Prodotto Scheda tecnica Ulteriori Dettagli Download
ONVIF® PoE IP – Telecamera Termica WiFi Professionale – Dahua – TPC-BF1241-B7F8-DW-WIFI-S8
Tecnologia Dual-Lens, doppia ottica (Termica 7mm / Visibile 8mm 4MP )
Tecnologia Dual-Sensor , doppio sensore (Vanadium Oxide Uncooled Focal Plane Detector – Termica / 1/2.7″ 4MP CMOS – Visibile)
Risoluzione 256×192 (ottica termica) / 4MP (ottica visibile)
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Max. Resolution | 256 (H) × 192 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Thermal Sensitivity | < 40 mK (@f/1.0, 25 Hz, 300 K) |
| (NETD) | 3.5 mm: H: 50.6°; V: 37.8° |
| Field of View | 7 mm: H: 24°; V: 18° 10 mm: H: 17.3°; V: 13.1° 3.5 mm: 0.5 m (1.64 ft) |
| Close Focus Distance | 7 mm: 1 m (3.28 ft) 10 mm: 2 m (6.56 ft) |
| Aperture | F1.0 |
| Digital Detail | Yes |
| Digital Zoom | 16 levels |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Image Flip | 180° 18 (white hot/black hot/fusion/rainbow/golden autumn/ |
| Color Palettes | midday/iron red/amber/jade/sunset/icefire/painting/ pomegranate/emerald /spring/summer/autumn/winter) |
| Fusion Mode | 3 (Warm color; Cool color; Ironred) |
| Visible | |
| Image Sensor | 1/2.7'' CMOS |
| Max. Resolution | 2336 (H) × 1752 (V) |
| Pixel | 4 MP |
| Electronic Shutter Speed | 1/30,000 s–1 s Color: 0.05 lux |
| Min. Illumination | Black & white: 0.005 lux 0 lux (IR on) |
| IR Illumination Distance | 30 m (98.43 ft) |
| IR Illuminator On/Off | Auto; Manual |
| Control | 4 mm: F1.6 |
| Aperture | 8 mm: F2.0 12 mm: F2.0 4 mm: H: 71.2°; V: 52° |
| Field of View | 8 mm: H: 33.4°; V: 25° 12 mm: H: 22°; V: 16.6° |
| Focus Control | Fixed 4 mm: 1 m (3.28 ft) |
| Close Focus Distance | 8 mm: 2.5 m (8.2 ft) 12 mm: 2.5 m (8.2 ft) |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes Auto; Manual; Indoor; Outdoor; Tracking; Street lamp; |
| White Balance | Natural |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| S/N Ratio | ≥55 dB |
| Region of Interest (RoI) | Yes |
| Image Flip | 180° |
| Exposure Compensation | Yes |
| Intelligence | |
| General Intelligence | Tripwire; Intrusion Heat Detection & Alarm Cold & Hot Spot Trace |
| Advanced Intelligence | Human & Vehicle Classification Smoking Detection Call Detection |
| Video And Audio | |
| Video Compression | H.265; H.264; H.264H; MJPEG Thermal: Main Stream: 1280 × 960 (1.3M); XVGA (1024 × 768); VGA (640 × 480); 256 × 192; 1280 × 960 (by default) Sub Stream: VGA (640 × 480); 256 × 192; 256 × 192 (by default) |
| Resolution | Visual: Main Stream: 2336 × 1752; 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); 2336 × 1752 (by default) Sub Stream: 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288); 352 × 288 (by default) |
| Thermal | |
| Frame Rate | Visual 50 Hz: (main stream) 1 fps–25 fps adjustable, 25 fps by default; (sub stream) 1 fps–25 fps adjustable, 15 fps by default 60 Hz: (main stream) 1 fps–30 fps adjustable, 30 fps by default; (sub stream) 1 fps–30 fps adjustable, 15 fps by default |
| Audio Compression | G.711a; G.711mu; PCM |
| Protocol | |
| Edge Storage | Micro SD card (256 G) |
| Interoperability | ONVIF; CGI; DaHua SDK IE: IE 8 and later |
| Browser | Google: 42 and earlier Firefox: 42 and earlier |
| User/Host | 10 Authorized username and password; attached MAC |
| Security | address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Network | |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm Input | 2 |
| Alarm Output | 2 |
| RS-485 | 1 pair Standard No.: 802.11b/g/n(1×1) Frequency: 2.4 GHz Transmission rate: 150 Mbps |
| Wi-Fi Optional | Transmission distance: 150 m (no shield, no disturbance) Transmission power (Max.): at fc +/-22 MHz -20 dBr; at fc +/-40 MHz -28 dBr; at fc > +/-60 MHz -45 dBr |
| Power | |
| Power Supply | 12 VDC ± 20%; PoE Basic: <5.7 W (12 VDC, illuminator off); 6.8 W (PoE) |
| Power Consumption | Max: <8.2 W (12 VDC, illuminator on, speaker on); 9.4 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Temperature | –30 °C to +70 °C (–22 °F to ﹢158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Product Dimensions | (L × W × H) 279 mm × 187 mm × 138 mm (10.98'' × 7.36'' × 5.43'') |
| Packaging Dimensions | (L × W × H) |
| Net Weight | ≤ 0.9 kg (1.98 lb) |
| Gross Weight | ≤ 1.3 kg (2.87 lb) |
| Heat Detection Distance | |
| Focal Length | Max. Distance |
| 3.5 mm | 45 m (147.64 ft) |
| 7 mm | 86 m (282.15 ft) |
| 10 mm | 123 m (403.54 ft) |
| Focal Length | Distance (Vehicle) Distance (Human) |
| 3.5 mm | 73.5 m (241.14 ft) 24.5 m (80.38 ft) |
| 7 mm | 146.5 m (480.64 ft) 49 m (160.76 ft) |
| 10 mm | 209 m (685.70 ft) 70 m (229.66 ft) |
| Dri Dsitance | |
| Focal Length | Distance Distance Distance ① ② ③ Vehicle: 447 m Vehicle: 112 m Vehicle: 56 m (1,466.54 ft); (367.45 ft); (183.73 ft); |
| 3.5 mm | Human: 146 m Human: 36 m Human: 18 m (479.00 ft) (118.11 ft) (59.06 ft) Vehicle: 894 m Vehicle: 224 m Vehicle: 112 m (2,933.07 ft); (734.91 ft); (367.45 ft); |
| 7 mm | Human: 292 m Human: 73 m Human: 36 m (958.01 ft) (239.50 ft) (118.11 ft) Vehicle: 1,278 m Vehicle: 319 m Vehicle: 160 m (4,192.91 ft); (1,046.59 ft); (524.93 ft); |
| 10 mm | Human: 417 m Human: 104 m Human: 52 m (1,368.11 ft) (341.21 ft) (170.60 ft) |
| Ordering Information | |
| Type | Model Description Thermal: 256 × 192 3.5 mm lens DHI-TPC-BF1241-B3F4-DW-S8 Visible: 4 MP 4 mm lens Thermal: 256 × 192 7 mm lens DHI-TPC-BF1241-B7F8-DW-S8 Visible: 4 MP 8 mm lens DHI-TPC-BF1241-B10F12- Thermal: 256 × 192 10 mm lens DW-S8 Visible: 4 MP 12 mm lens |
| Accessories | |
| (Optional) | PFM320D Power Adapter The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Optional: | |
| Pole-mount bracket | Junction box Power adapter |
