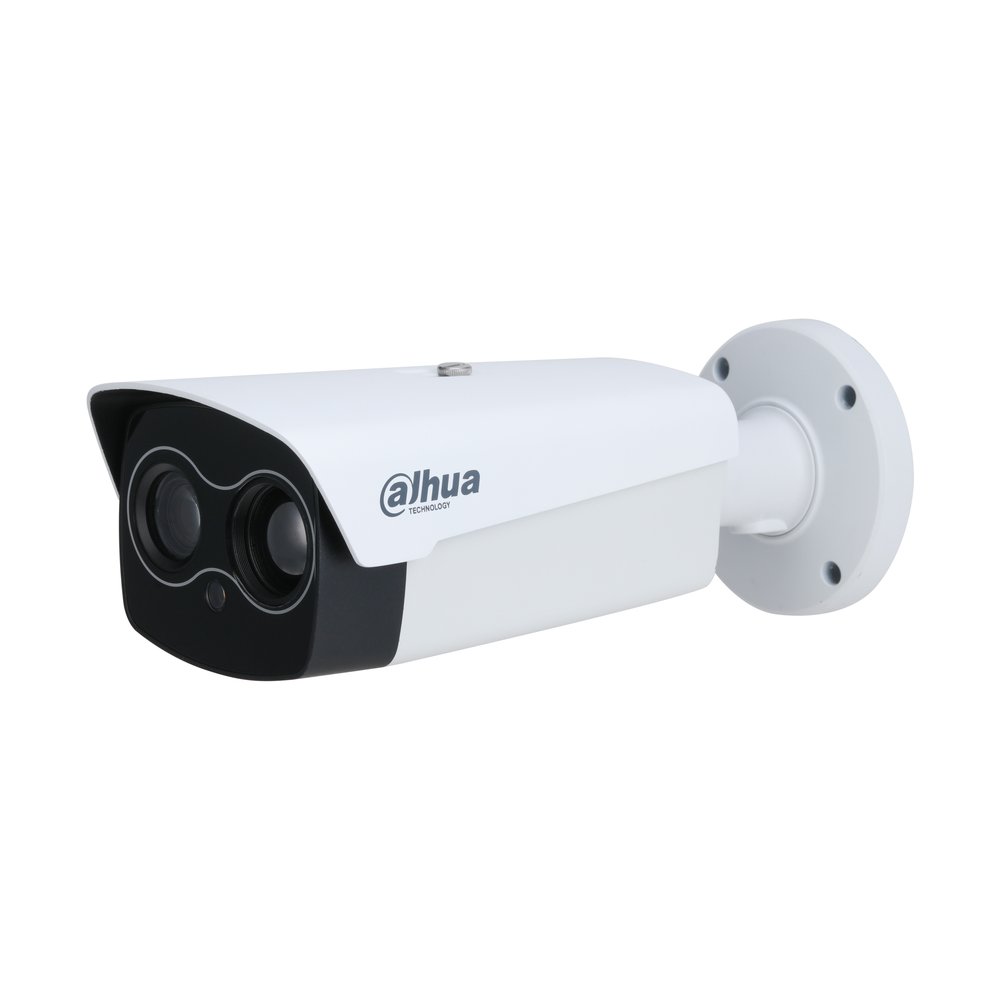

Telecamera IP Bullet ibrida termica
> Rivelatore a piano focale non raffreddato in ossido di vanadio.
> CMOS 1/1.8″ 4 Megapixel a scansione progressiva.
> Rilevamento e allarme calore, tripwire, intrusione e filtraggio target.
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 640 (H) × 512 (V) |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤35 mK (@f/1.0) 5 mm H: 90.0°; V: 70.7° : 9 mm H: 48.6°; V: 38.6° : 13 mm H: 32.0°; V: 25.7° : |
| Field of View | 19 mm H: 22.8°; V: 18.4° : 25 mm H: 17.6°; V: 14.1° : 35 mm H: 12.5°; V: 10° : |
| Thermal Focus Control | Fixed-focal 5 mm 0.8 m (6.56 ft) : 9 mm 2.2 m (13.120ft) : 13 mm 2.9 m (9.51 ft) : |
| Close Focus Distance | 19 mm 5.5 m (18.04 ft) : 25 mm 9 m (29.53 ft) : 35 mm 13 m (42.65 ft) : 5 mm: Vehicle: 641 m (2,103.10 ft); Human: 208 m (682.24 ft) 9 mm: Vehicle: 1,154 m (3,785.58 ft); Human: 375 m (1,230.00 ft) 13 mm: Vehicle: 1,667 m (5,468.07 ft); Human: 542 m (1,777.12 ft) |
| Detection Distance | ① 19 mm: Vehicle: 2,436 m (7,991.79 ft); Human: 792 m (2,597.33 ft) 25 mm: Vehicle: 3,205 m (10,515.51 ft); Human: 1,042 m (3,417.54 ft) 35 mm: Vehicle: 4,487 m (14,721.72 ft); Human: 1,458 m (4,784.56 ft) |
| Recognition Distance | ② 19 mm: Vehicle: 597 m (1,960.25 ft); Human: 204 m (667.89 ft) 25 mm: Vehicle: 786 m (2,579.28 ft); Human: 268 m (878.8 ft) 35 mm: Vehicle: 1,101 m (3,610.99 ft); Human: 375 m (1,230.31 ft) 5 mm: Vehicle: 79 m (260.38 ft); Human: 27 m (87.88 ft) 9 mm: Vehicle: 143 m (468.69 ft); Human: 48 m (157.44 ft) 13 mm: Vehicle: 206 m (677.00 ft); Human: 70 m (228.49 ft) |
| Identification Distance | ③ 19 mm: Vehicle: 302 m (989.46 ft); Human: 102 m (333.94 ft) 25 mm: Vehicle: 397 m (1,301.92 ft); Human: 134 m (439.40 ft) 35 mm: Vehicle: 556 m (1,822.69 ft); Human: 188 m (615.16 ft) |
| Digital Detail Enhancement | Yes |
| Digital Zoom | 24 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror 18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/ |
| Color Palettes | painting/pomegranate/emerald /spring/summer/ autumn/winter) Low temperature mode: –20 °C (–4 °F) to +150 °C (+302 °F) |
| Temperature Measurement | High temperature mode: |
| Range | 0 °C (+34 °F) to +550 °C (+1022 °F) Auto mode Max. (±2 °C, ±2%) |
| Temperature Measurement | Operating temperature: |
| Accuracy | –20 °C (–4 °F) to +60 °C (+140°F) Spot: 12 |
| Temperature Measurement | Line: 12 Area: 12 |
| Mode | Supports 12 rules simultaneously |
| Visible | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition | ≥1100 TVL Color: 0.01 lux |
| Min. Illumination | Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | >55 dB Auto; manual; indoor; outdoor; tracking; sodium lamp; |
| White Balance | street lamp; natural |
| Defog | |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Fixed |
| Image Flip | 180°; Mirror |
| Exposure Compensation | Yes |
| Visible Focus Control | Fixed-focal 4 mm: H: 87.0°; V: 47.3° 6 mm: H: 55.3°; V: 30.0° |
| Field of View | 12 mm: H:37.3°; V: 21.4° 10–30 mm: H: 42°–15°;V: 23°–8.4° 4 mm: 1.2 m (3.93 ft) 6 mm: 2.5 m (8.20 ft) |
| Close Focus Distance | 12 mm: 7.4 m (24.27 ft) 10–30 mm: 9 m (29.53 ft) 4 mm: F1.6 6 mm: F1.6 |
| Aperture | 12 mm: F1.7 10–30 mm: F1.7 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 80 m (262.47 ft) |
| Audio And Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B Thermal: Main stream: 1280 × 1024; 1280 × 720; 640 × 512; 1280 × 1024 (default) Sub stream: 640 × 512; 320 × 256; 640 × 512 (default) |
| Resolution | Visible: Main stream: 2688 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 720); 704 × 576; 2560 × 1440 (default) Sub stream: 704 × 576; 352 × 288; 704 × 576 (default) Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default |
| Video Frame Rate | Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression | G.711a; G.711 mu |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Local audio and white light alarm prompts IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; |
| Network Protocol | SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE |
| Region of Interest (RoI) | Yes (customizable) |
| Storage | |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE; Firefox; Chrome; Safari |
| User/Host | Up to 20 (total bandwidth: 64 MB) Authorized username and password; attached MAC |
| Security | address; encrypted HTTPS; IEEE 802.1x; controlled network access Up to 20 users; supports multi-level user permissions (2 |
| User Management | levels): management group and user group Network disconnection detection; IP conflict detection; |
| Malfunction Detection | memory card state detection; memory space detection |
| Fusion Mode | Yes. Off by default |
| PIP | Yes |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion. |
| Target Distinction | Human/Vehicle Classification |
| Target Tracking | Yes |
| Smoke Detection | Yes |
| Port | |
| Analog Output | device with a junction box) |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12 VDC ± 20%, PoE (802.3af), ePoE Basic: 5 W (12 VDC); 8.9 W (PoE) |
| Power Consumption | Max: 15 W (12 VDC); 18 W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP67 Surge protection: 6 kV |
| Reliability | Air discharge: 15 kV Contact discharge: 8 kV |
| Structure | |
| Product Dimensions | 7.16") (L × W × H) 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") |
| Packaging Dimensions | (L × W × H) |
| Net Weight | ≤2.35 kg (5.18 lb) |
| Gross Weight | ≤2.7 kg (5.95 lb) |
| Certifications | |
| Focal Length | Measurement Distance Measurement Distance (Min.) (Max.) |
| 5 mm | 1 m (3.28 ft) 3 m (9.84 ft) |
| 9 mm | 1 m (3.28 ft) 5 m (16.40 ft) |
| 13 mm | 2 m (6.56 ft) 11 m (36.09 ft) |
| 19 mm | 3 m (9.84 ft) 16 m (52.49 ft) |
| 25 mm | 4 m (13.12 ft) 21 m (68.88 ft) |
| 35 mm | 6 m (19.69 ft) 29.4 m (96.46 ft) |
| Ordering Information | |
| Type | Model Description DHI-TPC-BF5641-TB5F4 Thermal: 5 mm; DHI-TPC-BF5641-TB5F4-J Visible: 4 mm DHI-TPC-BF5641-TB9F4 Thermal: 9 mm; DHI-TPC-BF5641-TB9F4-J Visible: 4 mm DHI-TPC-BF5641-TB13F6 Thermal: 13 mm; DHI-TPC-BF5641-TB13F6-J Visible: 6 mm |
| Security | DHI-TPC-BF5641-TB19F12 Thermal: 19 mm; DHI-TPC-BF5641-TB19F12-J Visible: 12 mm DHI-TPC-BF5641-TB25F12 Thermal: 25 mm; DHI-TPC-BF5641-TB25F12-J Visible: 12 mm Thermal: 35 mm; DHI-TPC-BF5641-TB35Z3 DHI-TPC-BF5641-TB35Z3-J Visible: 10mm-30 mm PFA151 + PFA121 Corner Mount Bracket |
| Accessories | |
| (Optional) | PFA150+PFA121 Vertical Pole Mount Bracket |
| Accessories | |
| -J model) | PFA154 Vertical Pole Mount Bracket |
| Optional: | |
| PFA151 + PFA121 | PFA150 + PFA121 Junction Mount |
| Corner Mount Bracket | Vertical Pole Mount Bracket |
