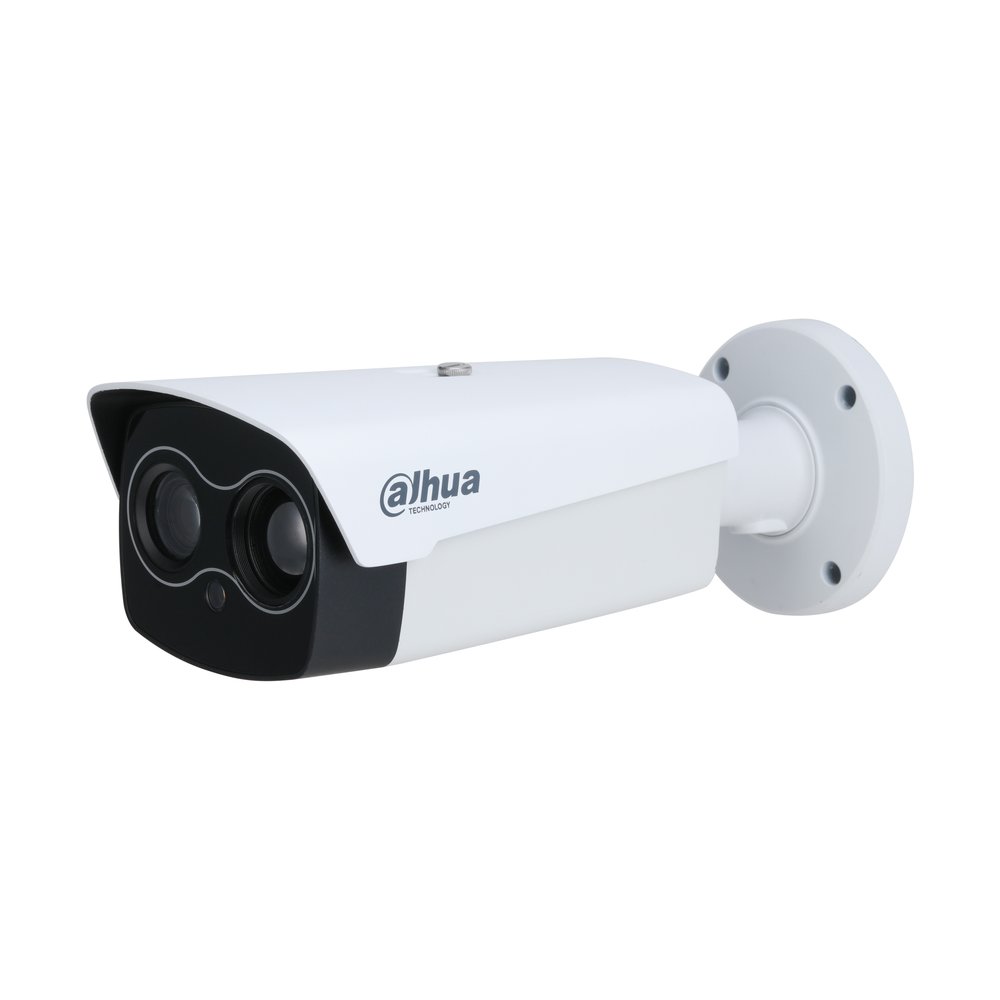

Telecamera IP Bullet ibrida termica
Codice produttore: DHI-TPC-BF5441
Datasheet
Manuali
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 400 (H) × 300 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | ≤35 mK (@f/1.0) 7.5 mm: H:53.5°; V: 39.5° 13 mm: H:30.4°; V: 22.5° |
| Field of View | 19 mm: H:20.3°; V: 15.3° 25 mm: H:15.5°; V: 11.6° 35 mm: H:11.1°; V: 8.3° |
| Thermal Focus Control | Fixed-focal 7.5 mm: 1.2 m (3.93 ft) 13 mm: 2.9 m (9.51 ft) |
| Close Focus Distance | 19 mm: 5.5 m (18.04 ft) 25 mm: 9 m (29.53 ft) 35 mm: 36 m (118.10 ft) |
| Digital Detail Enhancement | Yes |
| Digital Zoom | 19 levels |
| Thermal AGC | Auto/Manual |
| Thermal Noise Reduction | 2D NR/3D NR |
| Image Flip | 180°; Mirror |
| Color Palettes | painting/pomegranate/emerald /spring/summer/ autumn/winter) |
| Visible | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| Pixel | 4 MP |
| Horizontal Definition | ≥1100 TVL Color: 0.01 lux |
| Min. Illumination | Black & white: 0.001 lux 0 lux (white light on) |
| Visible AGC | Auto/Manual |
| Visible Noise Reduction | 2D NR/3D NR |
| S/N Ratio | >55 dB Auto; manual; indoor; outdoor; tracking; sodium lamp; |
| White Balance | street lamp; natural |
| Defog | |
| Electronic Shutter Speed | 1 s–1/30,000 s (auto/manual) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| Day/Night | Auto (ICR); Color; B/W |
| Iris Control | Fixed |
| Image Flip | 180°; Mirror |
| Exposure Compensation | Yes |
| Visible Focus Control | Fixed-focal 4 mm: H: 87.0°; V: 47.3° 6 mm: H: 55.3°; V: 30.0° |
| Field of View | 12 mm: H:37.3°; V: 21.4° 10–30 mm: H: 42°–15°;V: 23°–8.4° 4 mm: 1.2 m (3.93 ft) 6 mm: 2.5 m (8.20 ft) |
| Close Focus Distance | 12 mm: 7.4 m (24.27 ft) 10–30 mm: 9 m (29.53 ft) 4 mm: F1.6 6 mm: F1.6 |
| Aperture | 12 mm: F1.7 10–30 mm: F1.7 |
| Illuminator On/Off Control | Auto; manual |
| Illumination Distance | 80 m (262.47 ft) |
| Audio And Video | |
| Video Compression | H.265; H.264M; H.264H; H.264B Thermal: Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default) Sub stream: 640 × 512; 640 × 480; 400 × 300; |
| Resolution | 400 × 300 (default) Visible: Main stream: 2688 × 1520; 2560 × 1440; 1920 × 1080; 1280 × 720); 704 × 576; 2560 × 1440 (default) Sub stream: 704 × 576; 352 × 288; 704 × 576 (default) Thermal (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default Visible (50 Hz): Main stream: 1 fps–25 fps, 25 fps by default Sub stream: 1 fps–25 fps, 15 fps by default |
| Video Frame Rate | Thermal (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default Visible (60 Hz): Main stream: 1 fps–30 fps, 30 fps by default Sub stream: 1 fps–30 fps, 15 fps by default |
| Audio Compression | G.711a; G.711 mu |
| Image Encoding Format | JPEG |
| Function | |
| Two-way Audio | Yes |
| Sound and Light Alarm | Local audio and white light alarm prompts IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; |
| Network Protocol | SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE |
| Region of Interest (RoI) | Yes (customizable) |
| Storage | |
| Interoperability | ONVIF; CGI; DaHua SDK |
| Browser | IE; Firefox; Chrome; Safari |
| User/Host | Up to 20 (total bandwidth: 64 MB) Authorized username and password; attached MAC |
| Security | address; encrypted HTTPS; IEEE 802.1x; controlled network access Up to 20 users; supports multi-level user permissions (2 |
| User Management | levels): management group and user group Network disconnection detection; IP conflict detection; |
| Malfunction Detection | memory card state detection; memory space detection |
| Fusion Mode | Yes. Off by default |
| PIP | Yes |
| Intelligence | |
| Heat Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Perimeter Protection | Yes. Supports tripwire and intrusion. |
| Target Distinction | Human/Vehicle Classification |
| Smoke Detection | Yes |
| Port | |
| Analog Output | device with a junction box) |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Audio Input | 1 |
| Audio Output | 1 |
| RS-485 | 1 |
| Power | |
| Power Supply | 12 VDC ± 20%, PoE (802.3af), ePoE, PoE+ Basic: 5 W (12 VDC); 8.9 W (PoE) |
| Power Consumption | Max: 15 W (12 VDC); 18 W (PoE) |
| ePoE | Yes |
| Environment | |
| Operating Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Physical Characteristics | |
| Protection | IP67 Surge protection: 6 kV |
| Reliability | Air discharge: 15 kV Contact discharge: 8 kV |
| Structure | |
| Product Dimensions | 4.73") (L × W × H) 423 mm × 180 mm × 178 mm (16.65" × 7.09" × 7.01") |
| Packaging Dimensions | (L × W × H) |
| Net Weight | ≤2.35 kg (5.18 lb) |
| Gross Weight | ≤2.7 kg (5.95 lb) |
| Certifications | |
| 7.5 mm | 75 m (246.06 ft) |
| 13 mm | 128 m (419.94 ft) |
| 19 mm | 186 m (610.23 ft) |
| 25 mm | 250 m (820.20 ft) |
| 35 mm | 350 m (1148.28 ft) |
| Certifications | |
| 7.5 mm | 180 m (590.55 ft) 60 m (196.85 ft) |
| 13 mm | 312 m (1,023.62 ft) 104 m (341.21 ft) |
| 19 mm | 456 m (1,496.06 ft) 152 m (498.69 ft) |
| 25 mm | 600 m (1,968.50 ft) 200 m (656.17 ft) |
| 35 mm | 840 m (2,755.91 ft) 280 m (918.64 ft) |
| Dri Distance | |
| Focal Length | Distance Distance Distance ① ② ③ Vehicle: 676 m Vehicle: 169 m Vehicle: 85 m (2,217.85 ft); (554.46 ft); (278.87 ft); |
| 7.5 mm | Human: 221 m Human: 55 m Human: 28 m (725.07 ft) (180.45 ft) (91.86 ft) Vehicle: 1,173 m Vehicle: 293 m Vehicle: 147 m (3,848.43 ft); (961.29 ft); (482.28 ft); |
| 13 mm | Human: 382 m Human: 96 m Human: 48 m (1,253.28 ft) (314.96 ft) (157.48 ft) Vehicle: 1,714 m Vehicle: 428 m Vehicle: 214 m (5,623.36 ft); (1,404.20 ft); (702.10 ft); |
| 19 mm | Human: 559 m Human: 140 m Human: 70 m (1,833.99 ft) (314.96 ft) (229.66 ft) Vehicle: 2,255 m Vehicle: 564 m Vehicle: 282 m (7,398.29 ft); (1,850.39 ft); (925.20 ft); |
| 25 mm | Human: 735 m Human: 184 m Human: 92 m (2,411.42 ft) (603.67 ft) (301.84 ft) |
| 35 mm | Human: 1,029 m Human: 257 m Human: 129 m (3,375.98 ft) (843.18 ft) (423.23 ft) |
| Ordering Information | |
| Type | Model Description DHI-TPC-BF5441-B7F4 Thermal: 7.5 mm; DHI-TPC-BF5441-B7F4-J Visible: 4 mm DHI-TPC-BF5441-B13F6 Thermal: 13 mm; DHI-TPC-BF5441-B13F6-J Visible: 6 mm DHI-TPC-BF5441-B19F12 Thermal: 19 mm; |
| Security | DHI-TPC-BF5441-B19F12-J Visible: 12 mm DHI-TPC-BF5441-B25F12 Thermal: 25 mm; DHI-TPC-BF5441-B25F12-J Visible: 12 mm DHI-TPC-BF5441-B35Z3 Thermal: 35 mm; DHI-TPC-BF5441-B35Z3-J Visible: 10mm-30 mm PFA151 + PFA121 Corner Mount Bracket PFA121 Junction Mount |
| Accessories | |
| (Optional) | PFA150+PFA121 Vertical Pole Mount Bracket PFM320D Power Adapter |
| Accessories | |
| -J model) | PFA154 Vertical Pole Mount Bracket |
| Optional: | |
| PFA151 + PFA121 | PFA121 PFA150 + PFA121 |
| Corner Mount Bracket | Junction Mount Vertical Pole Mount Bracket |
| For Junction Box Model (-J): | |
| Vertical Pole Mount Bracket | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
