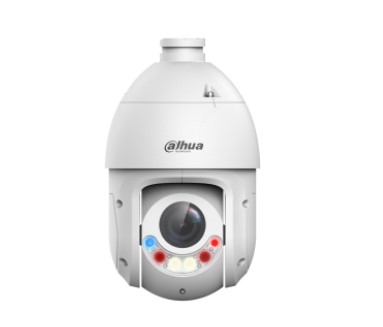

Speed dome IP AI WizSense TiOC Full-color a deterrenza attiva da interno/esterno IP66, sensore CMOS progressivo 1/2.8", risoluzione 4 MP a 25fps, rotazione PAN 360° endless / TILT -15°~90°, auto flip 180°, H.265+, ICR, zoom ottico 25x (5~125 mm F1.6~3.6), portata IR/white light fino a 100/50 m, luminosità 0.005 lux ƒ1.6, 2 ingressi e 1 uscita allarme, 1 ingresso e 1 uscita audio, allarme luminoso e sonoro, 1 porta di rete 10/100 Mbps, IVS (protezione perimetrale), face detection, SMD 4.0, auto tracking, AcuPick (con NVR AcuPick), privacy mask 24 aree, 2/3D NR, WDR 120 dB, micro SD card (512 GB), alimentazione 12 Vdc/PoE+ <13 W, staffa da parete PFB305W inclusa
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive Color: 0.005 lux@F1.6 |
| Min. Illumination | B/W: 0.0005 lux@F1.6 0 lux@F1.6 (illuminator on) 100 m (328.08 ft) (IR) |
| Illumination Distance | 50 m (164.04 ft)(White light) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off 2 (IR) |
| Illuminator Number | 2 (Dual light fusion) |
| Lens | |
| Focal Length | 5 mm–125 mm |
| Max. Aperture | F1.6–F3.6 H: 51.9°–3.0°; |
| Field of View | V: 39.7°–2.2°; D: 63.1°–3.7° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris Control | Auto; manual Detect Observe Recognize Identify 2500 m 987.5 m 500 m 250 m (8208.10 ft) (3239.83 ft) (1640.42 ft) (820.21 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: –15° to +90°, auto flip 180° Pan: 0.1°/s–200°/s |
| Manual Control Speed | Tilt: 0.1°/s–120°/s |
| Preset Speed | Pan: 240°/s; Tilt: 200°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| Intelligence | |
| IVS (Perimeter Protection) | parking detection; people gathering; vehicle/human alarm classification; linkage tracking Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and |
| Face Detection | expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one- inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Auto Tracking | Yes |
| SMD | SMD 4.0 Uses deep learning algorithms and works with back- end devices to accurately match targets, such as |
| Acupick | people and motor vehicles, and search through live and recorded videos to quickly locate targets. It triggers the IVS rule when a target is detected and |
| Auto Patrol | makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Active Deterrence | |
| Light Warning | flash for 5 to 30 seconds with a high, medium or low frequency. Offers 11 types of sound alarms, and supports |
| Sound Warning | importing custom sound alarms. |
| Video | |
| Video Compression | Stream);Smart H.264+;H.264M |
| Streaming Capability | 3 streams 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p |
| Resolution | (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/3M/1080p/1.3M/720p@ (1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/CIF/VGA@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR H264: 96 Kbps–14848 Kbps |
| Video Bit Rate | H265: 38 Kbps–8960 Kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes Auto/Indoor/Outdoor/Tracking/Manual/Sodium |
| White Balance | lamp/Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | |
| Digital Zoom | 16× |
| Image Rotation | 180° Up to 24 areas can be set, with up to 8 areas in the |
| Privacy Masking | same view; multiple colors available |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Audio Compression | G722.1; G729; G723 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; |
| Network Protocol | NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP |
| Interoperability | CGI;SDK;ONVIF (Profile S&G&T);P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DSS pro; DMSS; NVR |
| Mobile Client | iOS;Android |
| Port | |
| Audio Input | 1 channel |
| Audio Output | 1 channel Capture; recording; send email; preset; pattern; tour; |
| Alarm Linkage | alarm digital input; audio; warning light Motion/tampering detection; audio detection; network disconnection detection; IP conflict |
| Alarm Event | detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | PoE+ (802.3at) Basic: 7.0 W |
| Power Consumption | Max.: 13 W (illuminator+heater+PTZ+speaker) |
| Environment | |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Operating Humidity | ≤95% IP66; TVS 6000 V lightning proof; surge protection; |
| Protection | voltage transient protection |
| Structure | |
| Product Dimensions | 269.9 mm × Φ160.0 mm (10.59" × Φ6.30") |
| Net Weight | 2.6 kg (5.73 lb) |
| Gross Weight | 4 kg (8.82 lb) |
| Ordering Information | |
| Type | Model Description DH-SD4E425GB-HNR- 4MP 25x Starlight IR WizSense Network PTZ |
| 4MP | A-PV1 |
| Camera | |
| PTZ Camera | 4MP 25x Starlight IR WizSense Network PTZ SD4E425GB-HNR-A-PV1 |
| Optional: | |
| Power Adapter | Mount Adapter PFA151 PFB300C PFB301C Corner Mount |
| Ceiling Mount | Ceiling Mount Bracket Bracket Bracket PFA150 PFB303S PFB301S-E Pole Mount |
| Parapet Mount | Plane Mount Bracket Bracket Bracket The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
