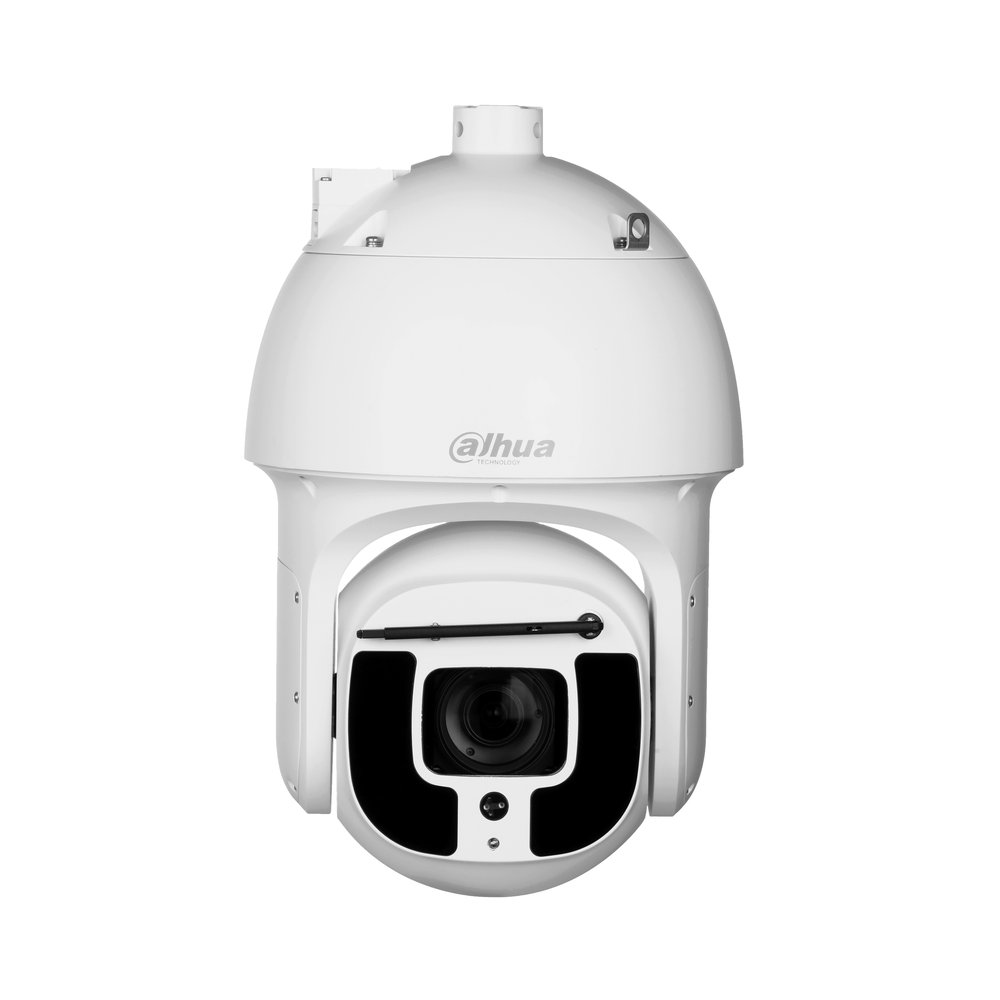

Speed dome IP AI WizMind Starlight 8" da interno/esterno IP67 per monitoraggio idrologico, sensore CMOS Starvis progressivo 1/1.8", risoluzione 8 MP a 25fps, rotazione PAN 360° endless / TILT -30°~90°, auto flip 180°, H.265+, ICR, zoom ottico 40x (5.5~220 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.005 lux ƒ1.4 (0 con IR On), portata IR fino a 250 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta BNC, 1 porta RS485, protocolli Pelco P/D e Dahua da 300 preset, 5 scan, 8 tour e 5 pattern, WDR, privacy mask 24 aree, monitoraggio livello acque, boat detection, micro SD card (256 GB), tergiottica smart, alimentazione 36 Vdc/Hi-PoE <22 W, alimentatore e staffa da parete PFB306W inclusi
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Pixel | 8 MP |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/300,000 s |
| Scanning System | Progressive Color: 0.005 lux@F1.4 |
| Min. Illumination | B/W: 0.0005 lux@F1.4 0 lux (IR on) |
| Illumination Distance | 250 m (820.21 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Off |
| Illuminator Number | 10 (IR) |
| Lens | |
| Focal Length | 5.5 mm–220 mm |
| Max. Aperture | F1.4–F4.5 |
| Field of View | H: 63.9°–2.0°; V: 37.3°–1.1°; D: 71.2°–2.3° |
| Optical Zoom | 40× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 1.5 m–8 m (4.92 ft–26.25 ft) |
| Iris Control | Auto Detect Observe Recognize Identify 4,166 m 1,666.4 m 833.2 m 416.6 m (13,667.98 ft) (5,467.19 ft) (2,733.60 ft) (1,366.80 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: –30° to +90° Pan: 0.1°/s–240°/s |
| Manual Control Speed | Tilt: 0.1°/s–100°/s |
| Preset Speed | Pan: 240°/s; Tilt: 120°/s |
| Preset | 300 |
| Tour | 8 (up to 32 preset per tour) |
| Pattern | 5 |
| Scan | 5 |
| Speed Adjustment | Yes |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour; Pattern; Scanning DH-SD |
| PTZ Protocol | Pelco-P/D (auto recognition) |
| Intelligence | |
| Hydrological Monitoring | the limits. It also detects floating debris and boats, and sends push notifications with data on the water level. |
| Video | |
| Video Compression | (Sub Stream 1) |
| Streaming Capability | 3 Streams Main stream: 4K/4M/3M/1080p/1.3M/720p (1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/CIF (1–25/30 fps) |
| Bit Rate Control | CBR; VBR |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | |
| Digital Zoom | 16x |
| Image Rotation | 180° Up to 24 areas can be set, with up to 8 areas in the |
| Privacy Masking | same view |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Audio Compression | G723; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; |
| Network Protocol | SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; TCP |
| Interoperability | ONVIF Profile S&G&T; GB/T28181; CGI |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Port | |
| Analog Output | 1 channel (CVBS output, BNC) |
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT, bare wire) |
| Alarm I/O | 7/2 |
| Two-way Audio | Yes Capture; preset; tour; pattern; recordings on SD card; |
| Alarm Linkage | alarm digital input; send email; client E–map Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; |
| Alarm Event | memory card state detection; memory space detection; illegal access |
| Power | |
| Power Supply | Hi-PoE Basic: 18 W |
| Power Consumption | Max.: 22 W (illuminator + PTZ working) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤ 95% RH IP67; TVS 8000 V lightning proof; surge protection; |
| Protection | voltage transient protection |
| Structure | |
| Casing | ADC12, PC + 20% GF |
| Product Dimensions | 415.9 mm × Φ262.0 mm (16.37" × Φ10.31") |
| Net Weight | 8.5 kg (18.74 lb) |
| Gross Weight | 13.57 kg (29.92 lb) |
| Ordering Information | |
| Type | Model Description 8MP 40x Starlight WizMind Hydrological DH-SD8A840XA-HNP-WP Monitoring Network Camera |
| Included: | |
| DC36V/2.23A | Bracket |
| Optional: | |
| PFA118 | PFB710C PFB301C |
| Mount Adapter | Bracket Bracket |
| PFA151 | PFA150 |
| Bracket | Bracket |
