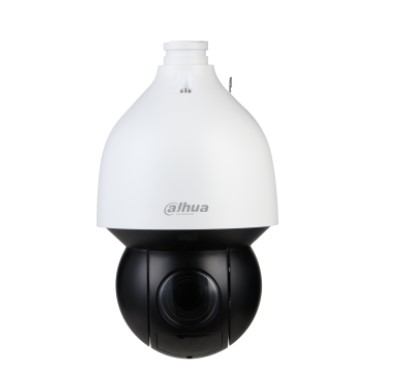

Telecamera IP PTZ WizSense IR Starlight zoom 32x 4MP
> CMOS STARVIS™ 4 Megapixel 1/2.8″.
> Potente zoom ottico 32x.
> Max. 25/30 fps@4M.
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 4 MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 4 GB |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive Color: 0.005 lux@F1.6 |
| Min. Illumination | B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
| Illumination Distance | 150 m (492.13 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR |
| Illuminator Number | 4 (IR) |
| Lens | |
| Focal Length | 4.8 mm–154 mm |
| Max. Aperture | F1.6–F4.0 |
| Field of View | H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7° |
| Optical Zoom | 32× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.8 m–5.0 m (2.62 ft–16.40 ft) |
| Iris Control | Auto; manual Detect Observe Recognize Identify 2,124 m 839 m 425 m 212 m (6,968.50 ft) (2,752.63 ft) (1,394.36 ft) (695.54 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: –15° to +90°, auto flip 180° Pan: 0.1°/s–300°/s |
| Manual Control Speed | Tilt: 0.1°/s–200°/s |
| Preset Speed | Pan: 400°/s; Tilt: 300°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan |
| Intelligence | |
| Video Metadata | snapshots, uploads high-quality face images and optimizes images. It extracts attributes from motor vehicles, detecting up to 10 attributes for them. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking |
| IVS (Perimeter Protection) | detection; people gathering; vehicle/human alarm classification Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions |
| Face Detection | are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. Supports tripwire for people counting at entrances and exits, counting the number of people staying in an area |
| People Counting | and queuing in an area, and displaying and exporting reports based on the day, week and month. |
| Auto Tracking | Yes |
| SMD | SMD 4.0 Uses deep learning algorithms and works with back- end devices to accurately match targets, such as |
| Acupick | people and motor vehicles, and search through live and recorded videos to quickly locate targets. It triggers the IVS rule when a target is detected and |
| Auto Patrol | makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
| Video | |
| Video Compression | H.264H; MJPEG (Sub Stream 1) |
| Streaming Capability | 3 streams 4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × |
| Resolution | 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/VGA/CIF (1–25/30 fps)Sub stream 2: 1080p/1.3M/720p (1–25/30 fps) |
| Bit Rate Control | CBR; VBR H264: 96 Kbps–14848 Kbps |
| Video Bit Rate | H265: 38 Kbps–8960 Kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB Auto; indoor; outdoor; ATW; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | |
| Digital Zoom | 16× |
| Image Rotation | 180° Up to 24 areas can be set, with up to 8 areas in the |
| Privacy Masking | same view |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | G729; G723 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; |
| Network Protocol | SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP; TLSv1.2; SYSLOG(REMOTE LOGS); SSL |
| Interoperability | ONVIF(Profile S&G&T);CGI;SDK |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 52 and earlier versions Safari |
| Management Software | Smart PSS; DSS; DMSS; Easy4ip; IVSS |
| Mobile Client | iOS; Android |
| Port | |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Two-way Audio | Yes Capture; preset; tour; pattern; recording; triggering |
| Alarm Linkage | on-off value output; audio; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; |
| Alarm Event | memory card state detection; memory space detection; power exception detection |
| Power | |
| Power Supply | PoE +(802.3at) Basic: 13 W |
| Power Consumption | Max: 22 W (illuminator + PTZ working + Heater + Fan) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% IP67; IK10; TVS 6000 V lightning proof; surge |
| Protection | protection; voltage transient protection |
| Structure | |
| Product Dimensions | 332 mm × Φ190 mm (13.07" × Φ7.48") |
| Net Weight | 4.7 kg (10.36 lb) |
| Gross Weight | 8 kg (17.64 lb) |
| Ordering Information | |
| Type | Model Description 4MP 32x Starlight IR WizSense Network PTZ |
| 4MP | DH-SD5A432GB-HNR |
| Camera | |
| Network PTZ | 4MP 32x Starlight IR WizSense Network PTZ |
| Included: | |
| PFB305W | DC24V/2.5A |
| Wall Mount | Power Adapter |
| Optional: | |
| PFA111 | PFA140 PFB300C |
| Mount Adapter | Power Box Ceiling Mount Bracket |
| PFB301C | PFA120 PFA150 |
| Ceiling Mount | Junction Box Pole Mount |
| Bracket | Bracket |
| PFB305W+PFA120 | PFA111+PFB300C PFA111+PFB301C Corner Mount |
| Pole | Mount(Vertical) Pole Mount(Horizontal) PFB305W+PFA150 PFB305W+PFA151 PFA111+PFB300C+PFA150 |
| Dimensions (Mm[Inch]) | |
| 331.9 [13.07] | Φ190.4 [Φ7.50] SR77.0 [SR3.03] |
