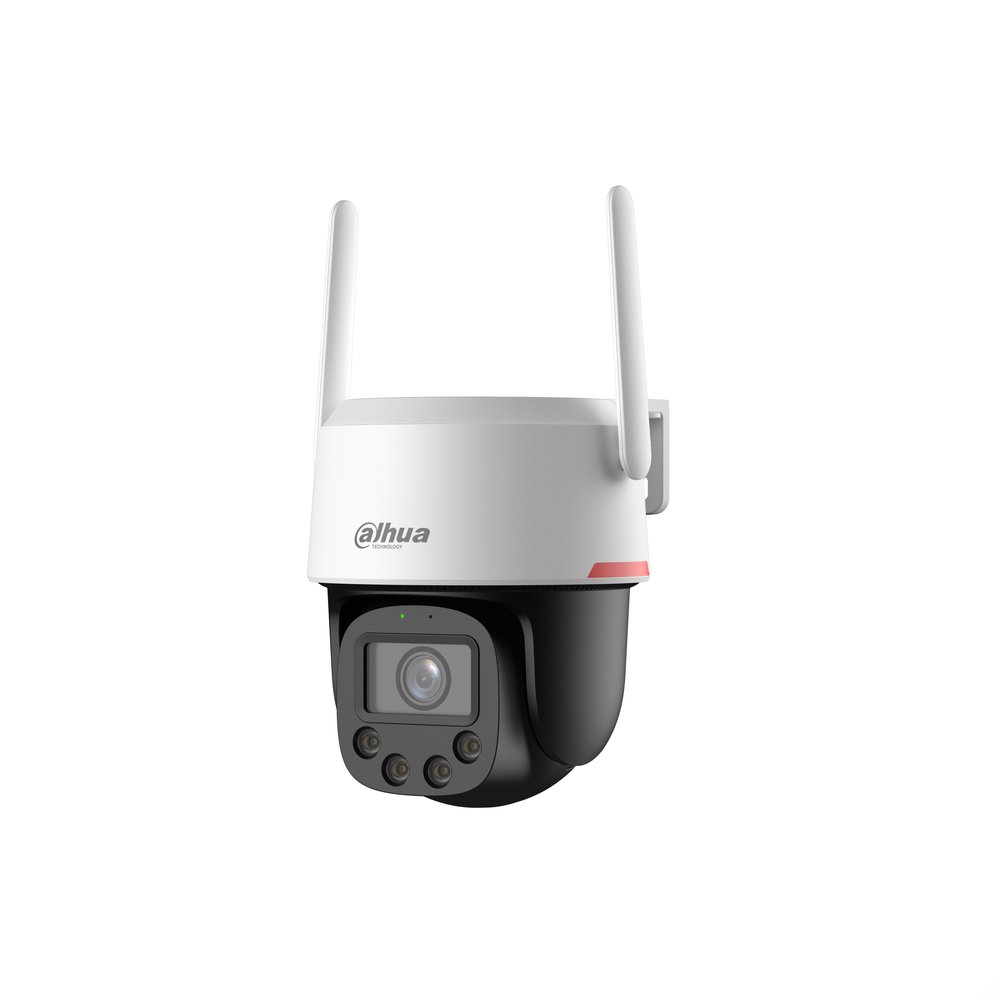

Telecamera PT IP/Wi-Fi 6 WizColor IP66 con deterrenza attiva, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 20fps, H.265+, rotazione PAN 345° / TILT 0°~90°, ottica fissa 3.6 mm ƒ1.0, luminosità 0.0005 lux ƒ1.0 (0 con illuminazione On), portata warm light fino a 30 m, 1 porta RJ-45 (10/100 Mbps), microfono e speaker integrati, AI human/vehicle detection, auto tracking, motion detection, slot micro SD card (fino a 512 GB), alimentazione 12 Vdc <9 W, alimentatore incluso
Datasheet
| Ai-Isp | |
| 4K Ultra HD, Beyond Sharpness | Provides a more vibrant, brighter image under low light conditions |
| Ai Human Detection | |
| Automatic tracking of targets | Focuses on what matters and reduces false alarms |
| Preset Patrol | |
| 360° monitoring without blind spots | Guards the places that matter to you regularly |
| Supports Micro Sd Card | |
| Advanced H.265 compression | Low-cost storage |
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Electronic Shutter Speed | 1 s–1/100,000 s 0.0005 lux@F1.0 (Color, 30 IRE); |
| Min. Illumination | 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 4 (Warm light) |
| Lens | |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 82.9°; V: 47.3°; D: 93.4° |
| Ptz | |
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: 0° to 90° |
| Smart Event | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Video | |
| Video Compression | H.265; H.264B; MJPEG(Sub Stream 1) Main stream: 8M/3M/720p@(1–15 fps) |
| Video Frame Rate | Sub stream 1: 640 × 360/QVGA@(1–15 fps) |
| Day/Night | Color/B/W |
| WDR | 120 dB |
| Motion Detection | Yes |
| Image Rotation | 180° |
| Audio | |
| Audio Compression | PCM, G.711A, G.711Mu |
| Built-in MIC | Yes Tools: Documents: Power: Installation Position QR Code × 1 Power Adapter × 1 Map × 1 Quick Start Guide × 1 Screw Package × 1 Legal and regulation Mounting Plate × 1 information × 1 Waterproof Connector Certification × 1 x 1 Wireless Frequency Band Paper × 1 (Only for -EUR) Warranty Card × 1 (Only for -EUR) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Built-in Speaker | Yes |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) IEEE802.11g;IEEE802.11b; IEEE802.11n; |
| Wi-Fi Standard | IEEE802.11ax |
| Wi-Fi Frequency Range | 2.4 GHz |
| Wi-Fi Transmission Rate | 229 Mbps |
| Wi-Fi Pairing | Bluetooth pairing |
| Max. Transmission Power | ≤20 dBm@2,400–2,483.5 MHz |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); SDK; CGI |
| Storage | |
| Management Software | NVR;DMSS |
| Mobile Client | Android;iOS |
| Function | |
| Abnormal Sound Alarm | Yes |
| Power | |
| Power Supply | 12 VDC, 1 A ± 10% Basic: 3 W |
| Power Consumption | Max. (Basic power consumption + WDR + Light on + PTZ operation): 9 W |
| Environment | |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤95% IP66; TVS 2000 V lightning proof; surge protection; |
| Protection | voltage transient protection |
| Structure | |
| Product Dimensions | 153.5 mm × Φ129.3 mm (6.04" × Φ5.09") |
| Net Weight | 0.60 kg (1.32 lb) |
