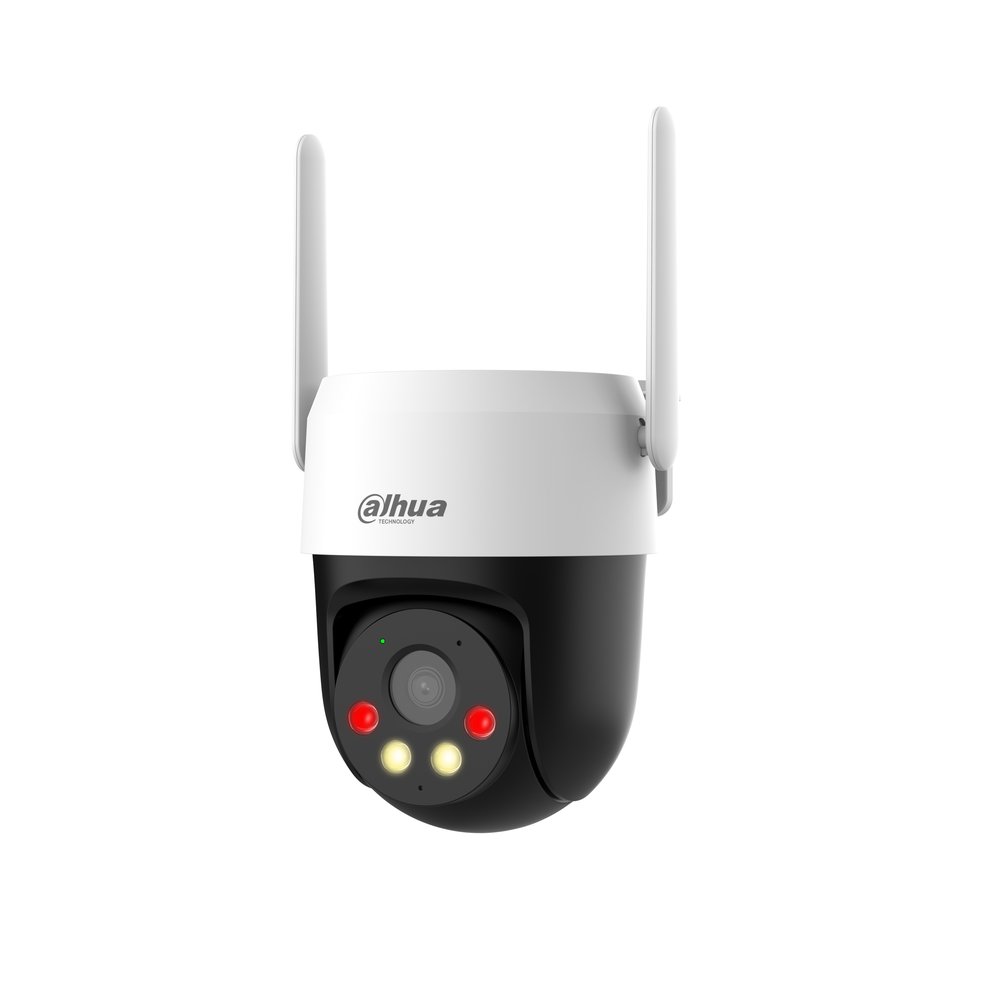

Telecamera PT 4G Smart Dual Light a deterrenza attiva da interno/esterno IP66, sensore CMOS progressivo 1/2.8", risoluzione 3 MP a 25fps, H.265+, rotazione PAN 345° / TILT 0°~90°, ICR, ottica fissa 4 mm F1.6, portata IR/white light 30 m, connessione 4G, microfono e speaker integrati, allarme luminoso e sonoro, IVS, SMD 3.0, human/vehicle detection, auto-tracking, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc <9 W, alimentatore incluso
| 4G Connection | |
| Clear images with sharp details | Expands your connectivity with 4G |
| Ai Vehicle Detection | |
| Focuses on what matters and | Focuses on what matters and |
| reduces false alarms | reduces false alarms |
| Two-Way Talk | |
| Provides instant alarms to deter | Communication anytime, anywhere |
| H.265 | |
| Withstands harsh environments | Advanced H.265 compression technology |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) |
| Illumination Distance | 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR) |
| Electronic Shutter Speed | 1/25 s–1/100,000 s |
| Illuminator Number | 2 (IR light); 2 (warm light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 73.85°; V: 43.43°; D: 86.56° |
| Iris Control | Fixed |
| Ptz | |
| Pan/Tilt Range | Tilt: 0° to +90° |
| Smart Event | |
| IVS | Tripwire and intrusion |
| Human Detection | Human detection; Auto-tracking |
| Vehicle Detection | Yes |
| Intelligence | |
| SMD | SMD 3.0 |
| Video | |
| Video Compression | H.264H;MJPEG(Sub Stream 1) Main stream: 3M/720p/640 × 360@ (1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/VGA/CIF@(1–25/30 fps) H264: 64–8,192 kbps |
| Video Bit Rate | H265: 25–6,400 kbps |
| Day/Night | Auto (ICR); Color/B/W Tools: Documents: Power: Installation Position QR Code × 1 Power Adapter × 1 Map × 1 Quick Start Guide × 1 Screw Package × 1 Legal and regulation Mounting Plate × 1 information × 1 Waterproof Connector Certification × 1 × 1 Wireless Frequency Band Paper × 1 (-EUR model only) Warranty Card × 1 (-EUR model only) The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| WDR | DWDR |
| Motion Detection | Yes |
| Image Rotation | 180° |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726 |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Network | |
| Wireless Carrier Frequency Band | LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 |
| Max. Transmission Power | 4G: Power class3:23 dBm ± 2 dB |
| Storage | |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Certifications | |
| Power Supply | 12 VDC, 1 A ± 10% Basic: 3W |
| Power Consumption | Max: 9 W (illuminator + PTZ) |
| Power Adapter | Included |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤95% TVS 2000 V lightning proof; surge protection; voltage |
| Protection | transient protection;Waterproof and Dustproof |
| Camera Button | Reset button |
| Casing Material | Plastic |
| Product Dimensions | 140.5 mm × Φ111.0 mm (5.53" × Φ4.37") |
| Net Weight | 0.5 kg (1.10 lb) |
