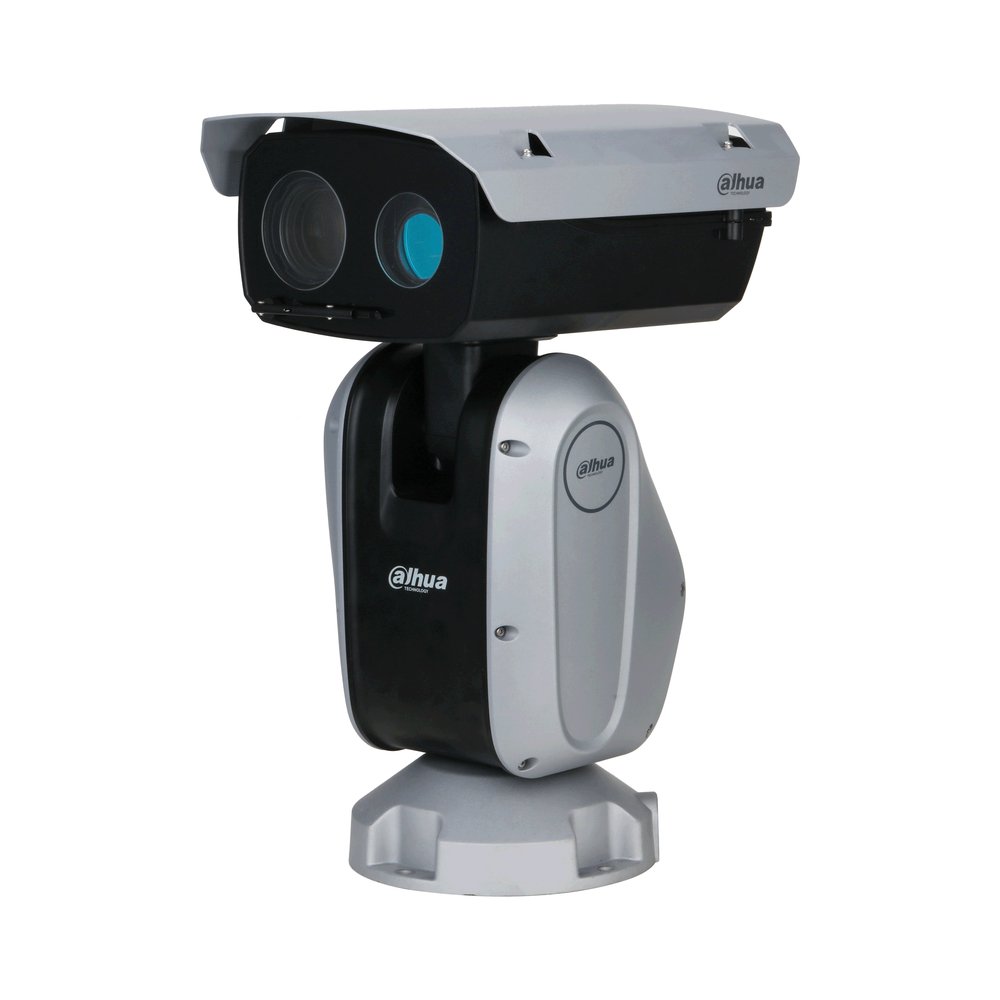

Positioning system IP AI WizMind Starlight da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 8 MP a 25fps, rotazione PAN 360° endless / TILT -45°~90°, H.265+, ICR, zoom ottico 48x (6.25~300 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.005 lux ƒ1.4, portata laser fino a 1000 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 5 scan, 8 tour e 5 pattern, 2/3D NR, WDR 120 dB, privacy mask 24 aree, IVS (protezione perimetrale), metadati, face detection, auto tracking, PFA, micro SD card (512 GB), alimentazione 36 Vdc <69 W, alimentatore incluso
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/1.8" CMOS 8 MP |
| Pixel | 3840 (H) × 2160 (V) |
| ROM | 8 GB |
| RAM | 2 GB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive Color: 0.005 lux@F1.4 |
| Min. Illumination | B/W: 0.0005 lux@F1.4 0 lux (laser on) |
| Illumination Distance | 1,000 m (3,280.84 ft) |
| Illuminator On/Off Control | Zoom Prio; Manual; Off |
| Illuminator Number | 1 (laser) |
| Lens | |
| Focal Length | 6.25 mm–300 mm |
| Max. Aperture | F1.4–F4.5 |
| Field of View | H: 64.9°–1.8°; V: 38°–1.3°; D: 71.3°–1.9° |
| Optical Zoom | 48× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.5 m–2 m (1.64 ft–6.56 ft) |
| Iris Control | Auto; manual Detect Observe Recognize Identify 6,000 m 2,381 m 1,200 m 600 m (19,685.04 ft) (7,811.68 ft) (3,937.01 ft) (1,968.50 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: –45° to +90° |
| Manual Control Speed | Tilt: 0.1°/s–60°/s |
| Preset Speed | Pan: 160°/s; Tilt: 60°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan DH-SD |
| PTZ Protocol | Pelco-P/D (auto recogniton) |
| Intelligence | |
| Video Metadata | and non-motor vehicle image capture and attributes extraction. Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking |
| IVS (Perimeter Protection) | detection; people gathering; vehicle/human alarm classification. |
| Face Recognition | Yes |
| Video | |
| Video Compression | H.264 |
| Streaming Capability | 3 streams 8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 |
| Resolution | × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps) |
| Video Frame Rate | Sub stream 1: D1/VGA/CIF (1–25/30 fps) Sub stream 2: 1080p/960p/720p (1–25/30 fps) |
| Bit Rate Control | CBR; VBR H.264: 3328–16384 kbps |
| Video Bit Rate | H.265: 1280–9984 kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes Auto; indoor; outdoor; tracking; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | |
| Digital Zoom | 16× |
| Image Rotation | 180° Up to 24 areas can be set, with up to 8 areas in the same |
| Privacy Masking | view |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; |
| Network Protocol | DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP |
| Interoperability | ONVIF (Profle S&G&T); GB/T28181; CGI |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 52ESR and earlier versions Safari |
| Management Software | Smart PSS; DSS; IVSS |
| Mobile Client | iOS; Android |
| Port | |
| Analog Output | 1 channel (CVBS output, BNC) |
| RS-485 | 1 (baud rate: 1200 bps–115200 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT, bare wire) |
| Two-way Audio | Yes |
| Alarm Input | 7 (on-off value input: 0–5 VDC) |
| Alarm Output | 2 Capture; preset; tour; pattern; recordings on SD card; |
| Alarm Linkage | alarm digital input; client E-map; send email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder |
| Alarm Event | state detection; memory card state detection; memory space detection; power exception detection 100 M single fiber FC |
| Optical Fiber | Specifications: 1310 nm TX/1550 nm RX Transmission distance: 20 km (12.43 mi) |
| Power | |
| Power Supply | 36 VDC, 5 A (± 25%) Basic: 22 W |
| Power Consumption | Max.: 63 W (illuminator + wiper + PTZ) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Operating Humidity | ≤95% IP67; TVS 6000 V lightning proof; surge protection; |
| Protection | voltage transient protection |
| Structure | |
| Casing | ADC12 344.6 mm × 252.2 mm × 499.8 mm (13.57" × 9.93" × |
| Product Dimensions | 19.68") (L × W × H) |
| Net Weight | 15.4 kg (33.95 lb) |
| Gross Weight | 23.7 kg (52.25 lb) |
| Ordering Information | |
| Type | Part Number Description DH-PTZ85848-HNF- 8MP 48x Starlight Laser AI Network PA-FL Positioning System |
| 8M Camera | 8MP 48x Starlight Laser AI Network PTZ85848-HNF-PA-FL Positioning System DC36V/5A Power Adapter |
| Optional: | |
| Wall Mount | Bracket |
