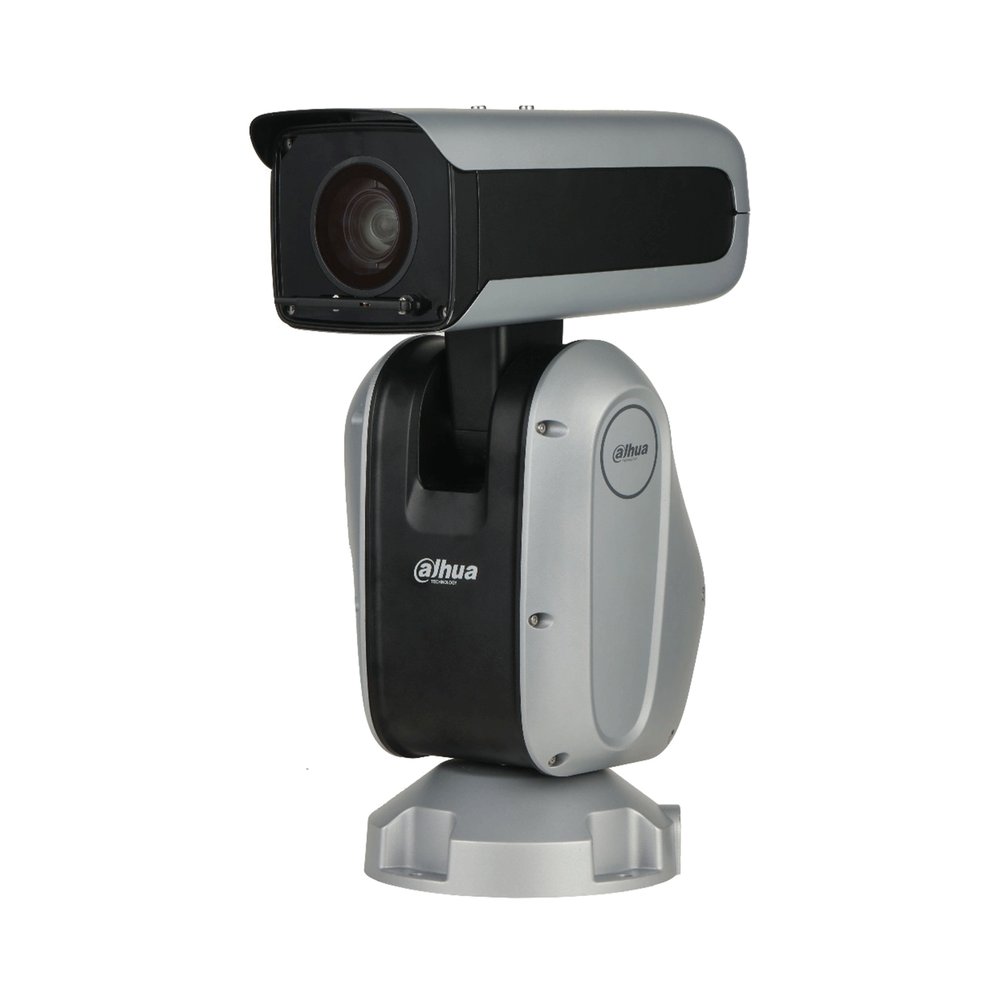

Positioning system IP AI WizMind Starlight+ da interno/esterno IP67, sensore CMOS progressivo 1/1.8", risoluzione 4 MP a 25fps, rotazione PAN 360° endless / TILT -45°~90°, H.265+, ICR, zoom ottico 40x (5.5~220 mm ƒ1.4~4.5) / 16x digitale, luminosità 0.001 lux ƒ1.4, portata IR fino a 350 m, 1 porta LAN 10/100 Mbps, 7 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 5 scan, 8 tour e 5 pattern, 2/3D NR, WDR 120 dB, privacy mask 24 aree, metadati video, IVS (protezione perimetrale), auto tracking, face recognition, PFA, micro SD card (256 GB), alimentazione 36 Vdc <60 W, alimentatore incluso
| Camera | |
| Image Sensor | 1/1.8" CMOS |
| Pixel | 4MP |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 8 GB |
| RAM | 2 GB |
| Electronic Shutter Speed | 1/1–1/30,000 s |
| Scanning System | Progressive Color: 0.001 Lux@F1.4 |
| Min. Illumination | B/W: 0.0001 Lux@F1.4 0 Lux (IR light on) |
| Illumination Distance | 350 m (1148.29 ft) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off |
| Illuminator Number | 10 (IR light) |
| Lens | |
| Focal Length | 5.5 mm–220 mm |
| Max. Aperture | F1.4–F4.5 H: 61.8°–2.2° |
| Field of View | V: 36.3°–1.3° D: 69.2°–2.4° |
| Optical Zoom | 40× |
| Focus Control | Auto; Semi-Auto; Manual |
| Close Focus Distance | 0.5 m–2.0 m (1.64 ft–6.56 ft) |
| Iris Control | Auto Detect Observe Recognize Identify 3034.5 m 1204.2 m 606.9 m 303.4 m (9955.71 ft) (3950.79 ft) (1991.14 ft) (995.41 ft) *DORI (Detect, Observe, Recognize, Identify) is a |
| DORI Distance | standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: –45° to +90° Pan: 0.1°–160°/s |
| Manual Control Speed | Tilt: 0.1°–60°/s Pan: 160°/s |
| Preset Speed | Tilt: 60°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset; Pattern; Tour; Scan |
| Intelligence | |
| Video Metadata | and non-motor vehicle image capture and attributes extraction. Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering |
| IVS (Perimeter Protection) | false alarms caused by animals, rustling leaves, bright lights, etc. |
| Face Recognition | Yes |
| Auto Tracking | Yes |
| Video | |
| Compression | H.265+; Smart H.264+ |
| Streaming Capability | 3 streams 4 M (2560 × 1440); 1080p (1920 × 1080); 1.3 M (1280 |
| Resolution | × 960); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) Main stream: 4 M/1080p/1.3 M/720p (1–50/60 fps) |
| Video Frame Rate | Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080p/1.3 M/720p (1–25/30 fps) |
| Bit Rate Control | CBR; VBR Default resolution of the main stream: |
| Bit Rate | H264: 512–13056 Kbps H265: 204–7936 Kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes Auto; Indoor; Outdoor; Tracking; Manual; Sodium |
| White Balance | lamp; Natural light; Street lamp |
| Gain Control | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Digital Zoom | 16× |
| Image Rotation | 180° Up to 24 areas can be set, with up to 8 areas in the |
| Privacy Masking | same view. |
| S/N Ratio | ≥ 55 dB |
| Audio | |
| Compression | Layer2; G723 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; |
| Protocol | |
| Interoperability | ONVIF (Profile S&G&T); CGI |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 52ESR and earlier Safari Smart PSS |
| Management Software | DSS IVSS |
| Mobile Client | IOS/Android |
| Port | |
| Analog Output | 1 channel (CVBS output, BNC) |
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT, bare wire) |
| Two-way Audio | Yes |
| Alarm Input | 7 (on-off value input: 0–5V DC) |
| Alarm Output | 2 Capture; preset; tour; pattern; SD card recording; |
| Alarm Linkage | triggering on-off value output; client electric map; sending email Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; |
| Alarm Event | encoder state detection; memory card state detection; memory space detection; power exception detection |
| Power | |
| Power Supply | 36 V DC, 5A ± 25% Basic: 19 W |
| Power Consumption | Max.: 60 W (working PTZ, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Operating Humidity | ≤ 95% |
| Protection | IP67; TVS 6000V lightning proof; surge protection |
| Casing | ADC12 366.5 mm × 210.7 mm × 498.7 mm (14.43" × 8.30" × |
| Product Dimensions | 19.63") (L × W × H) |
| Net Weight | 14 kg (30.86 lb) |
| Gross Weight | 18.5 kg (40.79 lb) |
| Ordering Information | |
| Type | Model Description 4MP 40x Starlight IR AI Network Positioning DH-PTZ83440-HNF-PA |
| System | |
| 4M Camera | 4MP 40x Starlight IR AI Network Positioning DH-PTZ83440N-HNF-PA |
| Optional: | |
| 36V DC/5A | PFB741W |
| Power Adapter | Wall Mount |
