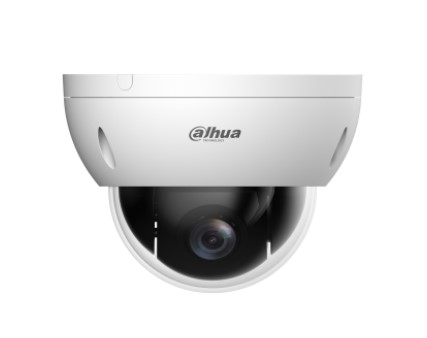

Mini speed dome IP AI WizSense Starlight da interno/esterno IP66 antivandalo IK10, sensore CMOS Starvis progressivo 1/2.8", risoluzione 2 MP a 25fps, rotazione PAN 355° / TILT 0°~90°, H.265+, ICR, zoom ottico 4x (2.8~12 mm ƒ1.6~3.0) / 16x digitale, luminosità 0.005 lux ƒ1.6, 1 porta LAN 100 Mbps, 300 preset, 8 tour, 2/3D NR, IVS (protezione perimetrale), face detection, SMD, slot micro SD card (fino a 512 GB), alimentazione 12 Vdc <6.1 W
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive Color: 0.005 lux@F1.6 |
| Min. Illumination | B/W: 0.0005 lux@F1.6 |
| Lens | |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.6–F3.0 |
| Field of View | H: 99.1°–31.9°; V: 53.4°–18.0°; D: 117.7°–36.6° |
| Optical Zoom | 4× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 1.5 m (4.92 ft) |
| Iris Control | Fixed Detect Observe Recognize Identify 165.5 m 65.4 m 33.1 m 16.6 m (542.98 ft) (214.57 ft) (108.60 ft) (54.46 ft) |
| DORI Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Ptz | |
| Pan/Tilt Range | Tilt: 0° to +90° Pan: 0.1°/s–100°/s |
| Manual Control Speed | Tilt: 0.1°/s–60°/s |
| Preset Speed | Pan: 100°/s; Tilt: 60°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Idle Motion | Pattern; Preset; Tour |
| PTZ Protocol | SD Pelco-P/D(Auto recognition) |
| PTZ Locked | Yes |
| Intelligence | |
| IVS (Perimeter Protection) | parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. |
| SMD | Yes |
| Video | |
| Video Compression | MJPEG(Sub Stream); Smart H.264+ |
| Streaming Capability | 3 streams 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × |
| Resolution | 720); D1 (704 × 576); CIF (352 × 288); VGA (640 × 480) Main stream: 1080p/1.3M/720p@(1–25/30 fps) Sub |
| Video Frame Rate | stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR H.264: 2048 kbps–8192 kbps |
| Video Bit Rate | H.265: 768 kbps–6400 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes Auto; indoor; outdoor; ATW; manual; sodium lamp; |
| White Balance | natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Yes |
| Defog | |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | ≥ 55 dB Up to 24 areas can be set, with up to 8 areas in the |
| Privacy Mask | same view; 8 colors available |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; Qos; FTP; UPnP; |
| Network Protocol | ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SAMBA; NFS |
| Interoperability | ONVIF(Profile S&G&T); P2P; CGI; SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | |
| Browser | Firefox 50 and later versions iOS 10 and later versions. |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
| Port | |
| Alarm Linkage | alarm digital input; send email Motion/Tampering detection; network disconnection detection; IP conflict detection; memory card state |
| Alarm Event | detection; memory space detection; power exception detection |
| Power | |
| Power Supply | POE (802.3af) Basic: 2.3 W |
| Power Consumption | Max.: 6.1 W |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | ≤ 95% |
| Protection | IP66, IK10 |
| Structure | |
| Product Dimensions | 89 mm × Φ122 mm (3.50" × Φ4.80") |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 0.7 kg (1.54 lb) |
| Ordering Information | |
| Type | Model Description 2MP 4x Starlight WizSense Network PTZ DH-SD22204DB-GNY |
| Accessories | |
| Optional | PFB220C Ceiling Mount Bracket PFM321D 12 VDC 1A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card |
| Optional: | |
| PFA137 | PFB203W Pole Mount |
| Junction Box | Wall Mount Bracket Bracket |
| PFA106 | PFB200C PFB220C |
| Mount Adapter | In-ceiling Ceiling Mount Bracket Mount Bracket |
| PFM321D | TF-P100 PFM900-E |
| 12 VDC 1A Power | MicroSD Memory Integrated Mount |
