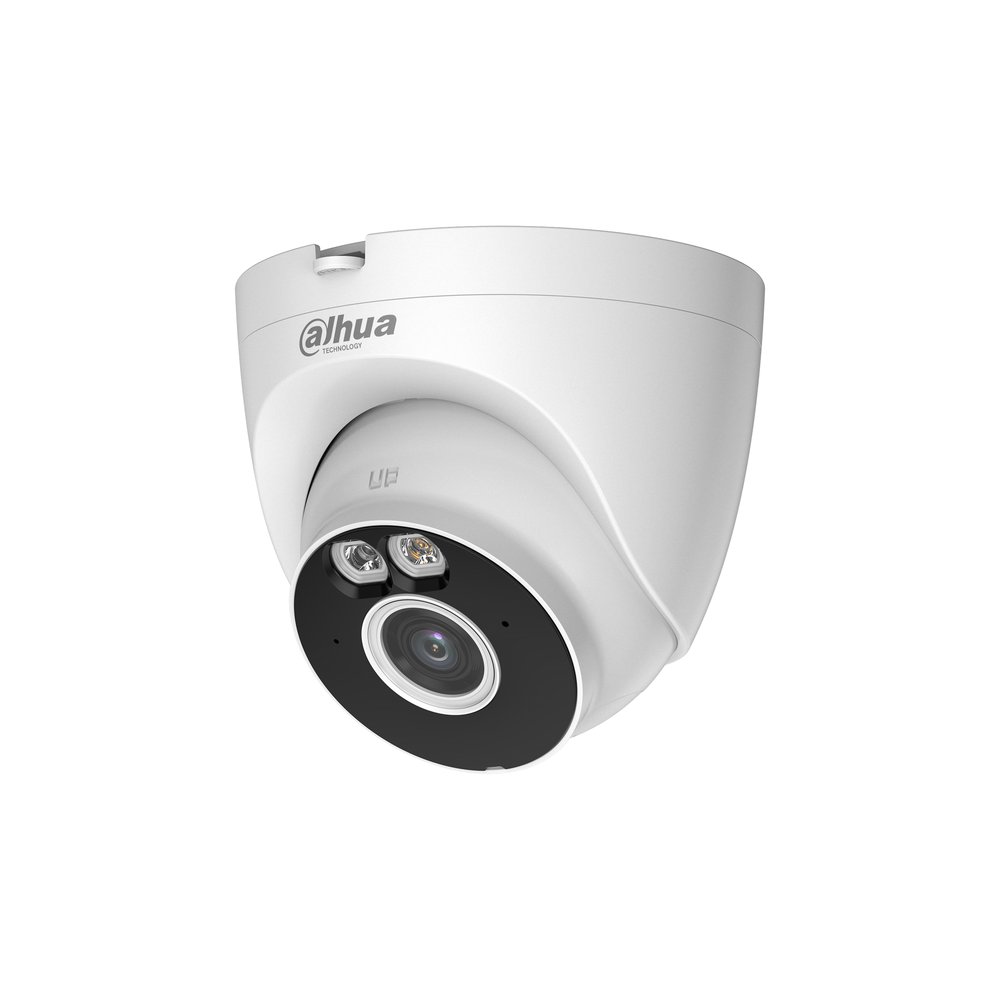

Telecamera eyeball IP/Wi-Fi Smart Dual Light da interno/esterno IP67, sensore CMOS progressivo 1/2.8", risoluzione 3 MP a 25fps, H.265, ICR, ottica fissa 2.8 mm F1.6, luminosità 0.005 lux F1.6, portata IR/white light fino a 30 m, 1 porta RJ-45 10/100 Mbps, connessione Wi-Fi 6 2.4 G, microfono integrato, AI human/vehicle detection, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc <5.1 W, alimentatore incluso, case in metallo + plastica
Datasheet
Disegni
| Ai Human Detection | |
| Clear images with sharp details | Focuses on what matters and reduces false alarms |
| Smart Dual Light | |
| Provides traceable audio details | Captures color details for post-event review |
| H.265 | |
| Seamless integration of speed and | Advanced H.265 compression |
| anti-interference | technology |
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) 0.005 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) Up to 30 m (98.43 ft) (IR) |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator Number | 1 (IR LED); 1 (Warm light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–78° Rotation: 0°–360° |
| Lens Type | Fixed-focal |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: H: 103°; V: 55°; D: 123° |
| Field of View | 3.6 mm: H: 85°; V: 46°; D: 100° |
| Intelligence | |
| Human Detection | Yes |
| Vehicle Detection | Yes |
| Audio And Video | |
| Video Compression | supported by sub stream) Main stream: 2304 × 1296@(1–25/30 fps) sub stream: 640 × 360@(1–25/30 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. H.264: 32 kbps–6144 kbps |
| Video Bit Rate | H.265: 32 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| WDR | DWDR |
| Image Rotation | 0°/180° Tools: Documents: Power: Position Map × 1 QR Code × 1 Power Adapter × 1 Screw Package × 1 Quick Start Guide × 1 Waterproof Connector Legal and regulation × 1 information × 1 Mounting Plate × 1 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, |
| Wi-Fi | EIRP≤20 dBm |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| Wi-Fi Pairing | Bluetooth pairing |
| Storage | |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Certifications | |
| Power Supply | 12 VDC Basic: 1.9 W (12 VDC); |
| Power Consumption | Max.: 4.9 W (12 VDC) (H.265 + warm light on) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Camera Button | Reset button |
| Casing Material | Metal + plastic |
| Product Dimensions | 102.2 mm × Φ109.9 mm (4.02" × Φ4.33") |
| Net Weight | 0.32 kg (0.71 lb) |
