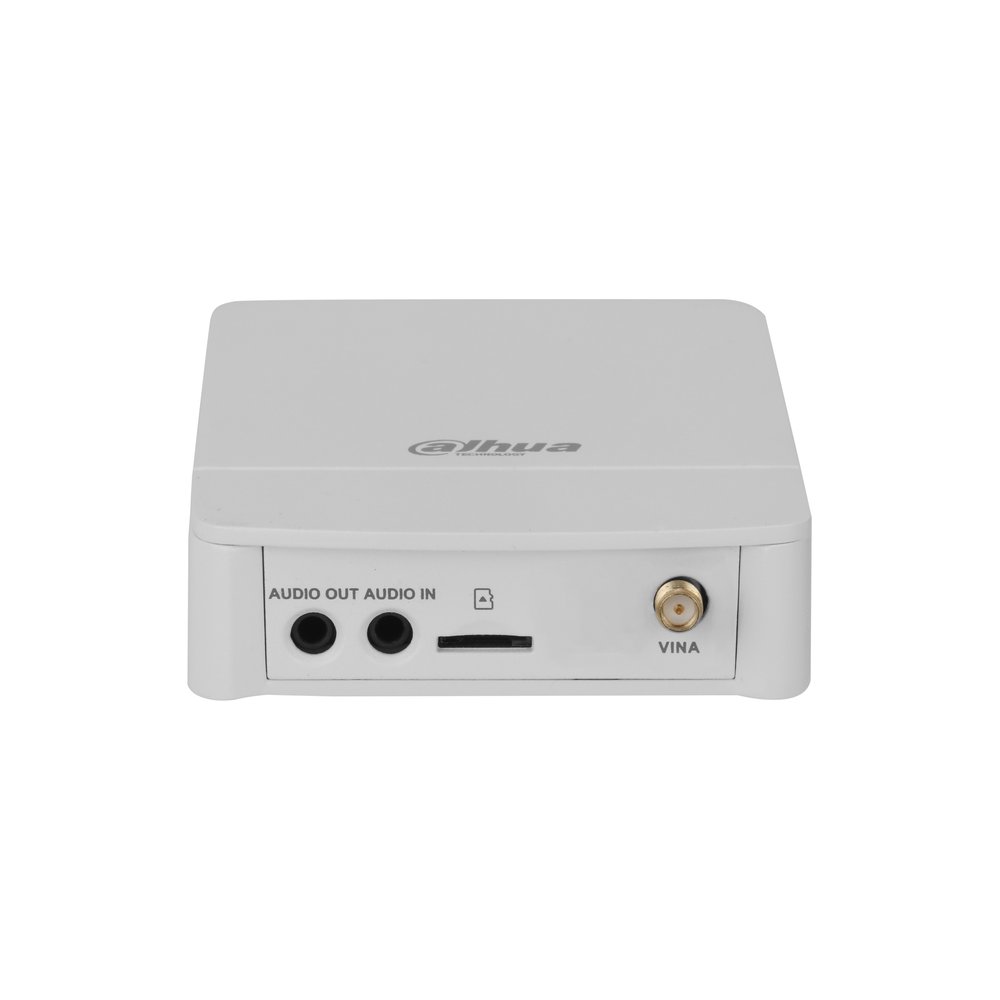

Encoder IP AI WizMind Starlight, risoluzione 4 MP a 50fps, AI H.265, 2 ingressi e 2 uscite allarme, 1 ingresso e 1 uscita audio, 1 porta RJ-45 10/100 Mbps, privacy mask 4 aree, 3D NR, IVS (protezione perimetrale), Smart Object Detection, AcuPick, face detection, people counting, privacy protection, smart search, WDR 120 dB, slot micro SD card (max. 512 GB), alimentazione 12 Vdc/PoE <8.6 W
Datasheet
Manuali
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.005 lux@F2.0 (Color, 30 IRE) |
| Min. Illumination | 0.0005 lux@F2.0 (B/W, 30 IRE) |
| S/N Ratio | >56 dB |
| Intelligence | |
| IVS (Perimeter Protection) | of vehicle and human); loitering detection, people gathering, and parking detection. |
| Smart Object Detection | Smart abandoned object; smart missing object Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, |
| AcuPick | animal and motor vehicles, and search through live and recorded videos to quickly locate targets. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face exposure; face attributes extraction including 6 attributes and 8 |
| Face Detection | expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. Tripwire people counting and people counting in area; generating and exporting report (day/month/year); |
| People Counting | queue management; 4 rules can be set for tripwire, people counting in area and queue management. Mosaics can be automatically placed over the face or |
| Privacy Protection | body of a person to protect their privacy Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by sub stream) |
| AI Coding | AI H.265; AI H.264 Main stream: 2688 × 1520@(1–50/60 fps) sub stream: 1920 × 1080@(1–25/30 fps) third stream: 1920 × 1080@(1–25/30 fps) |
| Video Frame Rate | *High frame rate of main stream is supported under monitoring mode only Note: AI/WDR cannot be enabled at the same time as high frame rate. |
| Streaming Capability | 3 streams 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × |
| Resolution | 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR;ABR |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; people counting; people number error detection; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; |
| Network Protocol | NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour; Auto Registration ONVIF (Profile S & Profile G & Profile T); CGI; P2P; |
| Interoperability | Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS; DoLynk Care |
| Mobile Client | iOS;Android Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 |
| Security | certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Port | |
| Audio Input | 1 channel (3.5mm JACK port) |
| Audio Output | 1 channel (3.5mm JACK port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC 2 channels out: dry contact, 1,000 mA 30 VDC/500 mA |
| Alarm Output | 50 VAC |
| Power | |
| Power Supply | 12 VDC; PoE (802.3af) When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 4.8 W (12 VDC); 6 W (PoE); |
| Power Consumption | Max.: 6.7 W (12 VDC); 8.6 W (PoE) (High frame rate + Intelligence on + WDR) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH) , non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH) , non-condensing |
| Structure | |
| Casing Material | Metal 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") (L × |
| Product Dimensions | W × H) |
| Net Weight | 210 g (0.46 lb) |
| Gross Weight | 646 g (1.42 lb) |
| Ordering Information | |
| Type | Model Description 4MP Covert Pinhole |
| IP CAMERA | DH-IPC-HUM8441E-E1 WizMind Network Camera- Main Box DH-PFM321-EN DC12V1A power adapter DH-PFM320D-EN DC12V2A power adapter |
| Accessories (Optional) | PFM900-E Integrated Mount Tester DHI-TF-P100/512GB MicroSD Card 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
| Accessories | |
| Optional: | DH-PFM321-EN DHI-TF-P100/512GB |
| DC12V2A power adapter | DC12V1A power adapter MicroSD Card |
