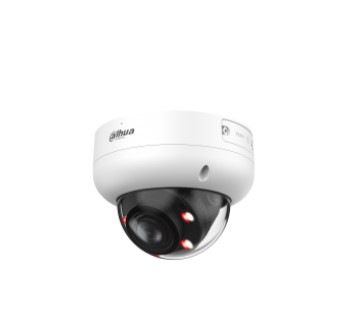

Telecamera dome IP AI WizSense Smart Dual Light da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/2.9", risoluzione 4 MP a 25fps, AI coding, H.265+, ICR, ottica motorizzata 2.7~13.5 mm F1.4, luminosità 0.005 lux ƒ1.4, portata IR/warm light fino a 50 m, microfono integrato, 1 porta di rete 10/100 Mbps, IVS (protezione perimetrale), SMD 4.0, AcuPick (con NVR AcuPick), AI SSA, privacy mask 8 aree, 3D NR, WDR 120 dB, micro SD card (512 GB), alimentazione 12 Vdc/PoE <10.9 W
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 256 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.005 lux@F1.4 (Color, 30 IRE) |
| Min. Illumination | 0.0005 lux@F1.4 (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | 56 dB > Up to 50 m (164.04 ft) (IR) |
| Illumination Distance | Up to 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 4 (Multi-core (IR + warm) light) |
| Angle Adjustment | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm-13.5 mm |
| Max. Aperture | F1.4 |
| Field of View | H: 104°–29°; V: 54°–16°; D: 125°–34° |
| Iris Control | Fixed |
| Close Focus Distance | 0.1 m (0.33 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human), stay detection, loitering detection. Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot |
| Face Detection(Full Image) | set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| SMD | SMD 4.0 Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and |
| AcuPick | motor vehicles, and search through live and recorded videos to quickly locate targets. |
| AI SSA | of the image to suit the conditions Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) AI H.265; AI H.264 |
| AI Coding | *includes SmartCodec Technology,Smart H.264+ /H.265+ Main stream: 2688 × 1520@(1 fps–25/30 fps) Sub stream: 1920 × 1080@(1 fps–25/30 fps) Third stream: 1920 × 1080@(1 fps–25/30 fps) |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × |
| Resolution | 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR;ABR H.264: 3 kbps–16384 kbps |
| Video Bit Rate | H.265: 3 kbps–16384 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Smart Dual Light | Yes |
| Defog | |
| AFSA | Yes 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 |
| Image Rotation | resoluton and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in Mic | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; loitering detection; face detection (full image); scene changing; audio detection; voltage detection; defocus detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S & Profile G & Profile T & Profile M); CGI |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | IOS; Android Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; |
| Security | syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) When the power adapter and PoE provide power at |
| Dual Power Backup | the same time, disconnect one of them. The device will continue to work, but will not restart. Basic: 2.9 W (12 VDC); 3.7 W (PoE) |
| Power Consumption | Max. (H.265 + WDR + warm light + intelligence on): 8.7 W (12 VDC); 10.9 W (PoE) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 94.0 mm × Φ122.0 mm (3.70" × Φ4.80") |
| Net Weight | 560 g (1.23 lb) |
| Gross Weight | 740 g (1.63 lb) |
| Ordering Information | |
| Type | Model Description 4MP Smart Dual Light Vari-focal |
| 4MP Camera | DH-IPC-HDBW3449R-ZS-IL Dome WizSense Network Camera DH-PFA137 Junction Box Bracket DH-PFA109 Mount Adapter DH-PFB220C Ceiling Mount Bracket DH-PFB5203C In Ceiling Mount Bracket DH-PFB2203W Wall Mount Bracket DH-PFB305W Wall Mount Bracket DH-PFA156 Pole Mount Bracket |
| Accessories | |
| (Optional) | DH-PFA150 Pole Mount Bracket DH-PFA151 Corner Mount Bracket DH-PFM321-EN DC12V 1A power adapter DH-PFM321D-EN DC12V 1A power adapter DH-PFM320D-EN DC12V 2A power adapter PFM900-E Integrated Mount Tester DHI-TF-P100/512GB MicroSD Card |
| Optional: | |
| DH-PFA137 | DH-PFA109 |
| Junction Box Bracket | Mount Adapter Corner Mount Bracket |
| DH-PFB5203C | DH-PFB2203W DH-PFB305W |
| In Ceiling | Wall Mount Bracket Wall Mount Bracket |
| Mount Bracket | DH-PFA151 PFA156 DH-PFA150 |
| DH- | Corner Mount Bracket Pole Mount |
| Pole Mount | Bracket Bracket DH-PFM320D-EN |
| DH-PFM321-EN | DH-PFM321D-EN DC12V 2A power adapter |
| DC12V 1A power adapter | DC12V 1A power adapter DHI-TF-P100/512GB |
| PFM900-E | MicroSD Card |
