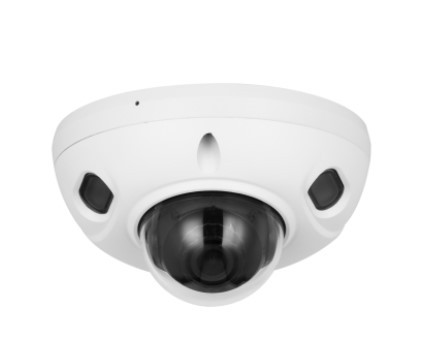

Telecamera IP Dome WizSense IR a focale fissa 4MP
Codice produttore: DH-IPC-HDBW3441F-AS-S2
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) |
| Min. Illumination | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | 56 dB > |
| Illumination Distance | Up to 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: -20°–70°; Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.1 mm; 2.8 mm; 3.6 mm; 6 mm 2.1 mm: F2.0; |
| Max. Aperture | 2.8 mm; 3.6 mm; 6 mm: F1.4 2.1 mm: Horizontal: 137°; vertical: 70°; diagonal: 142° 2.8 mm: Horizontal: 102°; vertical: 54°; diagonal: 121° |
| Field of View | 3.6 mm: Horizontal: 84°; vertical: 42°; diagonal: 101° 6 mm: Horizontal: 52°; vertical: 28° ; diagonal: 61° |
| Iris Control | Fixed 2.1 mm: 0.5 m (1.64 ft) 2.8 mm: 0.9 m (2.95 ft) |
| Close Focus Distance | 3.6 mm: 1.6 m (5.25 ft) 6 mm: 3.2 m (10.50 ft) |
| Dori | |
| Distance | 124.0 m 49.6 m 24.8 m 12.4 m 6 mm (406.82 ft) (162.73 ft) (81.36 ft) (40.68 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | that users are interested in from SMD events Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by the sub stream) Smart H.265+ |
| Smart Codec | Smart H.264+ AI H.265 |
| AI Coding | AI H.264 Main stream: 2688 × 1520 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) |
| Video Frame Rate | Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304×1296); 1080p (1920 × 1080); 1.3M(1280 × |
| Resolution | 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR H.264: 3 kbps–8192 kbps |
| Video Bit Rate | H.265: 3 kbps–8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | |
| AFSA | Yes 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; |
| Network Protocol | SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; |
| Cyber Security | IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; |
| Interoperability | Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | IOS; Android |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3 V–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) Basic: 3.8 W (12 VDC); 4.6 W (PoE) |
| Power Consumption | Max. (WDR + IR intensity + Intelligence): 5.9 W (12 VDC); 7.2 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Protection | IP67, IK10 |
| Structure | |
| Casing | Metal |
| Product Dimensions | 64.8 mm × Φ111.0 mm (2.55" × Φ4.37") |
| Net Weight | 423 g (0.93 lb) |
| Gross Weight | 530 g (1.17 lb) |
| Ordering Information | |
| Type | Model Description 4MP IR Fixed-focal Dome |
| 4 MP Camera | DH-IPC-HDBW3441F-AS-S2 WizSense Network Camera PFA136 Junction Box PFA109 Ceiling Mount PFB205W-E Wall Mount PFM321D 12 VDC 1 A Power Adapter |
| Accessories | |
| (optional) | PFB220C Ceiling Mount Bracket PFA152-E Wall mount PFM900-E Integrated Mount Tester TF-P100 TLC SD Card |
| Optional: | |
| PFA136 | PFA109 PFB205W-E Ceiling Wall |
| Junction | Mount Mount |
| PFM321D | PFA152-E PFB220C |
| 12 VDC 1 A | Wall Ceiling Mount |
| Power Adapter | mount Bracket |
| PFM900-E | TF-P100 |
| Integrated | TLC SD |
