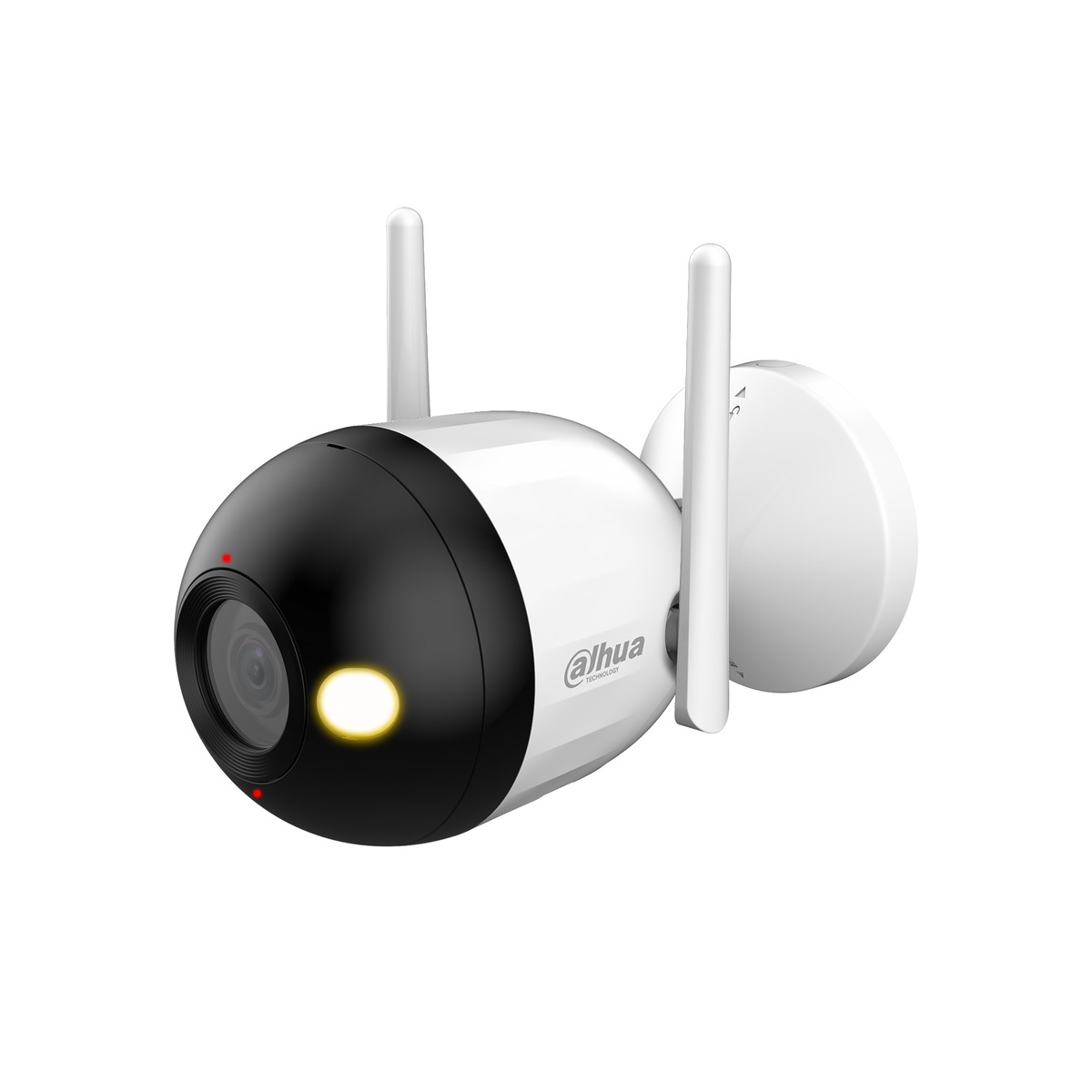

Telecamera bullet IP/Wi-Fi con deterrenza attiva da interno/esterno IP67, sensore CMOS 1/3″, risoluzione 4 MP (2560×1440) a 25/30fps, H.265/H.264, ottica fissa 2.8 mm o 3.6 mm F1.6, portata IR e luce calda fino a 30 m, illuminazione intelligente, ICR, rilevamento persone AI con notifiche su smartphone, microfono e speaker integrati, 1 porta RJ45 10/100 Mbps, Wi-Fi IEEE 802.11b/g/n 2.4 GHz, compatibile Smart PSS, DSS e DMSS (iOS/Android), alimentazione 12 Vdc (2.2 W), alimentatore incluso
Datasheet
| Ai Human Detection | |
| Clear images with sharp details | Focuses on what matters and reduces false alarms |
| Two-Way Talk | |
| Provides instant alarms to deter | Communication anytime, anywhere |
| Dmss App | |
| Advanced H.265 compression | Easy to use |
| Camera | |
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s Up to 30 m (98.53 ft) (IR) |
| Illumination Distance | Up to 30 m (98.53 ft) (Warm light) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Max. Aperture | F1.6 2.8 mm: H: 98°; V: 55°; D: 115° |
| Field of View | 3.6 mm: H: 78°; V: 41°; D: 94° |
| Intelligence | |
| Human Detection | human |
| Video & Audio | |
| Video Compression | H.264B; H.264; H.264H; H.265 Main stream: 2560 × 1440@(1–25/30 fps); sub stream: 640 × 480@(1–25/30 fps); |
| Video Frame Rate | *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × |
| Resolution | 1080); 1.3M (1280 × 960); 720p (1280 × 720) H.264: 32kbps ~ 4096kbps |
| Video Bit Rate | H.265: 12kbps ~ 4096kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| Motion Detection | OFF/ON |
| Smart Illumination | Yes Tools: Documents: Power: Installation Position QR Code×1 Power Adapter×1 Map×1 Quick Start Guide×1 Mounting Plate×1 Legal and Regulation Screw Package×1 Information×1 Waterproof Connector x 1 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Image Rotation | 0°/180° |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G |
| Storage | |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS;Android |
| Certifications | |
| Power Supply | 12 VDC Basic: 2.2 W (12 VDC) |
| Power Consumption | Max. (H.265+warm light intensity): 6.6 W (12 VDC) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Casing Material | Metal + plastic 131.0 mm × 78.4 mm × 97.2 mm (5.47" × 4.80" × |
| Product Dimensions | 3.83") (L × W × H) |
| Net Weight | 254.5 g (0.56 lb) |
