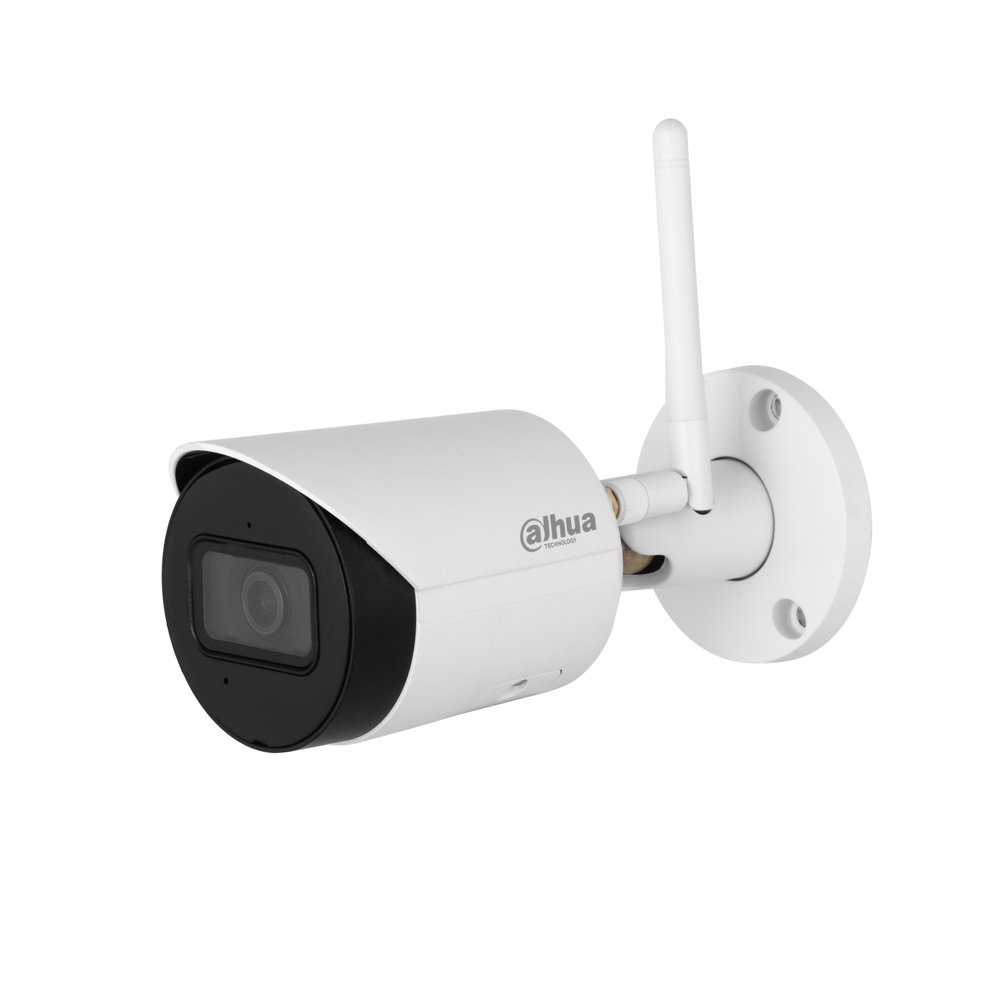

Telecamera bullet IP/Wi-Fi da interno/esterno IP67, sensore CMOS progressivo 1/2.8", risoluzione 2 MP a 25 fps, H.265+, ICR, ottica fissa M12 3.6 mm ƒ2.0, luminosità 0.025 lux F2.0, portata IR fino a 30 m, 1 porta di rete 10/100 Mbps, connessione Wi-Fi 2.4 G, microfono integrato, 3D NR, slot micro SD card (fino a 256 GB), alimentazione 12 Vdc <4.1 W, alimentatore incluso, case in metallo
Datasheet
Disegni
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.025 lux@F2.0 (Color, 30 IRE) |
| Min. Illumination | 0.0025 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 2.8 mm: Horizontal: 100°; Vertical: 53°; Diagonal: 120° |
| Field of View | 3.6 mm: Horizontal: 86°; Vertical: 43°; Diagonal: 102° |
| Iris Control | Fixed 2.8 mm: 0.6 m (1.97 ft) |
| Close Focus Distance | 3.6 mm: 1.0 m (3.28 ft) |
| Dori | |
| Distance | 58.8 m 23.5 m 11.8 m 5.9 m 3.6 mm (192.91 ft) (77.10 ft) (38.71 ft) (19.36 ft) |
| Video | |
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+; Smart H.264+ Main stream: 1920 × 1080 (1–25/30 fps) Sub stream: 640 × 480@(1–25 fps) |
| Video Frame Rate | 640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams 1080p (1920 × 1080); 960p (1280 × 960); 720p |
| Resolution | (1280 × 720) |
| Bit Rate Control | CBR/VBR H264: 24 kbps–4096 kbps |
| Video Bit Rate | H265: 9 kbps–4096 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR Auto; natural; street lamp; outdoor; manual; |
| White Balance | regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
| Audio | |
| Built-in MIC | Yes |
| Alarm | |
| Alarm Event | detection; video tampering;audio detection; intensity change |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE802.11b/g/n 2.4–2.4835 GHz Up to 80 m (The performance varies based on |
| Wireless Range | actual environment) |
| SDK and API | Yes Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation |
| Cyber Security | and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; |
| Network Protocol | DNS; NTP; Multicast; RTMP |
| Interoperability | ONVIF (Profile S/Profile G); CGI; P2P |
| User/Host | 6 (Total bandwidth: 36 M) Micro SD card (support max. 256 GB, sold |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Power | |
| Power Supply | 12 VDC Basic: 2 W (12 VDC) |
| Power Consumption | Max. (H.265+IR intensity): 4.1 W (12 VDC) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal 166.2 mm × 70.0 mm × 128.6 mm (6.53" × 2.76" × |
| Product Dimensions | 5.06") |
| Net Weight | 477.9 g (1.05 lb) |
| Gross Weight | 696.5 g (1.50 lb) |
| Ordering Information | |
| Type | Model Description DH-IPC- 2MP IR Fixed-focal Wi-Fi Bullet Network HFW1230DSP-SAW- |
| Camera | |
| 2MP Camera | DH-IPC- 2MP IR Fixed-focal Wi-Fi Bullet Network HFW1230DSN-SAW- |
| Optional: | |
| PFA134 | PFA152-E Integrated |
| Junction Box | Pole Mount Mount Tester |
