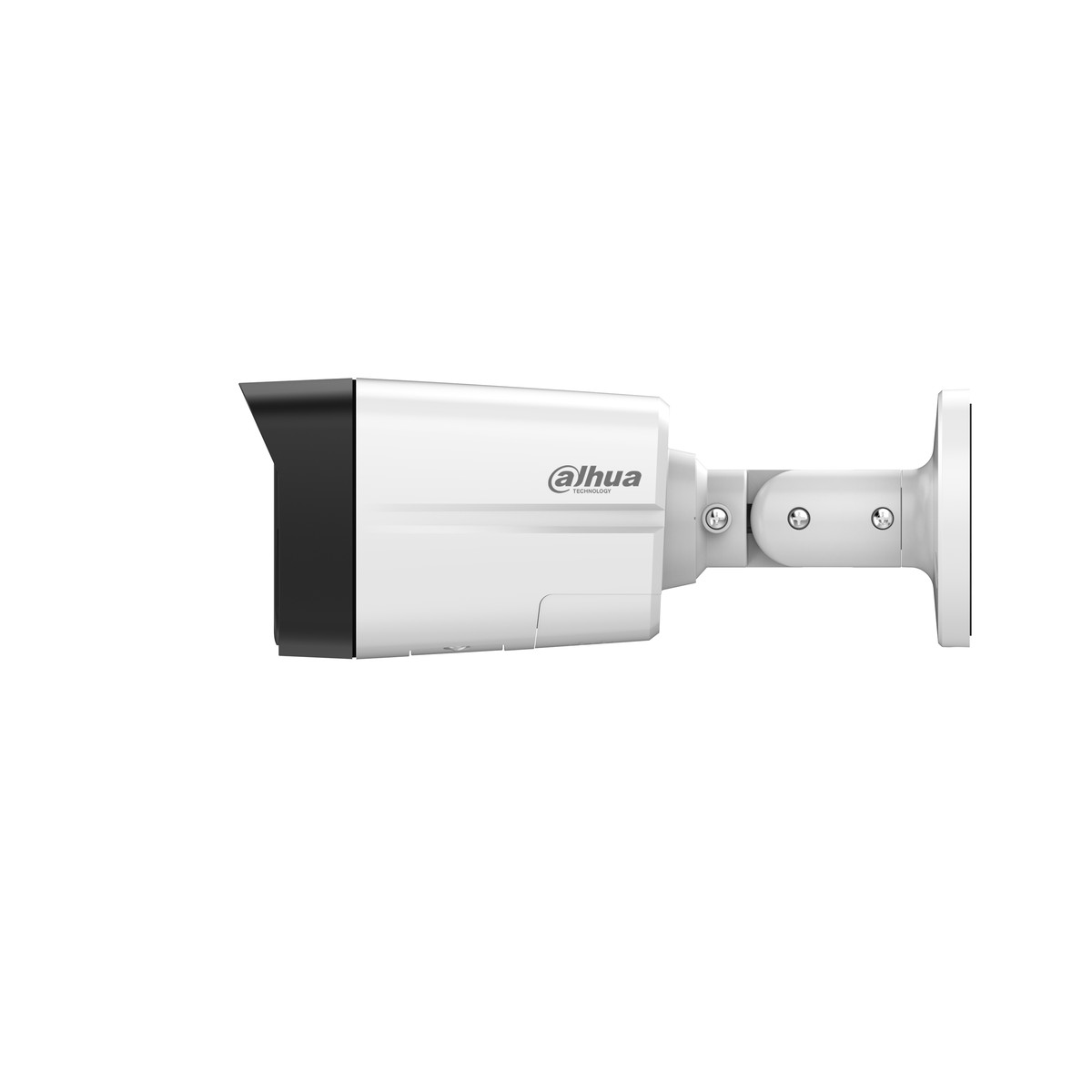

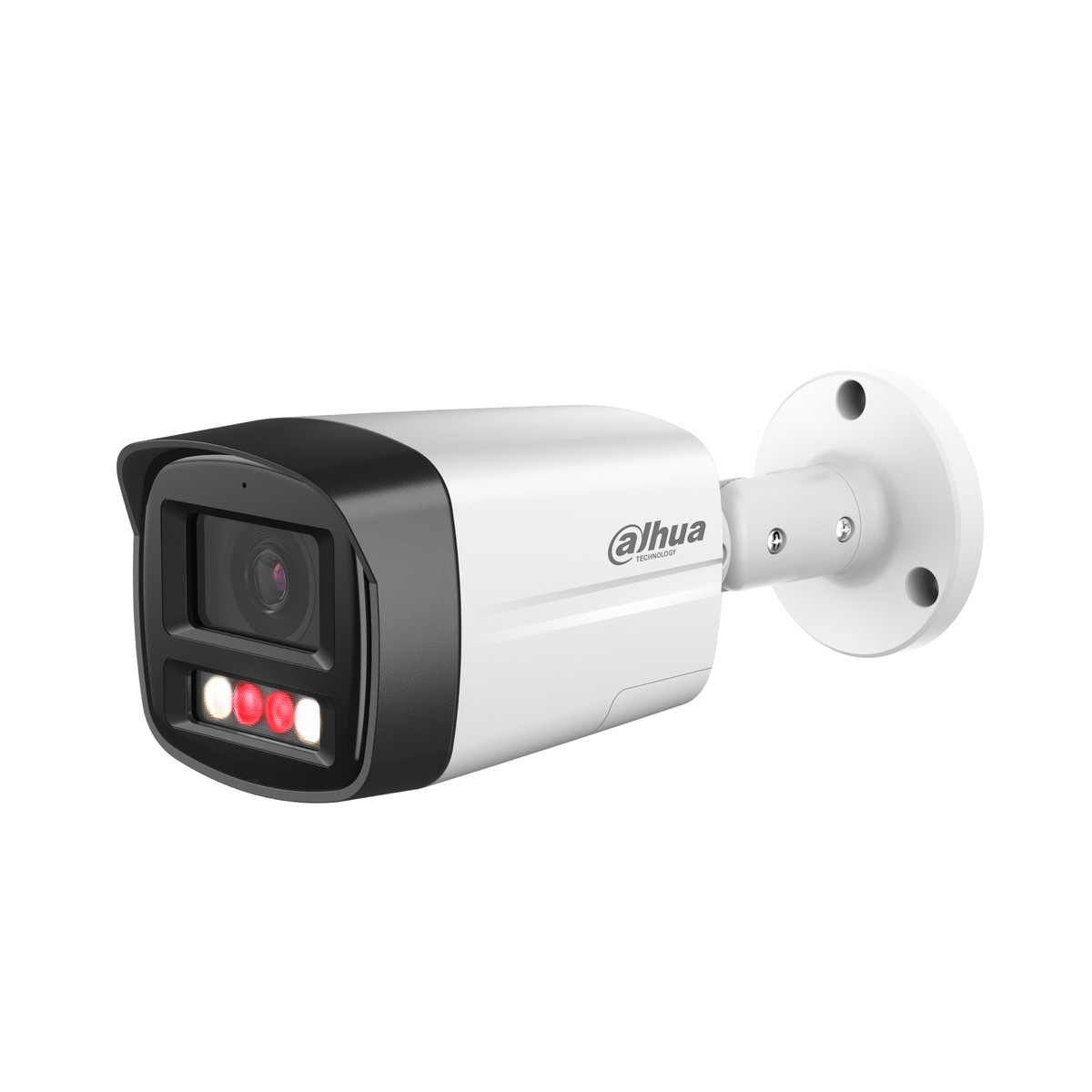

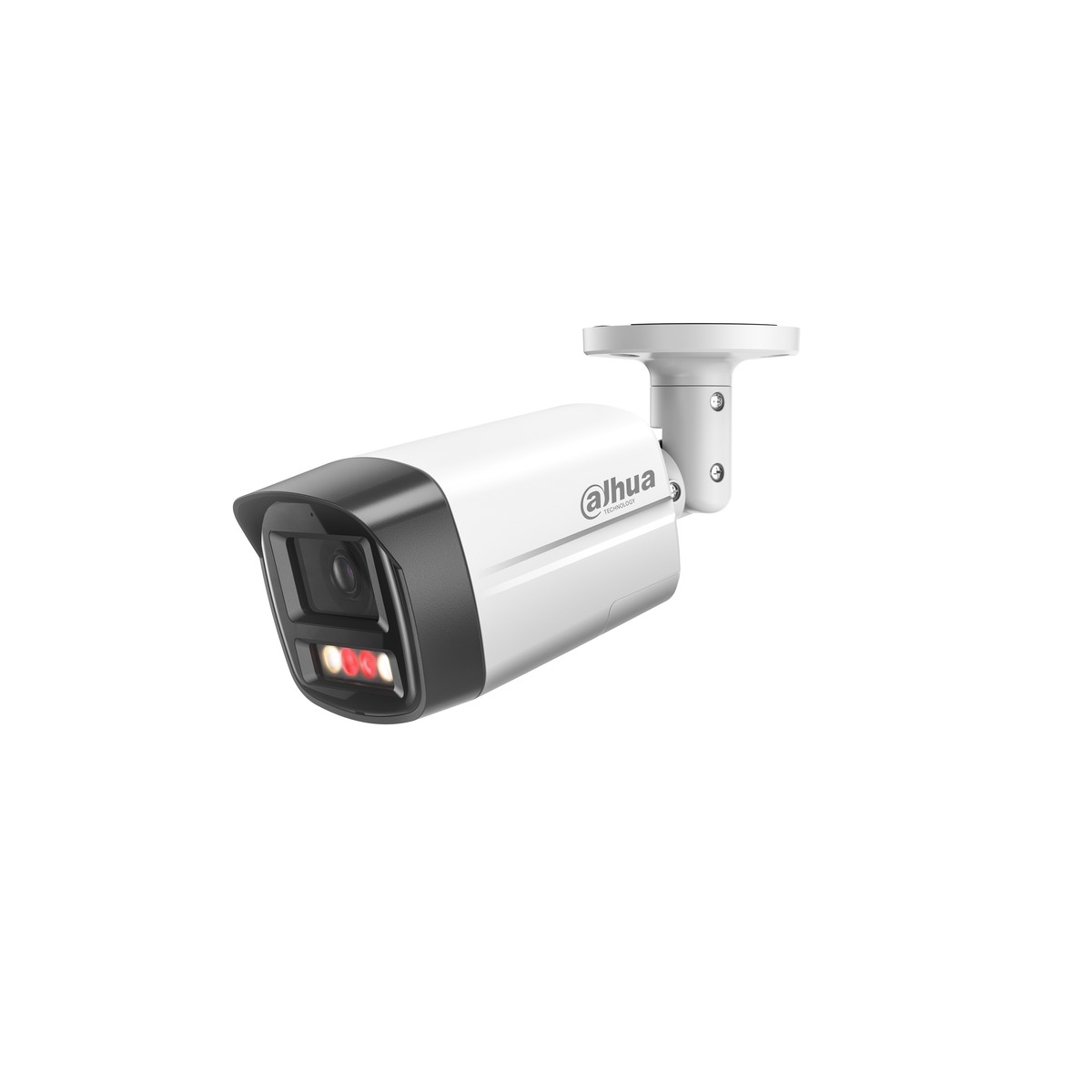

Telecamera bullet IP AI WizSense Smart Dual Light con deterrenza attiva (allarme sonoro e luminoso) da interno/esterno IP67, sensore CMOS progressivo 1/2.9″, risoluzione 4 MP a 20fps (2560×1440 a 25/30fps), H.265+, ottica fissa 2.8 mm o 3.6 mm F1.0, luminosità 0.004 lux F1.0, portata IR e luce calda fino a 30 m, microfono e speaker integrati con audio bidirezionale, IVS (protezione perimetrale con classificazione persone/veicoli), SMD Plus, WDR, 3D NR, attivazione/disattivazione con un tocco, micro SD card (256 GB), alimentazione 12 Vdc/PoE
Datasheet
Disegni
| Camera | |
| Image Sensor | 1/2.9" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s 0.004 lux@F1.0 (Color, 30 IRE) |
| Min. Illumination | 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB Up to 30 m (98.43 ft) (IR ) |
| Illumination Distance | Up to 30 m (98.43 ft) (Warm Light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 2.8 mm: H: 101.6°; V: 54.8°; D: 122.1° |
| Field of View | 3.6 mm: H: 84°; V: 45.6°; D: 98.9° |
| Iris Control | Fixed 2.8 mm: 1.4 m (4.59 ft) |
| Close Focus Distance | 3.6 mm: 2.0 m (6.56 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | classification and accurate detection of vehicle and human) |
| SMD | SMD Plus Work together with Smart NVR to perform refine |
| Smart Search | intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@ (1–25/30 fps); sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 |
| Video Frame Rate | fps); *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p |
| Resolution | (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR H.264: 32 kbps–6144 kbps; |
| Video Bit Rate | H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 |
| Image Rotation | resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; |
| Network Protocol | RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; auto registration |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;802.1x;IP/MAC filtering;HTTPS;Trusted |
| Security | upgrade;Trusted boot;Generation and importing of X.509 certification |
| Power | |
| Power Supply | 12 VDC/PoE Basic: 2.2 W (12 VDC); 3 W (PoE) Max. (H.265 + intelligence on + WDR + IR intensity + |
| Power Consumption | warm light deterrence + speaker): 11.9 W (12 VDC); 13.6 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal 197.9 mm × 80.2 mm × 76.2 mm (7.79" × 3.16" × 3.00") |
| Product Dimensions | (L × W × H) |
| Net Weight | 0.53 kg (1.17 lb) |
| Gross Weight | 0.67 kg (1.48 lb) |
| Ordering Information | |
| Type | Model Description 4MP Smart Dual Light Active |
| 4MP | DH-IPC-HFW2449TL-S-PV Deterrence Fixed-focal Bullet |
| Accessories | |
| (Optional) | PFM321D 12 VDC 1A Power Adapter PFM900-E Integrated Mount Tester TF-P100 MicroSD Memory Card The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Optional: | |
| PFA134 | PFA152-E Pole Mount Bracket IP66 Junction |
| Junction Box | Box PFM900-E |
| PFM321D | TF-P100 Integrated |
| 12 VDC 1 A Power | MicroSD Mount Tester |
| Adapter | Memory Card |
