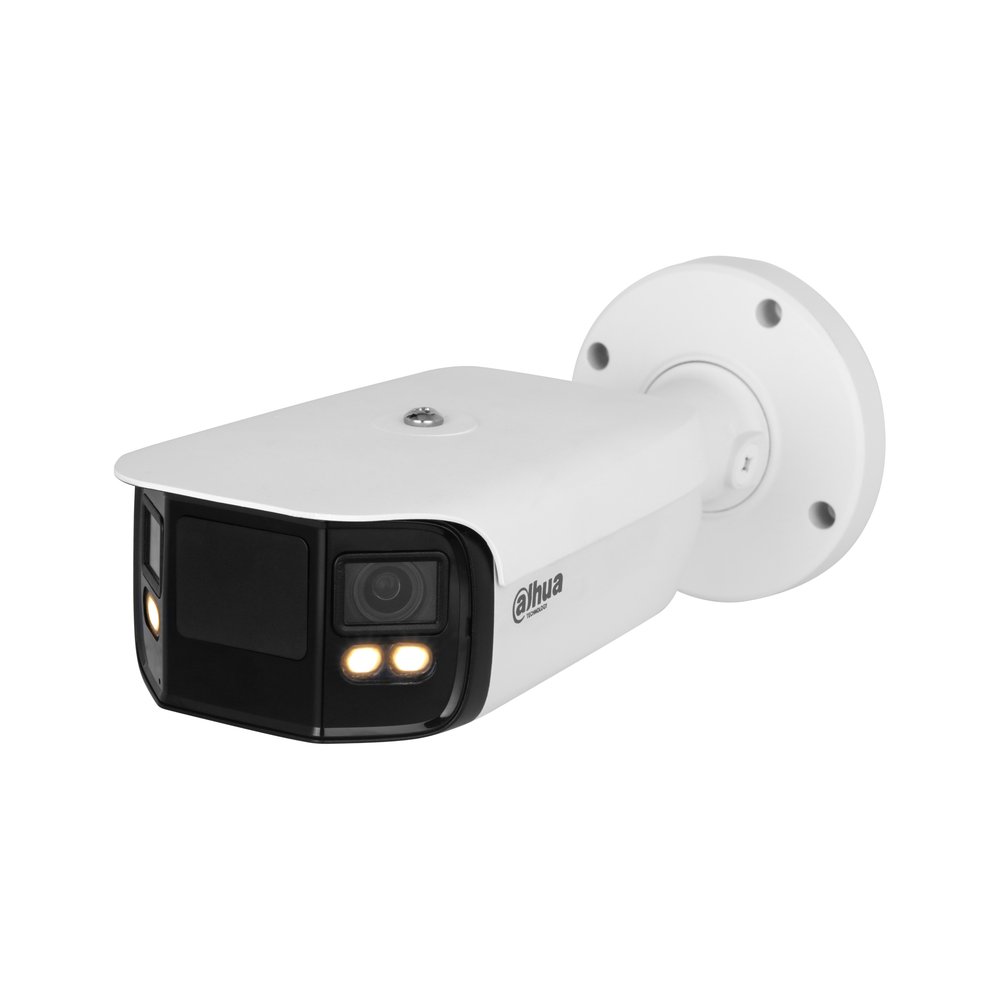

Telecamera bullet IP AI WizMind Full-color Starlight a doppia ottica splicing (180°) da interno/esterno IP67, 2 sensori CMOS progressivi 1/1.8", risoluzione 2×4 MP a 25fps, H.265+, ottica fissa M16 3.6 mm ƒ1.0, luminosità 0.001 lux ƒ1.0, portata warm light fino a 40 m, 1 porta LAN 10/100 Mbps, 1 ingresso e 1 uscita allarme, 1 ingresso e 1 uscita audio con microfono integrato, 1 porta RS485, privacy mask 4 aree, 3D NR, WDR 140 dB, IVS, heat map, protezione perimetrale, SMD 4.0, people counting, EPTZ, micro SD card (256 GB), alimentazione 12 Vdc/ePoE <11.8 W
| Camera | |
| Image Sensor | Dual 1/1.8" CMOS |
| Max. Resolution | 4096 (H) × 1800 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive Auto/Manual 1/3 s–1/100,000 s |
| Electronic Shutter Speed | 0.0005 lux@F1.0 (Color, 30 IRE) |
| Min. Illumination | 0.0002 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 4 (Warm light) Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 3.6 mm H: 180°±10° |
| Field of View | V: 48° |
| Max. Aperture | F1.0 |
| Iris Control | Fixed |
| Close Focus Distance | 3.6 m (11.81 ft) |
| Dori | |
| Distance | (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Intelligence | |
| IVS (Perimeter Protection) | of vehicle and human); loitering detection, people gathering, and parking detection |
| Heat Map | Yes |
| Smart Object Detection | Smart abandoned object; smart missing object Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/ monthly/daily reports. Support the counting of number in area, and 4 rules |
| People Counting | configuration. Count number of people or stay time and link alarm. Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm |
| Video | |
| Video Compression | by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 WDR Off: Main stream: 4096 × 1800 @ (1–25 fps) sub stream: 1024 × 452 @ (1–25 fps) third stream: 1920 × 832 @ (1–25 fps) WDR On: |
| Video Frame Rate | Main stream: 4096 × 1800 @ (1–20 fps) sub stream: 1024 × 452 @ (1–20 fps) third stream: 1920 × 832 @ (1–20 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams 8M (4096 × 1800); 6.5M (3840 × 1680); 4M (3840 × |
| Resolution | 1080); 4M (2880 × 1264); 1.6M (1920 × 832); 0.7M (1280 × 560); 0.5M (1024 × 452) |
| Bit Rate Control | CBR/VBR H.264: 9 kbps–8192 kbps |
| Video Bit Rate | H.265: 9 kbps–8192 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation | Yes |
| (SSA) | Auto; natural; street lamp; outdoor; manual; regional |
| White Balance | custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; SMD; people counting in area; stay detection; people counting; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Cyber Security | IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; |
| Network Protocol | Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | |
| Browser | Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channels in: 5 mA 3 V–5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC (±30%)/PoE+ (802.3at)/ePoE Basic: 4.8 W (12 VDC); 5.5 W (PoE) |
| Power Consumption | Max. (WDR + intelligence + warm light + SPK): 12.3 W (12 VDC); 13.8 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal + plastic 301.2 mm × 128.2 mm × 120.1 mm (11.86" × 5.05" × |
| Product Dimensions | 4.73") (L × W × H) |
| Net Weight | 1420 g (3.13 lb) |
| Gross Weight | 1570 g (3.46 lb) |
| Ordering Information | |
| Type | Model Description DH-IPC-PFW5849P-A180- 2×4MP Full-Color Duo Splicing E2-ASTE WizMind Network CAMERA, PAL |
| 8MP Camera | IPC-PFW5849P-A180-E2- 2×4MP Full-Color Duo Splicing ASTE WizMind Network CAMERA, PAL PFA5300R Junction Box PFA157 Pole Mount Bracket |
| Accessories | |
| (Optional) | TF-P100 MicroSD Memory Card PFM321D 12 VDC 1A Power Adapter |
| Optional: | |
| PFA5300R | Integrated Pole Mount |
| Junction Box | Mount Tester Bracket |
| TF-P100 | PFM321D |
| MicroSD | 12V DC 1A |
| Memory Card | Power Adapter |
