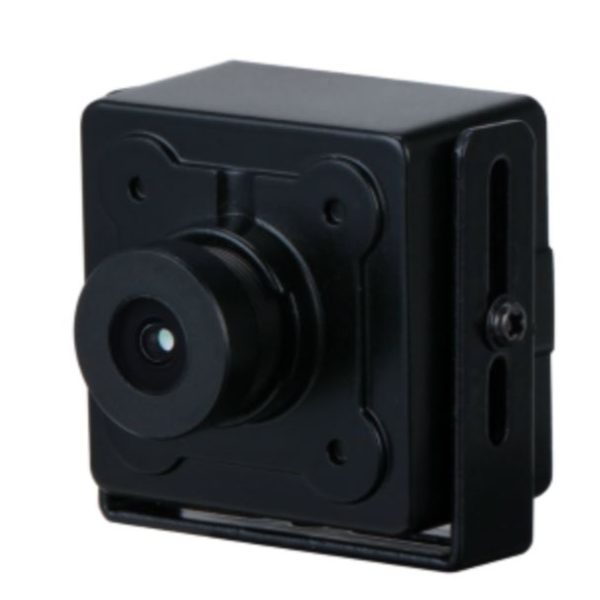

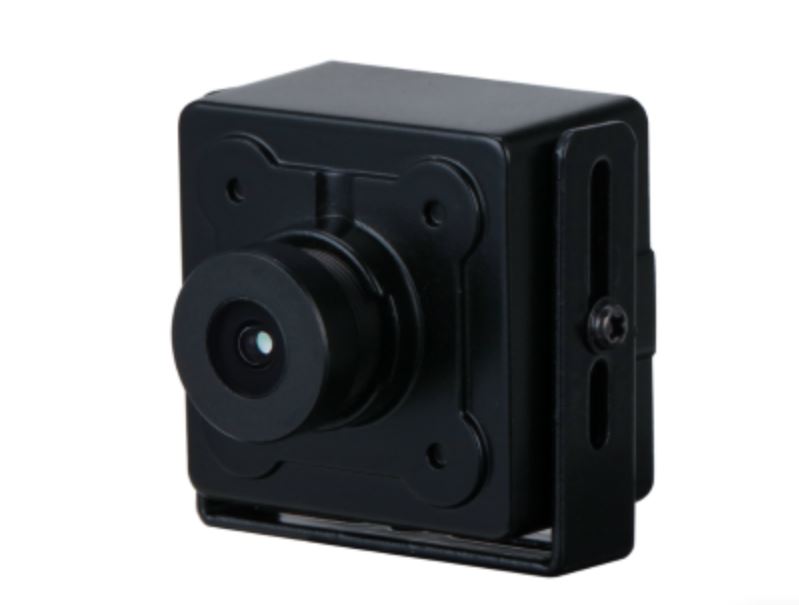

Mini camera HDCVI Starlight da interno, sensore CMOS progressivo 1/2.8", risoluzione 2 MP a 25fps, ottica fissa M12 2.8 mm ƒ2.5, luminosità 0.004 lux ƒ2.4, 3D NR, WDR 120 dB, HDCVI/TVI/AHD/CVBS su porta BNC, 1 ingresso audio, OSD, alimentazione 12 Vdc <2.11 W
| Camera | |
| Image Sensor | 1/2.8 inch CMOS |
| Effective Pixels | 1920 (H) × 1080 (V), 2MP |
| Scanning System | Progressive PAL: 1/3s–1/100000s |
| Electronic Shutter Speed | NTSC: 1/4s–1/100000s |
| S/N Ratio | 65 dB > Color: 0.004LuxLux/F2.4 |
| Minimum Illumination | Black & White: 0.0004LuxLux/F2.4 |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.5 |
| Angle of View | 130° × 110° × 59° (diagonal x horizontal x vertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.5 m (1.6 ft) |
| Dori | |
| Distance | (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Frame Rate | TVI: PAL: 1080P@25fps, 720P@25ps NTSC: 1080P@30fps, 720P@30ps CVBS: PAL: 960 × 576H NTSC: 960 × 480H 1080P (1920 × 1080); 720P (1280 × 720); 960H (704 |
| Resolution | × 576/704 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR |
| WDR | 120 dB |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Digital Zoom | 4 × |
| Mirror | Off/On |
| Privacy Masking | Off/On |
| Port | |
| Video Output | BNC port |
| Audio Input | One channel, RCA sound pick-up port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 2.11W |
| Environmental | |
| Operating Temperature | condensation) -30°C to +60°C (-22°F to 140°F);<95% (non- |
| Storage Temperature | condensation) |
| Protection Grade | NA |
| Construction | |
| Casing | Metal throughout the whole casing 43.5 mm × 36.2 mm × 29.5 mm (1.71" × 1.43" × |
| Camera Dimensions | 1.16") |
| Net Weight | 0.04 kg (0.09 lb) |
| Gross Weight | 0.14 kg (0.31 lb) |
| Ordering Information | |
| Type | Part Number Description DH-HAC-HUM3201BP- 0280B-S2 DH-HAC-HUM3201BN- 2MP Starlight HDCVI Miniature |
| 2MP Camera | 0280B-S2 |
| Accessories | |
| PFM321 | PFM320 PFM320D-015 |
| 12V 1A Power Adapter | 12V 2A Power Adapter Power Adapter The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
