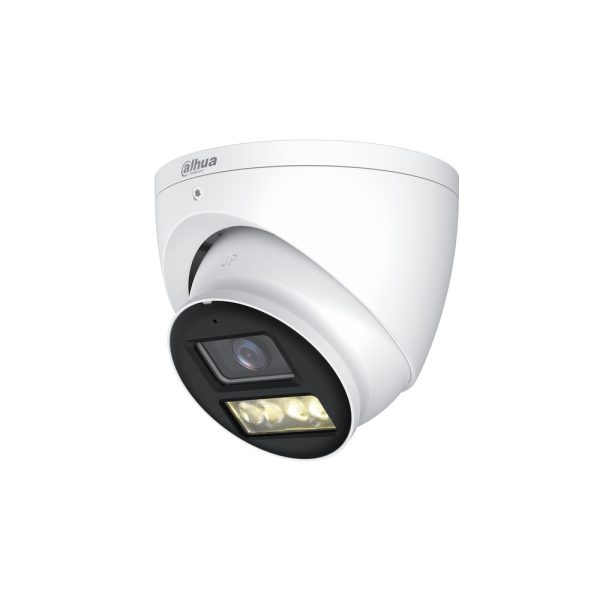

Telecamera eyeball HDCVI Smart Dual Light (necessario XVR5000-I3/XVR5000-4KL-I3 con apposito FW) da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica fissa M12 2.8 mm ƒ1.6, luminosità 0.05 lux, portata IR/warm light fino a 40 m, 3D NR, CVI/CVBS/AHD/TVI commutabili su porta BNC (DIP switch), microfono integrato, Super Adapt, alimentazione 12 Vdc <6.5 W
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100,000 s 0.05 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB IR: 40 m (131.23 ft) |
| Illumination Distance | Warm Light: 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 4 (Multi-core light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 2°–74.8° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 3.6 mm; 2.8 mm |
| Max. Aperture | F1.6 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3° |
| Field of View | 3.6 mm: H: 90.1°; V: 47.8°; D: 109.3° |
| Iris Control | Fixed 2.8 mm: 0.8 m (2.62 ft) |
| Close Focus Distance | 3.6 mm: 1.3 m (4.27 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Video | |
| Video Frame Rate | AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps |
| Resolution | 1080); 960H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| White Balance | Auto;Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | Yes |
| Illumination Mode | Smart IR&WL; WL Mode; IR Mode |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Audio | |
| Built-in Mic | Yes |
| Camera Audio | CVI; TVI |
| Port | |
| Video Output | port (DIP Switch) |
| Power | |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 6.5 W (12 VDC, WLED on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | Φ106.0 mm × 96.9 mm (Φ4.17" × 3.81") |
| Net Weight | 0.50 kg (1.10 lb) |
| Gross Weight | 0.64 kg (1.41 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Model Description 5MP Smart Dual Light HDCVI Fixed-focal Eyeball DH-HAC-HDW1500TN-IL-A Camera,NTSC |
| HDCVI CAMERA | 5MP Smart Dual Light HDCVI Fixed-focal Eyeball DH-HAC-HDW1500TP-IL-A Camera,PAL DH-PFB220C Ceiling Mount Bracket DH-PFA106 Mount Adapter DH-PFB305W Wall Mount Bracket DH-PFA151 Corner Mount Bracket DH-PFA150 Pole Mount Bracket DH-PFB204W Wall Mount Bracket |
| Accessories (Optional) | DH-PFA152-E Pole Mount Bracket Junction Box DH-PFA139 1 Channel Passive HDCVI DH-PFM800-4K Balun DH-PFM321-EN DC12V1A power adapter DH-PFM320D-EN DC12V2A power adapter PFM904 Integrated Mount Tester |
| Optional: | |
| DH-PFA106 | DH-PFA139 DH-PFA150 |
| Mount Adapter | Junction Box Pole Mount Bracket |
| DH-PFA151 | DH-PFA152-E DH-PFB204W |
| Corner Mount Bracket | Pole Mount Bracket Wall Mount Bracket |
| DH-PFB220C | DH-PFB305W DH-PFM320D-EN |
| Ceiling Mount Bracket | Wall Mount Bracket DC12V2A power adapter |
| DH-PFM321-EN | PFM904 DH-PFM800-4K |
| DC12V1A power adapter | Integrated Mount Tester 1 Channel Passive HDCVI Balun 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
