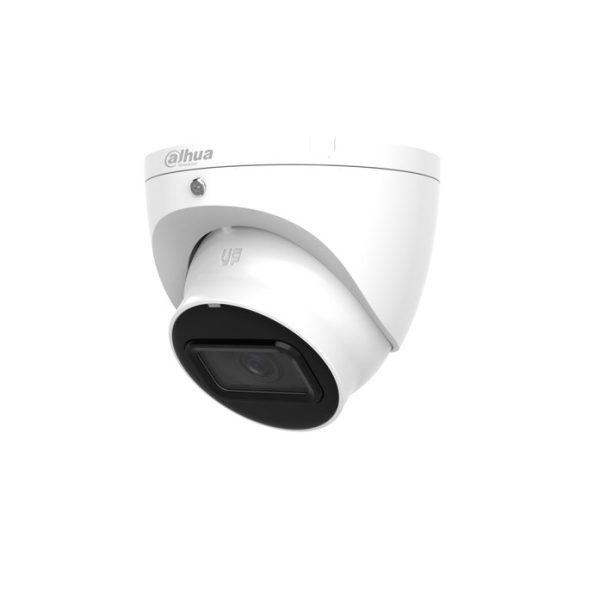

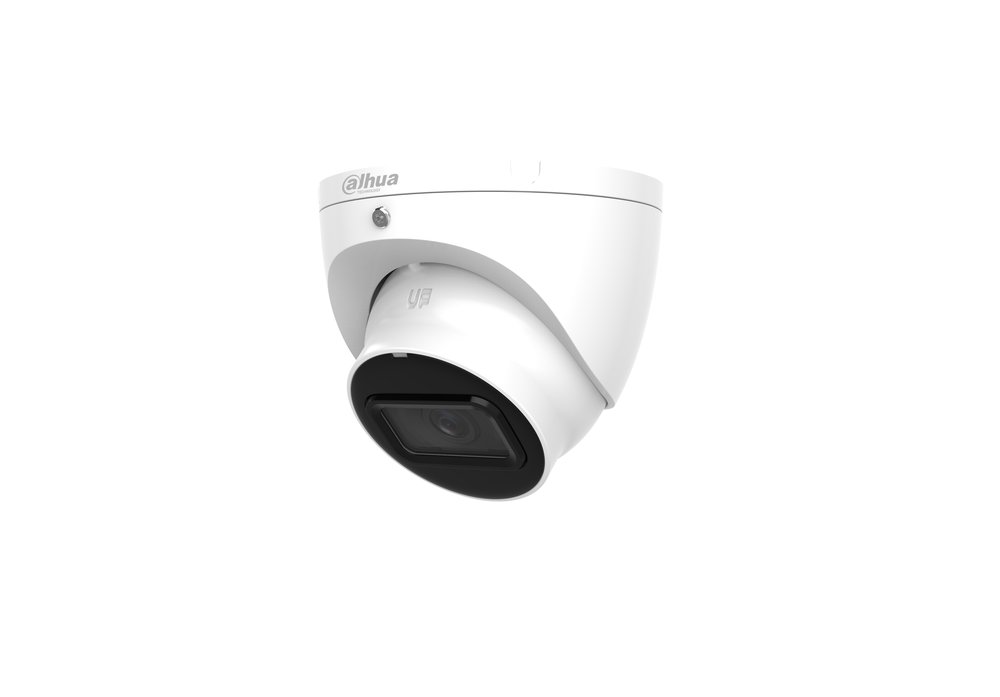

Telecamera eyeball HDCVI Starlight da interno/esterno IP67, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica fissa 2.8 mm ƒ1.6, luminosità 0.01 lux ƒ1.6 (0 con IR On), portata IR fino a 30 m, CVI/TVI/AHD/CVBS su porta BNC (DIP Switch), microfono integrato, 3D NR, Super Adapt, alimentazione 12 Vdc <3.2 W
| Camera | |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100,000 s 0.01 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (IR light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: H: 113.3°; V: 62.1°; D: 134.3° |
| Field of View | 3.6 mm: H: 90.1°; V: 47.8°; D: 109.3° |
| Iris Control | Fixed 2.8 mm: 0.8 m (2.62 ft) |
| Close Focus Distance | 3.6 mm: 1.3 m (4.27 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
| Video | |
| Video Frame Rate | PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H |
| Video Frame Rate | NTSC: 960H 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × |
| Resolution | 1080); 960 H (960 × 576/960 × 480); TVI 5M 16:9 (2960 × 1665) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | DWDR |
| White Balance | Auto;Area white balance |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Audio | |
| Built-in Mic | Yes |
| Camera Audio | CVI; TVI |
| Pick-up Distance | 8 m (26.25 ft) |
| Port | |
| Video Output | port (DIP Switch) |
| Power | |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 3.2 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Anti-corrosion Level | Basic Protection |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | Φ94.0 mm × 85.7 mm (Φ3.7" × 3.37") |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Model Description 5MP IR HDCVI Fixed-focal DH-HAC-HDW1500TLMN-A Eyeball Camera,NTSC |
| HDCVI CAMERA | 5MP IR HDCVI Fixed-focal DH-HAC-HDW1500TLMP-A Eyeball Camera,PAL DH-PFA106 Mount Adapter DH-PFB220C Ceiling Mount Bracket DH-PFA151 Corner Mount Bracket DH-PFB305W Wall Mount Bracket DH-PFA150 Pole Mount Bracket DH-PFB2204W Wall Mount Bracket |
| Accessories (Optional) | DH-PFA152-E Pole Mount Bracket Junction Box DH-PFA13A-E 1 Channel Passive HDCVI DH-PFM800-4K Balun DH-PFM321-EN DC12V1A power adapter DH-PFM320D-EN DC12V2A power adapter PFM904 Integrated Mount Tester |
| Accessories | |
| DH-PFA106 | DH-PFA13A-E DH-PFA150 |
| Mount Adapter | Junction Box Pole Mount Bracket |
| DH-PFA151 | DH-PFA152-E DH-PFB2204W |
| Corner Mount Bracket | Pole Mount Bracket Wall Mount Bracket |
| DH-PFB220C | DH-PFB305W DH-PFM320D-EN |
| Ceiling Mount Bracket | Wall Mount Bracket DC12V2A power adapter DH-PFM800-4K |
| DH-PFM321-EN | PFM904 1 Channel Passive HDCVI |
| DC12V1A power adapter | Integrated Mount Tester Balun 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
