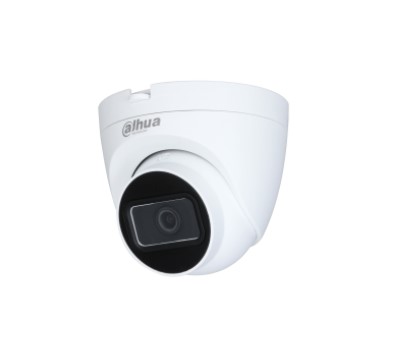

Dahua Telecamera HAC-HDW1200TRQ-S6 con 4 tecnologie in 1 commutabile: CVI / CVBS / AHD / TVI, Risoluzione 2Megapixel 2 MP, ottica fissa 2.8mm e sensore 2 MP CMOS – Illuminatore Smart IR 2 LED 30M, Day/Night (ICR), BLC, H
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100000 s 0.01 lux@F2.0 (Color, 30 IRE) |
| Min. Illumination | 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (IR light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 2.8 mm: H: 102°; V: 60°; D: 129° |
| Field of View | 3.6 mm: H: 83°; V: 48°; D: 105° |
| Iris Control | Fixed 2.8 mm: 0.5 m (1.64 ft) |
| Close Focus Distance | 3.6 mm: 0.7 m (2.30 ft) |
| Dori | |
| Distance | 50.9 m 20.3 m 10.2 m 5.1 m 3.6 mm (166.99 ft) (66.60 ft) (33.46 ft) (16.73 ft) |
| Video | |
| Video Frame Rate | TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | BNC port |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 2.7 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66") |
| Net Weight | 0.14 kg (0.31 lb) |
| Gross Weight | 0.25 kg (0.55 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Model 2MP IR HDCVI Fixed-focal Eyeball Camera, DH-HAC-HDW1200TRQP PAL |
| 2M Camera | 2MP IR HDCVI Fixed-focal Eyeball Camera, DH-HAC-HDW1200TRQN NTSC Junction Box PFA13G Mount Adapter PFA109 Ceiling Mount Bracket PFB220C Wall Mount Bracket PFB205W-E |
| Accessories | |
| (Optional) | Pole Mount Bracket PFA152-E 1 Channel Passive HDCVI Balun PFM800-E 12V 1A Power Adapter PFM321D Integrated Mount Tester PFM904 |
| Optional: | |
| PFA13G | Ceiling Mount Mount |
| Junction | Bracket Adapter Box PFM800-E PFA152-E |
| PFB205W-E | 1 Channel Passive Pole Mount |
| Wall Mount | HDCVI Balun Bracket |
| PFM321D | PFM904 |
| 12V 1A Power | Integrated Mount |
| Adapter | Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
