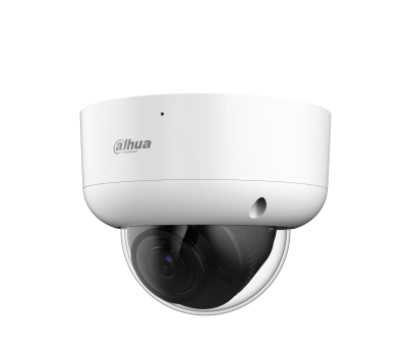

Telecamera dome HDCVI Starlight da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/2.7", risoluzione 8 MP a 15fps, ICR, ottica motorizzata 2.7~13.5 mm ƒ1.5, luminosità 0.01 lux ƒ1.5 (0 con IR On), portata IR fino a 60 m, 3D NR, WDR 120 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, OSD, Super Adapt, alimentazione 12 Vdc <7.92 W
| Camera | |
| Image Sensor | 4K CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100,000 s 0.01 lux@F1.6 (Color, 30 IRE) |
| Min. Illumination | 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | IR: 60 m (196.85 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 3 (IR light) Pan: 0°–355° |
| Angle Adjustment | Tilt: 0°–80° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Auto Focus | No |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 32.7°–111.8°; V: 18.4°–58.3°; D: 37.5°–135.2° |
| Iris Control | Fixed |
| Close Focus Distance | 1.2 m (3.94 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function |
| Video | |
| Video Frame Rate | TVI: PAL: 4K@15 fps NTSC: 4K@15 fps CVBS: PAL: 960H@50 fps NTSC: 960H@60 fps |
| Resolution | 4K (3840 × 2160); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; WDR |
| WDR | WDR |
| White Balance | Auto |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Audio | |
| Built-in Mic | Yes |
| Camera Audio | CVI; TVI |
| Pick-up Distance | 8 m (26.25 ft) |
| Port | |
| Video Output | port (DIP Switch) |
| Power | |
| Power Supply | 12 VDC (±30%) |
| Power Consumption | Max 7.4 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67;IK10 Basic Protection *The products are designed for general use and are |
| Anti-corrosion Level | applicable even in areas with no specific requirements for anti-corrosion protection. |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | Φ126 mm × 100 mm (Φ4.96" × 3.94") |
| Net Weight | 0.58 kg (1.28 lb) |
| Gross Weight | 0.84 kg (1.85 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Model Description 4K IR HDCVI Motorized DH-HAC-HDBW1801RAN-Z- Vari-Focal Vandal-proof A Dome Camera,NTSC |
| HDCVI CAMERA | 4K IR HDCVI Motorized DH-HAC-HDBW1801RAP-Z- Vari-Focal Vandal-proof A Dome Camera,PAL DH-PFA109 Mount Adapter DH-PFB220C Ceiling Mount Bracket DH-PFB305W Wall Mount Bracket DH-PFA151 Corner Mount Bracket DH-PFA150 Pole Mount Bracket DH-PFA156 Pole Mount Bracket DH-PFB2203W Wall Mount Bracket |
| Accessories (Optional) | DH-PFA197R Junction Box DH-PFB5204C In-ceiling Mount Bracket 1 Channel Passive HDCVI DH-PFM800-4K Balun DH-PFM321-EN DC12V1A power adapter DH-PFM325D-1210EN DC12V 1A Power Adapter DH-PFM320D-EN DC12V2A power adapter PFM904 Integrated Mount Tester |
| Accessories | |
| DH-PFA109 | DH-PFB220C DH-PFB305W |
| Mount Adapter | Ceiling Mount Bracket Wall Mount Bracket |
| DH-PFA151 | DH-PFA150 DH-PFA156 |
| Corner Mount Bracket | Pole Mount Bracket Pole Mount Bracket |
| DH-PFB2203W | DH-PFA197R DH-PFB5204C |
| Wall Mount Bracket | Junction Box In-ceiling Mount Bracket 2025 Dahua. All rights reserved. Design and specificatons are subject to change without notce. Pictures in the document are for reference only, and the actual product shall prevail. |
| DH-PFM800-4K | DH-PFM321-EN DH-PFM325D-1210EN |
| 1 Channel Passive HDCVI | DC12V1A power adapter DC12V 1A Power Adapter Balun |
| DH-PFM320D-EN | PFM904 |
| DC12V2A power adapter | Integrated Mount Tester |
