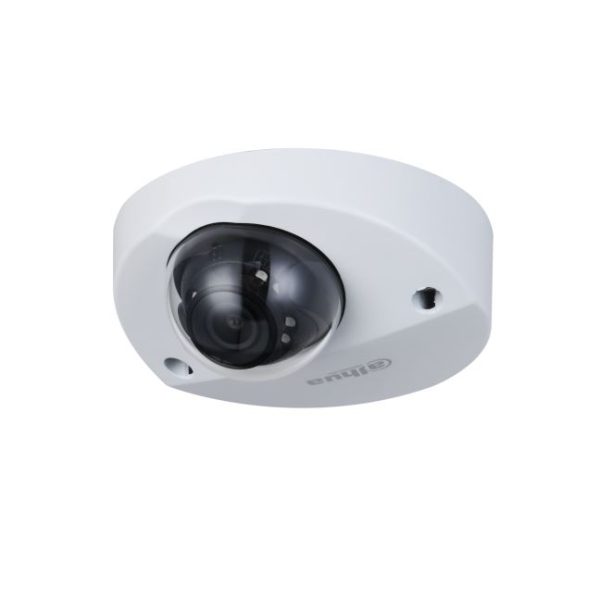

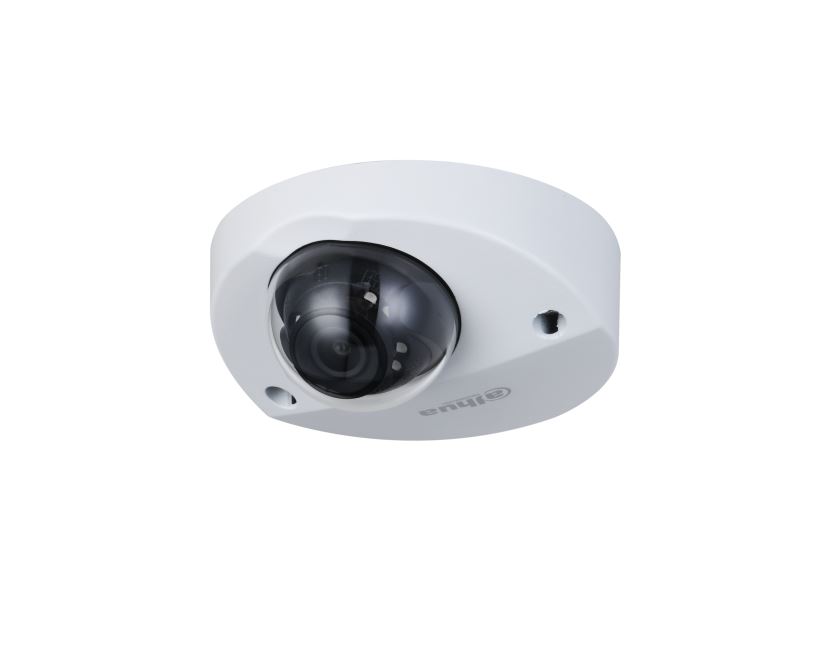

Telecamera dome HDCVI Starlight da interno/esterno IP67 antivandalo IK10, sensore CMOS progressivo 1/2.7", risoluzione 5 MP a 25fps (formato video 16:9), ICR, ottica fissa 2.8 mm ƒ1.6, luminosità 0.001 lux ƒ1.6 (0 con IR On), portata IR fino a 30 m, 2/3D NR, WDR 120 dB, HDCVI/TVI/AHD/CVBS su porta BNC (DIP switch), 1 ingresso audio con microfono integrato, OSD, alimentazione 12 Vdc <4 W
| Functions | |
| V4.001.0000001.0.R.200908 or later version. | Starlight |
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Pixel | 5 MP |
| Scanning System | Progressive PAL: 1/3 s–1/100,000 s |
| Electronic Shutter Speed | NTSC: 1/4 s–1/100,000 s |
| S/N Ratio | 0.001 Lux/F1.6, 30IRE, 0Lux IR on |
| Min. Illumination | > 65 dB |
| Illumination Distance | 30 m (98.4 ft) |
| Illuminator On/Off Control | Auto / Manual |
| Illuminator Number | 8 Pan: 0°–60° |
| Pan/Tilt/Rotation Range | Tilt: 0°–80° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.6 2.8 mm: 132° x 111°x 58° (diagonal x horizontal x vertical) |
| Field of View | 3.6 mm: 109° x 92°x 48° (diagonal x horizontal x vertical) |
| Iris Type | Fixed iris 2.8 mm: 0.9 m (3.0 ft) |
| Close Focus Distance | 3.6 mm: 1.6 m (5.2 ft) |
| Dori | |
| Distance | *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/ project design tool. |
| Video | |
| Frame Rate | TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/WDR/HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR/3D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Audio Interface | One channel built-in mic Video output choices of CVI/TVI/AHD/CVBS by one |
| Video Output | BNC port (DIP Switch) |
| Power | |
| Power Supply | DC 12V ±30% |
| Power Consumption | Max 4.0W (12V DC, IR on) |
| Environment | |
| Operating Temperature | condensation) –40°C to +60°C (–40°F to +140°F); 95% (non- < |
| Storage Temperature | condensation) |
| Protection Grade | IP67, IK10 |
| Structure | |
| Casing | pedestal |
| Camera Dimensions | φ106 mm × 50.3 mm ( φ4.17" × 1.98" ) |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.44 kg (0.97 lb) |
| Ordering Information | |
| Type | Part Number DH-HAC-HDBW2501FP-A 2.8 mm DH-HAC-HDBW2501FN-A 2.8 mm Starlight HDCVI IR Dome Camera |
| 5MP Camera | DH-HAC-HDBW2501FP-A 3.6 mm DH-HAC-HDBW2501FN-A 3.6 mm Junction Box PFA139 Wall Mount Bracket PFB204W Pole Mount Bracket PFA152-E Mount Adapter PFA106 Ceiling Mount Bracket PFB220C |
| Optional: | |
| Mount Adapter | Ceiling Mount Bracket Corner Mount PFB305W PFM800-4K PFM321D |
| Wall Mount Bracket | Passive HDCVI Balun 12V 1A Power Adapter PFM904 |
| Integrated Mount Tester | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
