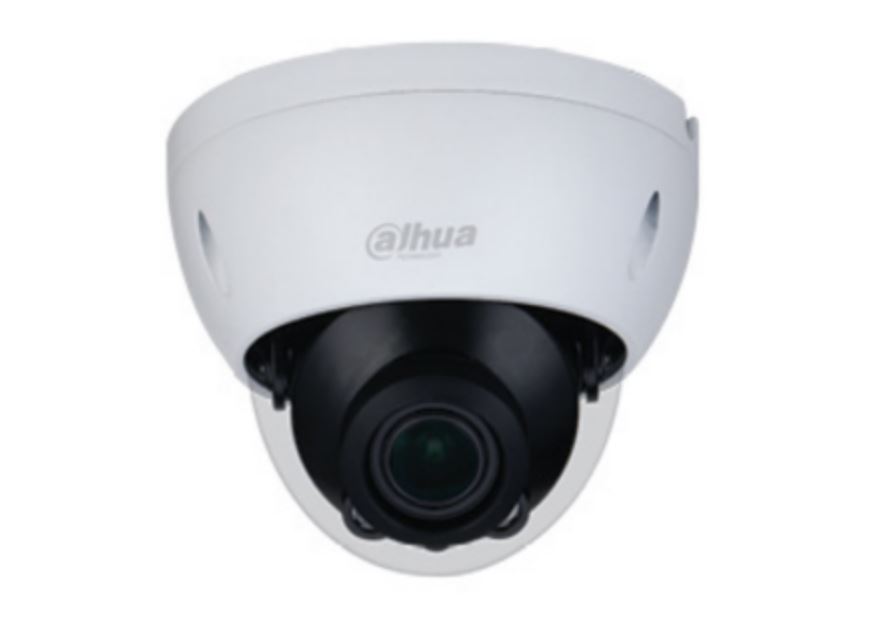

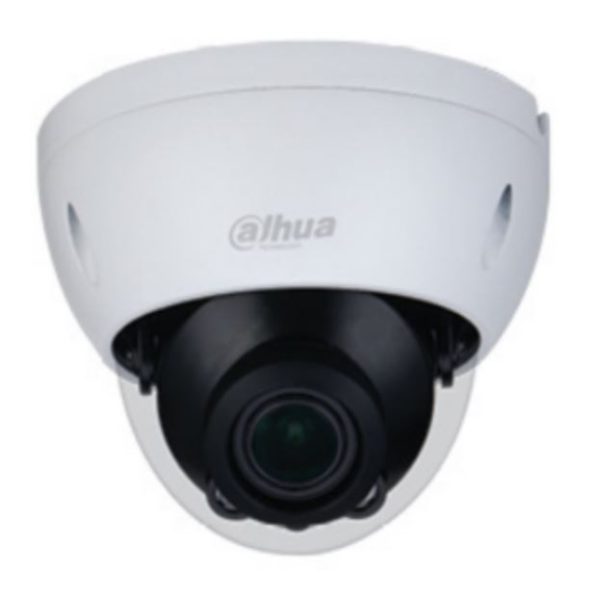

Telecamera HDCVI Dome IR 5MP Starlight
> Max 25 fps@5MP (uscita video 16:9)
I parametri e i datasheet sono forniti solo come riferimento e possono differire dal prodotto reale. Si prega di fare riferimento al prodotto fisico in caso di dubbi.
* Per utilizzare la telecamera HDCVI 5MP 16:9, il firmware dell’XVR deve essere aggiornato alla versione V4.001.0000001.0.R.200908 o successiva.
Datasheet
Manuali
| Model | HAC-HDBW1500R-Z-S2 |
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixel | 2880 (H) × 1620 (V), 5MP |
| Scanning System | Progressive |
| Electronic Shutter speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Min. Illumination | 0.005 Lux/F1.6, 30IRE, 0 Lux IR on |
| S/N Ratio | > 65 dB |
| IR Distance | 30 m (98.4 ft) |
| IR On/Off Control | Auto; manual |
| IR LEDs | 2 |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355 |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–12 mm |
| Max. Aperture | F1.6 |
| Field of View | Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–55° |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.5 m (1.64 ft) |
| Video | |
| Frame Rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| General | |
| Power Supply | DC 12V ±30% |
| Power Consumption | Max 5.5W (12V DC, IR on) |
| Operating Conditions | –30°C to +60°C (–22°F to +140°F); < 95% (noncondensation) |
| Storage Conditions | –30°C to +60°C (–22°F to +140°F); < 95% (noncondensation) |
| Ingress Protection | IP67, IK10 |
| Casing | Metal throughout the whole casing |
| Dimensions | φ122 mm × 88.9 mm (φ4.8" × 3.5") |
| Net Weight | 0.47 kg (1.04 lb) |
| Gross Weight | 0.62 kg (1.34 lb) |
