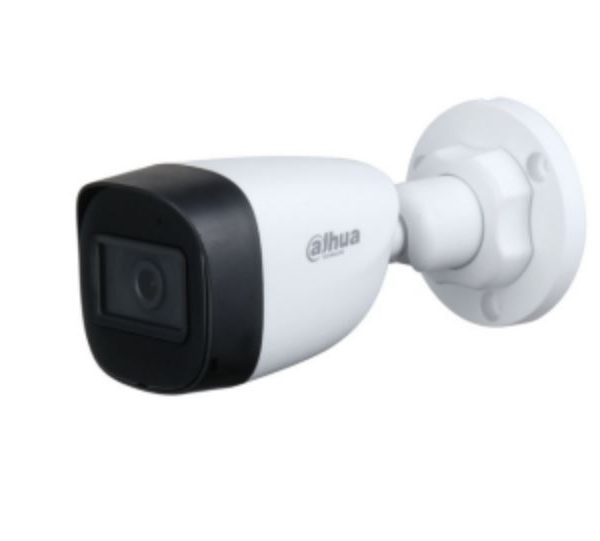

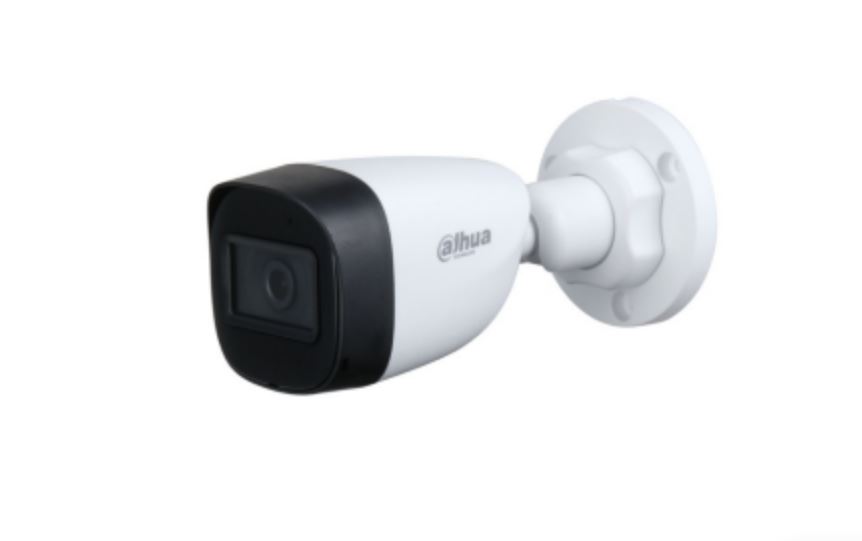

Dahua telecamera HDCVI da sorveglianza da esterno Dahua HAC-HFW1200C-S6 , VERSIONE S6 bullet con 4 tecnologie in 1: HDCVI / HDTVI / AHD / ANALOGICA, 1080P FULL-HD 2MP , ottica 3.6mm e sensore d’immagine 2 MP CMOS. Illumi
Telecamera da esterno HDCVI 4in1 – Dahua
4 Tecnologie in 1: HDCVI / HDTVI / AHD / ANALOGICA
Tecnologie switchabili tramite OSD Menù o UTC Controller (non incluso)
Risoluzione: 2Megapixel 2 MP FULL HD 1080P
Ottica Fissa 3.6mm
| Camera | |
| Image Sensor | 2 MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Scanning System | Progressive PAL: 1/25 s–1/100000 s |
| Electronic Shutter Speed | NTSC: 1/30 s–1/100000 s 0.01 lux@F2.0 (Color, 30 IRE) |
| Min. Illumination | 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 30 m (98.43 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 2 (IR light) Pan: 0°–360° |
| Angle Adjustment | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F2.0 2.8 mm: H: 102°; V: 60°; D: 129° |
| Field of View | 3.6 mm: H: 83°; V: 48°; D: 104° |
| Iris Control | Fixed 2.8 mm: 0.5 m (1.64 ft) |
| Close Focus Distance | 3.6 mm: 0.7 m (2.30 ft) |
| Dori | |
| Distance | 50.9 m 20.3 m 10.2 m 5.1 m 3.6 mm (166.99 ft) (66.60 ft) (33.46 ft) (16.73 ft) |
| Video | |
| Video Frame Rate | TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps; CVBS: PAL: 960H; NTSC: 960H |
| Resolution | 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | BLC; HLC; DWDR |
| WDR | DWDR |
| White Balance | Auto; Area white balance |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart IR |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
| Port | |
| Video Output | BNC port |
| Power | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Max 2.8 W (12 VDC, IR on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP67 |
| Structure | |
| Casing Material | Plastic |
| Product Dimensions | 161.3 mm × 69.7 mm × 70.0 mm (6.35" × 2.75" × 2.75") |
| Net Weight | 0.19 kg (0.55 lb) |
| Gross Weight | 0.29 kg (0.64 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
| Ordering Information | |
| Type | Model 2MP IR HDCVI Fixed-focal Bullet Camera, DH-HAC-HFW1200CP PAL |
| 2MP Camera | 2MP IR HDCVI Fixed-focal Bullet Camera, DH-HAC-HFW1200CN NTSC Junction Box PFA134 Water-proof Junction Box PFA130-E Pole Mount Bracket PFA152-E |
| Accessories | |
| (Optional) | 1 Channel Passive HDCVI Balun PFM800-E 12V 1A Power Adapter PFM321D Integrated Mount Tester PFM904 |
| Optional: | |
| PFA134 | Water-proof Junction Pole Mount |
| Junction | Box Bracket Box PFM321D |
| PFM800-E | PFM904 12V 1A Power |
| 1 Channel Passive | Integrated Mount Adapter |
| HDCVI Balun | Tester The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
