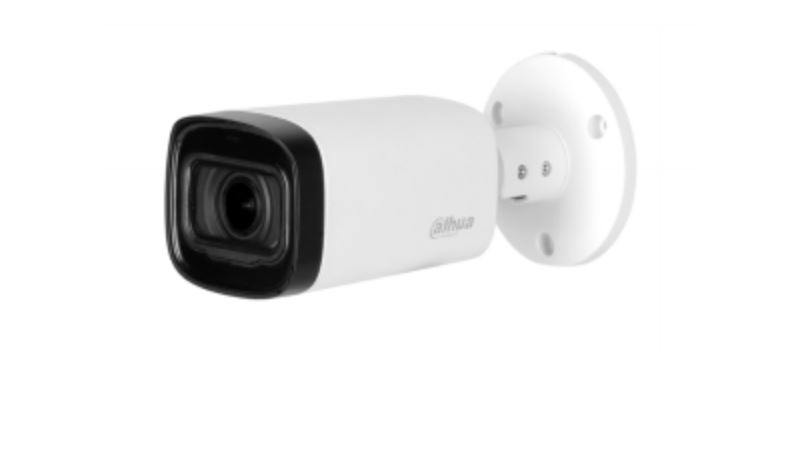

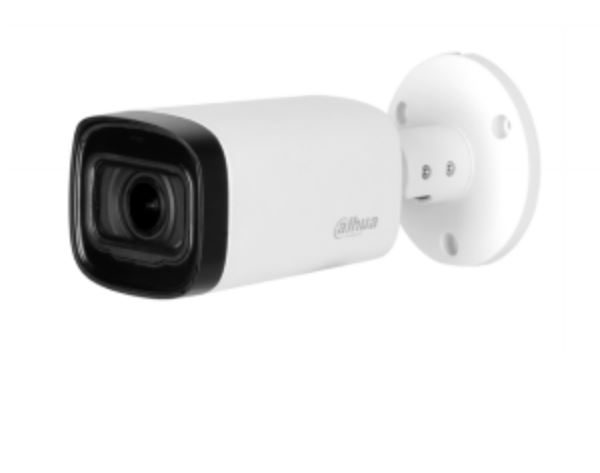

Telecamera HD CVI da sorveglianza da esterno Dahua HAC-HFW1200R-Z-S6 , VERSIONE S6 bullet con 4 tecnologie in 1: HDCVI / HDTVI / AHD / ANALOGICA, 1080P FULL-HD 2MP , ottica 2.7 mm–12 mm e sensore d’immagine 2MP CMOS. Ill
Telecamera da esterno HD CVI 4in1 – Dahua
4 Tecnologie in 1: HDCVI / HDTVI / AHD / ANALOGICA
Tecnologie switchabili tramite OSD Menù o UTC Controller (non incluso)
Risoluzione: 2Megapixel 2 MP FULL HD 1080P
Ottica vari focale motorizzata 2.7-12mm
| Camera | |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive PAL: 1/25s–1/100000s |
| Electronic Shutter Speed | NTSC: 1/30s–1/100000s |
| S/N Ratio | >65dB |
| Minimum Illumination | 0.02Lux/F1.9, 30IRE, 0Lux IR on |
| Fill Light Working Distance | 20 m (65.6 ft) |
| IR On/Off Control | Auto; manual |
| IR LED Number | 12 Pan: 0°–360° |
| Pan/Tilt/Rotation Range | Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.9 2.8 mm: 119° x 101° x 54° (diagonal x horizontal x vertical) |
| Field of View | 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) 6 mm: 60° x 56° x 30° (diagonal x horizontal x vertical) |
| Iris Type | Fixed iris 2.8 mm: 0.5 m (1.7 ft) |
| Close Focus Distance | 3.6 mm: 0.8 m (2.6 ft) 6 mm: 2 m (6.6 ft) |
| Dori | |
| Distance | 49.7 m 19.9 m 9.9 m 5 m 3.6 mm (163.1 ft) (65.3 ft) (32.5 ft) (16.4 ft) 82.8 m 33.1 m 16.6 m 8.3 m 6 mm (271.7 ft) (108.6 ft) (54.5 ft) (27.2 ft) |
| Video | |
| Frame Rate | TVI: 1080P@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H 1080P (1920×1080); 720P (1280×720); 960H (960× |
| Resolution | 576/960×480) |
| Day/Night | Auto switch by ICR |
| BLC | BLC/HLC/DWDR |
| WDR | DWDR |
| White Balance | Auto; manual |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 area, rectangle) |
| Port | |
| Video Output | BNC port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 3.1W (12V DC, IR on) |
| Environment | |
| Operating Temperature | condensation) -40°C to +60°C (-40°F to 140°F); <95% (non- |
| Storage Temperature | condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Plastic throughout the whole casing |
| Camera Dimensions | 154.3 mm × 69.8 mm × 69.8 mm ( 6.07" × 2.75" × |
| Net Weight | 0.15 Kg (0.33 lb) |
| Gross Weight | 0.22 Kg (0.49 lb) |
| Ordering Information | |
| Type | Part Number DH-HAC-HFW1200RP 2.8mm DH-HAC-HFW1200RN 2.8mm DH-HAC-HFW1200RP 3.6mm 2MP HDCVI IR Bullet Camera |
| 2MP Camera | DH-HAC-HFW1200RN 3.6mm DH-HAC-HFW1200RP 6mm DH-HAC-HFW1200RN 6mm Junction box PFA134 IP66 Junction Box (For use alone or with PFA130-E PFA152-E pole mount) Pole Mount Bracket (For use with PFA152-E PFA130-E junction box) |
| Optional: | |
| Junction box | IP66 Junction Box Pole Mount Bracket (For use alone or with (For use with PFB204W) PFA152-E pole mount) PFM800-E PFM321D PFM904 12V 1A Power Adapter |
| Passive HDCVI Balun | Integrated Mount Tester Pole Mount Wall Mount 1 Wall Mount 2 The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
