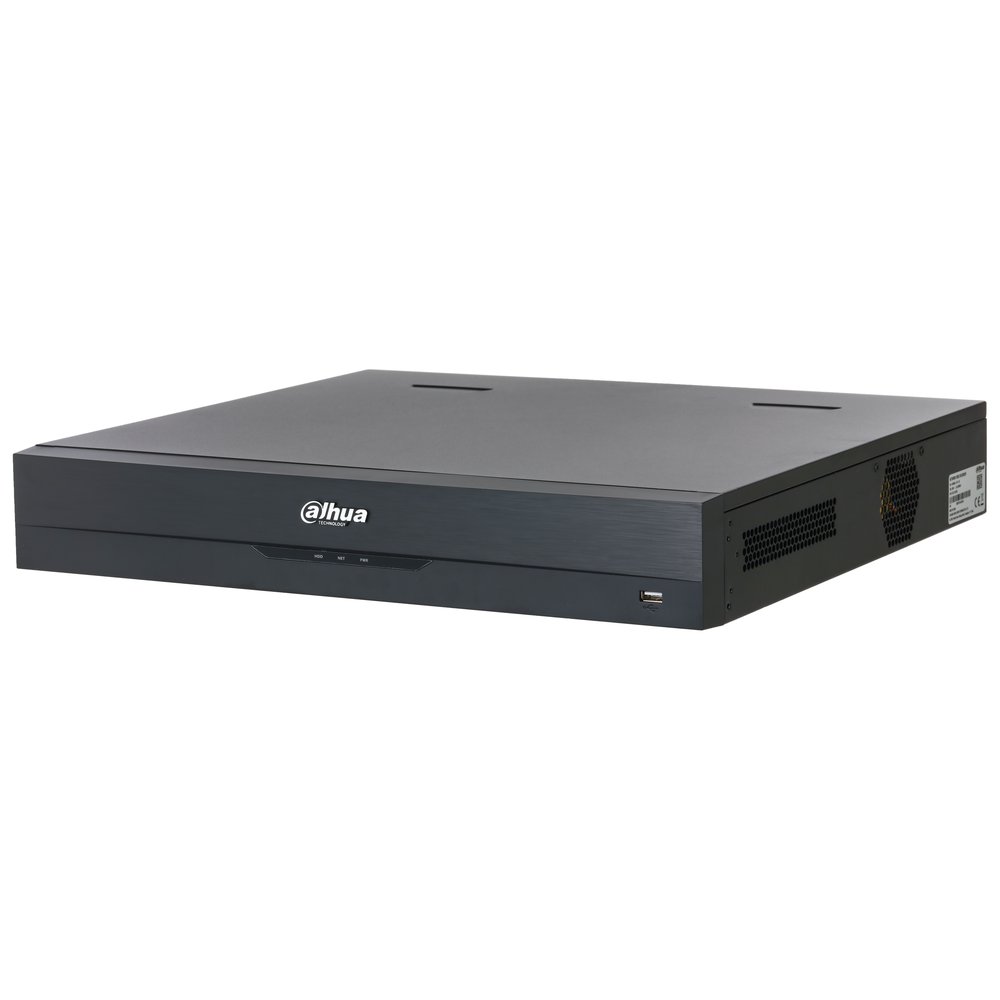

NVR IP AI WizSense 32 canali fino a 32 MP (encoding), 8 canali a 8 MP (decoding), max. banda 448 Mbps, H.265+, 4 uscite video (2 VGA + 2 HDMI), 16 ingressi e 6 uscite allarme, 1 ingresso e 2 uscite audio (RCA), predisposto per montaggio di 4 dischi SATA (fino a 20 TB cad.), 1 porta eSATA, 3 porte USB (1x 2.0 e 2x 3.0), 1 porta RS232, 1 porta RS485, 2 porte RJ-45 10/100/1000 Mbps, 8 canali protezione perimetrale, 4 canali face detection/face recognition, 16 canali SMD Plus, 4 canali AcuPick (con telecamera AcuPick), 4 canali metadati video, 1.5U, alimentazione 100-240 Vac <13 W senza Hard Disk
Datasheet
Manuali
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| Ai | |
| AI by Recorder | (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd |
| AI by Camera | distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection; AcuPick |
| by Recorder (Number of | 4 channels |
| by Camera (Number of | All channels (32 targets/s) |
| Perimeter Protection | |
| by Recorder (Number of | 8 channels, 10 IVS rules for each channel |
| AI by Camera (Number of | All channels (32 targets/s) |
| Face Detection | |
| Face Attributes | beard |
| Performance of AI by | 4 channels (up to 12 face images/s each channel) |
| Performance of AI by | All channels (32 targets/s) |
| Face Recognition | |
| Face Database Capacity | address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition | 1. 24-channel FD (by camera) + FR (by recorder), image |
| Performance of AI by | stream: 24 face images/s |
| Recorder (Number of | 2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s |
| Performance of AI by | All channels (32 targets/s) |
| Smd | |
| SMD Plus by Recorder | vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (64 targets/s) |
| Video Metadata | |
| AI by Recorder (Number of | 4 channels, 22 attributes extraction. |
| AI by Camera (Number of | All channels (16 targets/s) |
| Channels) | Top color, top type, bottom color, bottom type, hat, bag, |
| People Attributes | age, gender and umbrella License plate, plate color, vehicle body, vehicle model, |
| Motor Vehicle Attributes | vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location |
| Non-motor Vehicle | Vehicle model, vehicle color, number of persons, helmet |
| ANPR by Camera (Number | All channels (8 targets/s) |
| License Plate Database | 1. Create up to 20,000 plate numbers. |
| Capacity | 2. Blocklist and allowlist |
| Audio And Video | |
| Access Channel | 32 channels AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing |
| Network Bandwidth | AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 |
| Resolution | MP;1080p;720p;960p;D1;CIF;QCIF AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps; 20-channel 4 MP@30 fps; 32-channel 1080p@30 fps |
| Decoding Capability | AI enabled: 1-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps 2 VGA, 2 HDMI VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 HDMI: 7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Video Output | Heterogeneous video source output for HDMI1 and HDMI2 Simultaneous video source output for VGA1 and HDMI1 Simultaneous video source output for VGA2 and HDMI2 Main Screen: 1/4/8/9/16/25/36 |
| Multi-screen Display | Sub Screen: 1/4/8/9/16 ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; |
| Third-party Camera Access | Hanwha |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Mobile Phone Access | iOS; Android ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); |
| Interoperability | CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox Multi-address; load balance; fault tolerance; link |
| Network Mode | aggregation |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network Instant playback, general playback, event playback, |
| Playback Mode | target Video, video clip, tag playback, smart playback (face and motion detection) |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | external alarm; network alarm; scene changing; PIR alarm; thermal alarm Error (no disk; disk error; low space; low quota space; abnormal disk health; network disconnection; IP |
| Anomaly Alarm | conflict; MAC conflict; abnormal fan speed); video loss; video tampering; camera offline; audio detection Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non- motor vehicles); SMD Plus; stereo analysis; crowd |
| Intelligent Alarm | distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection Record; snapshot (panoramic); local alarm output; IPC |
| Alarm Linkage | external alarm output; audio; buzzer; log, preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels ） |
| Alarm Output | 6 channels (1-channel 12 V 1 A output 4 SATA ports, each disk can contain up to 20TB. |
| Disk Interface | This limit varies depending on the environment temperature. |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 3 (1 front USB 2.0 port, 2 rear USB 3.0 port) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General | |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Net Weight | 4.27 kg (9.41 lb) |
| Gross Weight | 6.30 kg (13.89 lb) 440.0 mm × 415.6 mm × 76.0 mm (17.32" × 16.36" × |
| Product Dimensions | 2.99") (W × D × H) 529.0 mm × 499.0 mm × 211.0 mm (20.83" × 19.65" × |
| Packaging Dimensions | 8.31") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; |
| Ordering Information | |
| Type | Model Description 32CH 1.5U 4HDDs |
| NETWORK VIDEO | DHI-NVR5432-EI2 WizSense Network Video |
| RECORDER | Recorder 4 Bay eSATA Extension ESS1504C Cabinet |
| Accessories (Optional) | DHI-ARB1606 Alarm Box DHI-RailBracket60/L- Dahua Server Cabinet Rail Shaped Bracket |
| Accessories | |
| Optional: | DHI-RailBracket60/L- |
| ESS1504C | DHI-ARB1606 Shaped |
| 4 Bay eSATA Extension | Alarm Box Dahua Server Cabinet Rail |
| Cabinet | Bracket |
