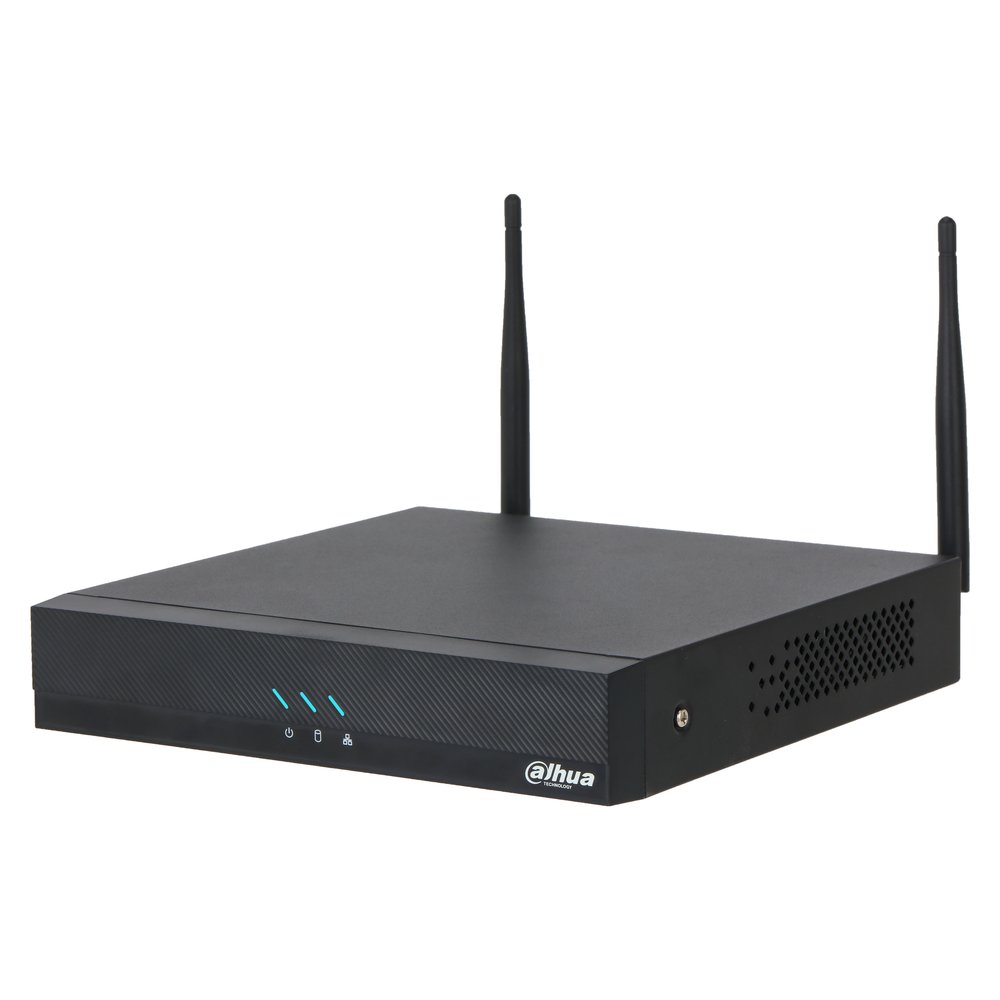

NVR 8 canali IP fino a 16 MP (recording), 1 canale a 16 MP/8 canali a 1080p (encoding), max. banda 80 Mbps, H.265+, 2 uscite video (1 VGA + 1 HDMI), 1 ingresso e 1 uscita audio, 1 porta SATA per HDD fino a 20 TB, 2 porte USB 2.0, 1 porta RJ-45 10/100 Mbps, connessione Wi-Fi 6, Cooper 1U, alimentazione 12 Vdc <6 W senza Hard Disk
| System | |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| Ai | |
| AI by Recorder | SMD Plus |
| AI by Camera | Perimeter protection; SMD |
| Perimeter Protection | |
| AI by Camera (Number of | All channels (8 targets/s) |
| Smd | |
| SMD Plus by Recorder | vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD by Camera | All channels (16 targets/s) |
| Audio And Video | |
| Access Channel | 8 channels AI disabled: 80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing |
| Network Bandwidth | AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; |
| Resolution | 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF AI disabled: 1-channel 16 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps; 5-channel 4 MP@30 fps; 6-channel 3 MP@30 fps; 8-channel 2 MP@30 fps |
| Decoding Capability | AI enabled: 1-channel 12 MP@30 fps; 2-channel 6 MP@30 fps; 3-channel 4 MP@30 fps; 4-channel 3 MP@30 fps; 6-channel 1080p@30 fps; 8-channel 720p@30 fps 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × |
| Video Output | 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | 1/4/8/9 |
| Third-party Camera Access | ONVIF |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 24.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE; Safari; Edge; Firefox |
| Wi-Fi | |
| Wi-Fi Standard | 802.11b/g/n/a/ac/ax 2400-2483.5MHz, 5150-5350MHz, 5470-5725MHz, |
| Frequency Range | 5725-5850MHz CE EIRP: ≤20dBm@2400-2483.5MHz; ≤23dBm@5150-5250MHz; |
| Transmitter Power (EIRP) | ≤20dBm@5250-5350MHz; ≤27dBm@5470-5725MHz; ≤14dBm@5725-5850MHz |
| Recording Playback | |
| Multi-channel Playback | Up to 8 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network Instant playback; general playback; event playback; tag |
| Playback Mode | playback; smart playback |
| Alarm | |
| General Alarm | Motion detection; camera external alarm; PIR alarm Error (no disk, disk error, low space, low quota space; |
| Anomaly Alarm | network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
| Intelligent Alarm | Perimeter protection; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |
| Port | |
| Disk Interface | varies depending on the environment temperature. |
| USB | 2 (2 rear USB 2.0 ports) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
| Antenna | 2 |
| General | |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | <6 W (without HDD) |
| Net Weight | 0.57 kg (1.26 lb) |
| Gross Weight | 0.98 kg (2.16 lb) 197.0 mm × 234.0 mm × 41.5 mm (7.76" × 9.21" × |
| Product Dimensions | 1.63") (W × D × H) 332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × |
| Packaging Dimensions | 2.52") (W × D × H) |
| Operating Temperature | –10 °C to +45 °C (+14 °F to +113 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH), non-condensing CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN |
| Ordering Information | |
| Type | Model Description Dahua 8CH 1HDD Cooper |
| NETWORK VIDEO | DHI-NVR2108HC-W 1U WIRELESS NETWORK |
| RECORDER | RECORDER |
