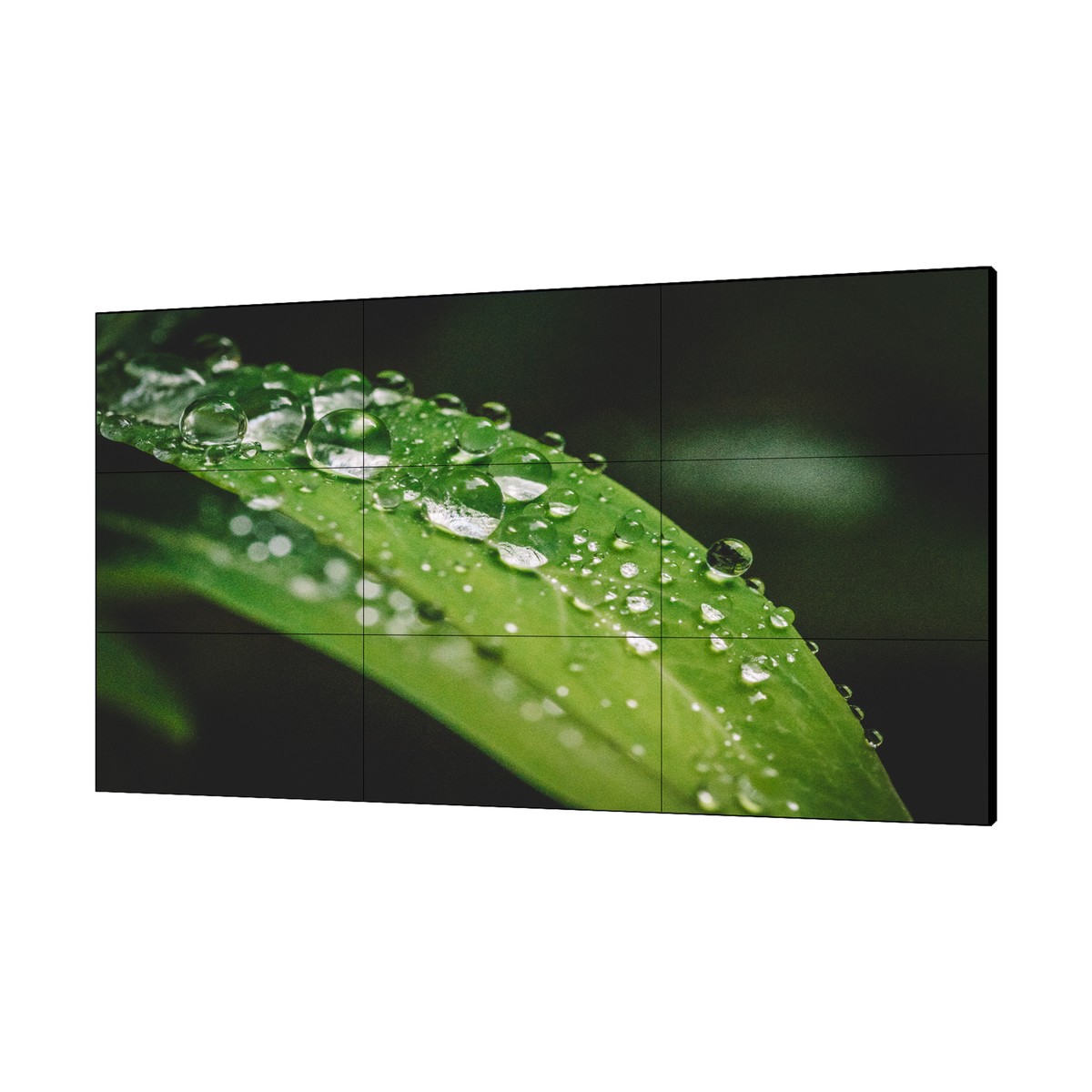

Pannello video wall 55" cornice 3.5 mm 500 nit
Pannello video wall DLED da 55" FHD formato 16:9, tecnologia LCD ADS, spessore cornice 3.5 mm (2.3 mm T/L + 1.2 mm B/R), risoluzione 1920×1080, contrasto 1200:1, luminosità 500 nit, angolo di visione 178°/178°, ingressi: 1 VGA (D-sub), 1 DVI-D, 2 HDMI, 1 DP, 1 audio, 1 IR. uscite: 1 DP, 1 RS232, 1 audio, supporto daisy chain UHD, VESA 600×400 mm, M6, alimentazione 100~240 Vac <180 W, MTBF 50000 h
Datasheet
| Model | |
| Model | DHI-LS550UCM-UF |
| Display | |
| Diagonal Size | 55"(16:9) |
| Panel Type | ADS 1920×1080 (FHD) |
| Bezel width | 2.3mm (T/L), 1.2mm (B/R) |
| Backlight | Direct LED |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1200:1 |
| Pixel Density | 40dpi |
| Viewing Angle | H178°, V178° |
| Response time (G-to-G) | 8ms |
| Color Depth | 8bit (16.7M) |
| Color Temperature | 10,000K |
| Surface Treatment | Haze 25%, 3H |
| MTBF | 50,000h |
| Signals | |
| Input | IR×1 |
| Output | DP×1, RS232×1, Audio×1 |
| General | |
| Power Supply | AC100V AC240V, 50/60 Hz ～ |
| Power Consumption (Standby) | <0.5W |
| Power Consumption (Typical) | 140W |
| Power Consumption (Max.) | 180W |
| Energy Efficiency Class (EU) | G |
| Installation Mode | Floor-standing, wall-mounted |
| Wall Mount VESA | 600×400mm,M6 Infrared, RS232 dual mode, supporting remote |
| Control Mode | control by computer |
| Gross Weight | 31.1kg (68.6Ib) |
| Net Weight | 21.3kg (47.0Ib) |
| Product Dimension (W×H×D) | 1213.5mm×684.3mm×126.0mm (47.8"×26.9"×5.0") |
| Package Dimension (W×H×D) | 1360mm×945mm×280mm (53.5"×37.2"×11.0") Temperature 0 ~+50 ℃ ℃ |
| Operating Environment | 20%RH~80%RH (non- Humidity condensing) |
| Dimensions(Mm) | |
| 684.3 [26.94] | 142.2 [5.60] 383.0 [15.08] 417.3 [16.43] 306.7 [12.07] 600.0 [23.62] |
| 30.0 [1.18] | 400.0 [15.75] 15.0 [0.59] |
| 10 | 30.0 [1.18] 30.0 [1.18] 600.0 [23.62] The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
