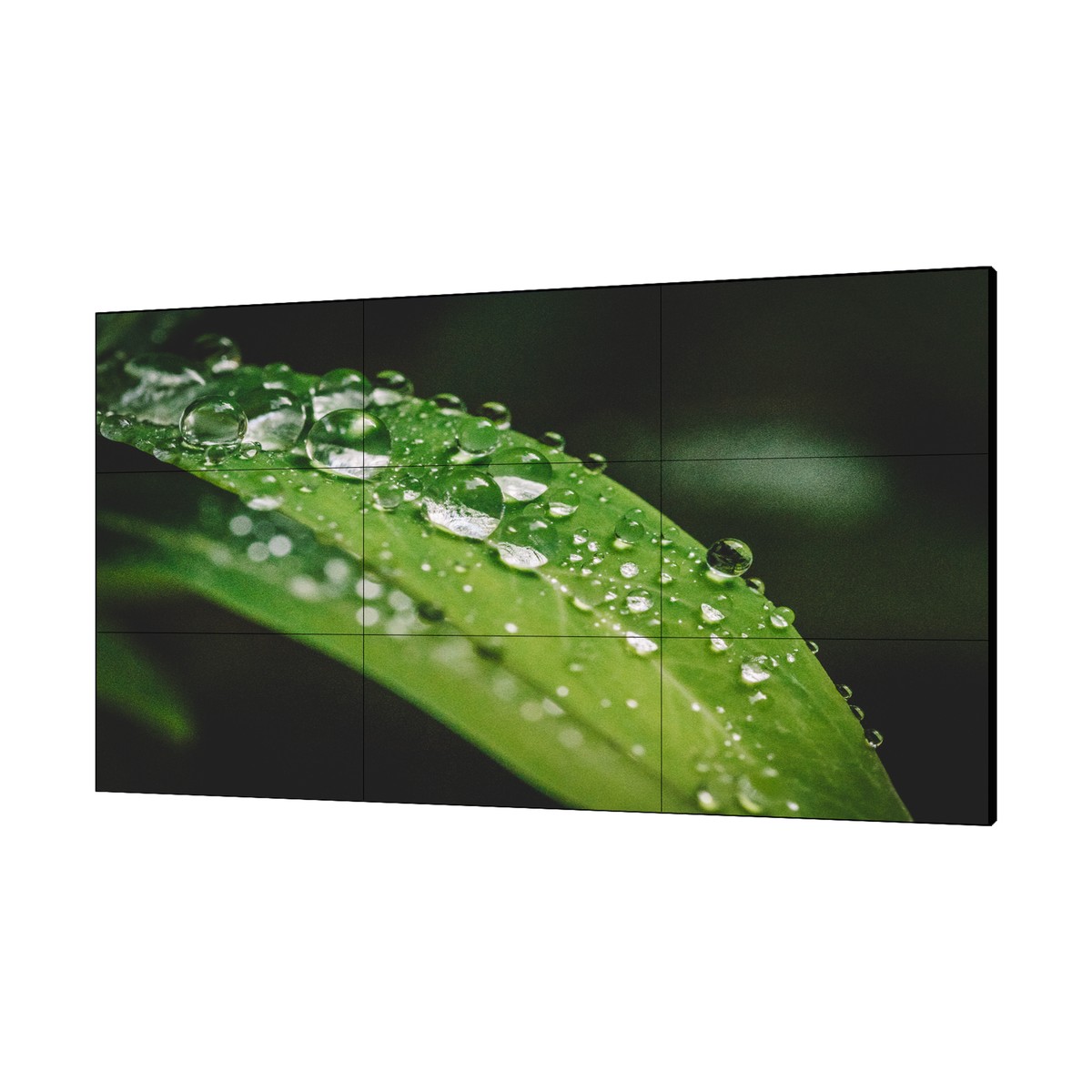

Pannello video wall 55" cornice 0.88 mm 700 nit
Pannello video wall DLED da 55" FHD formato 16:9, pannello IPS, spessore cornice 0.88 mm, risoluzione 1920×1080, contrasto 1200:1, luminosità 700 nit, angolo di visione 178°/178°, 2 HDMI 2.0, 1 DP 1.4, 1 VGA, 1 DVI, 1 RS232 in, 1 IR, 1 audio in, 1 RS232 out, 1 DP out, 1 audio out, supporto daisy chain HDMI, VESA 600×400 mm, alimentazione 100~240 Vac <215.1 W
Datasheet
| Display | |
| Model | DHI-LS550UEH-UF |
| Screen Size | 55 inch |
| Viewing Size | 1210.48 (H) × 681.28 (V) mm |
| Lifespan | 50,000 hrs |
| Backlight | DLED |
| Aspect Ratio | 16:9 |
| Color Temperature | 10000 K ± 1000 K |
| Brightness | 700 cd/m² |
| Static Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 45,000:1 |
| H-Scanning Frequency | 52.8 kHz–70 kHz |
| V-Scanning Frequency | 47 Hz–63 Hz |
| Maximum Pixel Frequency | 75 MHz |
| Pixel Pitch | 0.21 mm × 0.63 mm (0.01" × 0.02") |
| Resolution | 1920 (H) × 1080 (V) |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Display Color | 8 Bit |
| Color Gamut | 72% NTSC (typ.) |
| Viewing Angle | 178° (H) / 178° (V) |
| LCD Technology | ADS |
| Surface Treatment | Haze 25%, 3H |
| Device Ports | |
| Input Port | 1 × DP 1.4 (3840 × 2160@60 Hz), 1 × VGA (1920 × 1080@60 Hz), 1 × DVI (3840 × 2160@30 Hz), 1 × RS-232 in, 1 × IR, 1 × Audio in 1 × RS-232 out, 1 × DP out (3840 × 2160@30 Hz), 1 × |
| Output Port | Audio out |
| General | |
| Power Supply | 100–240 VAC (±10%), 50/60 Hz |
| Power Consumption | 212.5 W (basic), 214 W (typ.), 215.1 W (max) |
| Standby Power | <0.5 W |
| Consumption | Supports being controlled through the RS-232 serial port |
| Control Mode | and infrared remote control. |
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Operating Humidity | 10%–80% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity | 5%–90% (RH) |
| Operation Hours | 7 × 24 hrs 1,210.5 mm × 681.3 mm × 116.7 mm (47.66" × 26.82" × |
| Product Dimensions | 4.59") (L × H × W) 1,360 mm × 945 mm × 280 mm (53.54" × 37.20" × |
| Packaging Dimensions | 11.02") (L × H × W) |
| Bezel Width | 0.48 mm (U/L), 0.4 mm (R/B) |
| Net Weight | 23.1 kg (50.93 lb) |
| Gross Weight | 34.1 kg (75.18 lb) |
| Wall Mount VESA | 600 mm × 400 mm (23.62" × 15.75") 1 × Power Cord (European Standard) 1 × Network Cable 1 × DP Cable 1 × Legal and Regulatory Information 1 × User's Manual |
| Accessory | 2 × Dry Cell 1 × ERP Energy Label 1 × QR Code 1 × Product Operating Instruction 1 × Remote Control |
| Optional Accessory | Wall mount |
| Ordering Information | |
| Type | Model Description Dahua 55 inch 0.88mm LCD |
| LCD Display Wall Unit | Display Wall Unit (LCD DHI-LS550UEH-UF |
| (LCD DISPLAY) | DISPLAY) |
| /n | Pictures in the document are for reference only, and the actual product shall prevail. |
