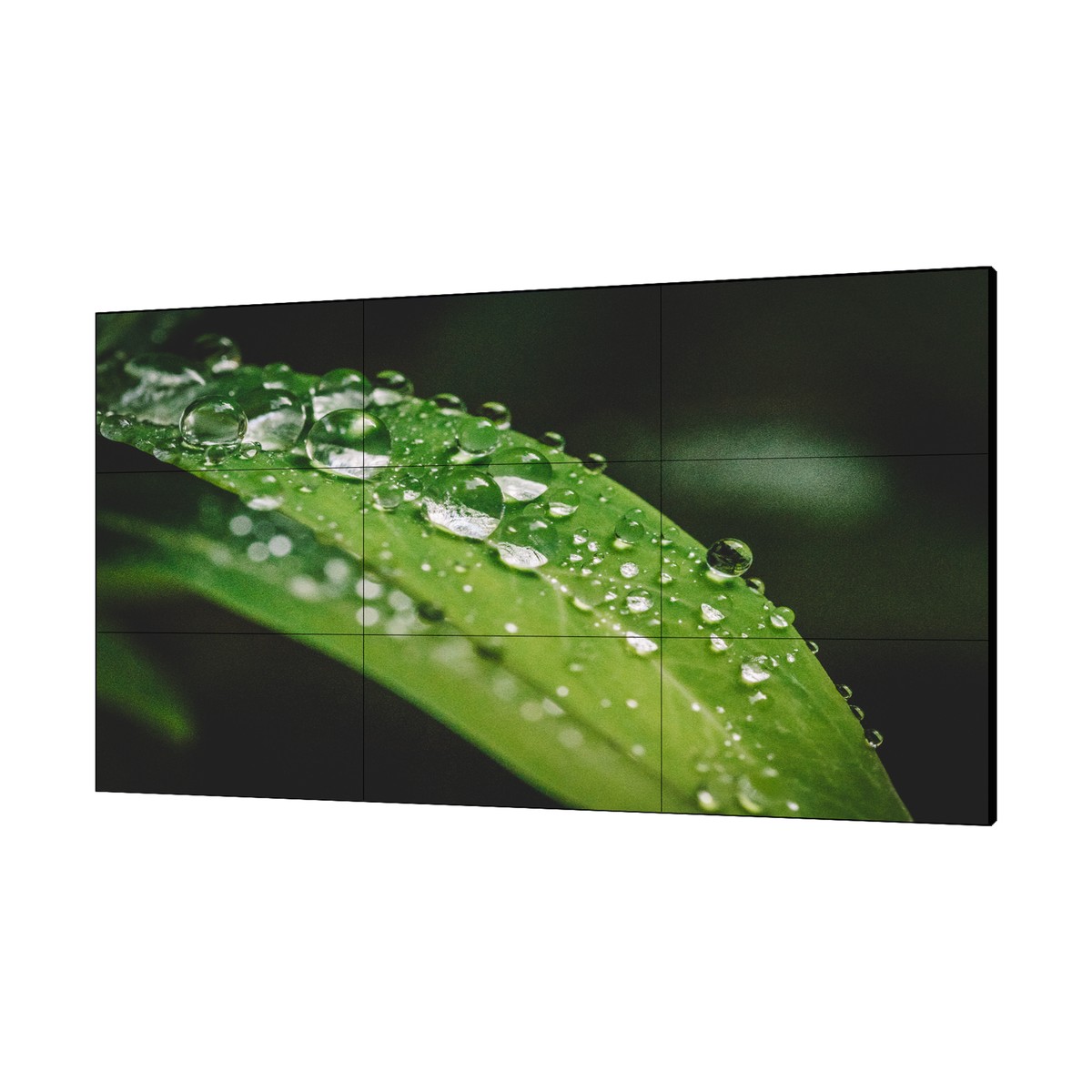

Pannello video wall 46" cornice 1.7 mm 500 nit
Pannello video wall DLED da 46" FHD formato 16:9, tecnologia LCD ADS, spessore cornice 1.7 mm (0.9 mm U/L + 0.8 mm R/B), risoluzione 1920×1080, contrasto 1200:1, luminosità 500 nit, angolo di visione 178°/178°, ingressi: 1 VGA (D-sub), 1 DVI-D, 2 HDMI, 1 DP, 1 RS232, 1 audio, 1 IR, uscite: 1 DP, 1 RS232, 1 audio, supporto daisy chain HDMI, VESA 600×400 mm, M6, alimentazione 100~240 Vac <140 W, tempo medio fra i guasti 50000 h
Datasheet
| Model | |
| Model | DHI-LS460UDM-UF |
| Display | |
| Diagonal Size | 46"(16:9) |
| Panel Type | ADS |
| Resolution | 1920×1080 (FHD) B2B: 1.7mm (Panel Bezel to Panel Bezel), 0.9mm (T/L), 0.8mm (B/R) |
| Bezel width | A2A: 2.45mm (Active area to Active area), 1.5mm (T/L), 0.95mm (B/R) |
| Backlight | Direct LED |
| Brightness | 500 cd/m² |
| Contrast Ratio | 1200:1 |
| Pixel Density | 48dpi |
| Viewing Angle | H178°, V178° |
| Response Time (G-to-G) | 8ms |
| Color Depth | 8bit (16.7M) |
| Color Temperature | 10,000K |
| Surface Treatment | Haze 25%, 3H |
| MTBF | 50,000h |
| Signals | |
| Input | IR×1 |
| Output | DP×1, RS232×1, Audio×1 |
| General | |
| Power Supply | AC100V AC240V, 50/60 Hz ～ |
| Power Consumption (Standby) | <0.5W |
| Power Consumption (Typical) | 120W |
| Power Consumption (Max.) | 140W |
| Energy Efficiency Class (EU) | G |
| Installation Mode | Floor-standing, wall-mounted |
| VESA | 600×400mm, M6 Infrared, RS232 dual mode, supporting remote |
| Control Mode | control by computer |
| Gross Weight | 25.1kg (55.3Ib) |
| Net Weight | 17.9kg (39.5Ib) |
| Product Dimension (W×H×D) | 1021.2mm×575.8mm×122.7mm (40.2"×22.7"×4.8") |
| Package Dimension (W×H×D) | 1200mm×815mm×265mm (47.2"×32.1"×10.4") Temperature 0 ~+50 ℃ ℃ |
| Operating Environment | 10%RH~80%RH (non- Humidity condensing) |
