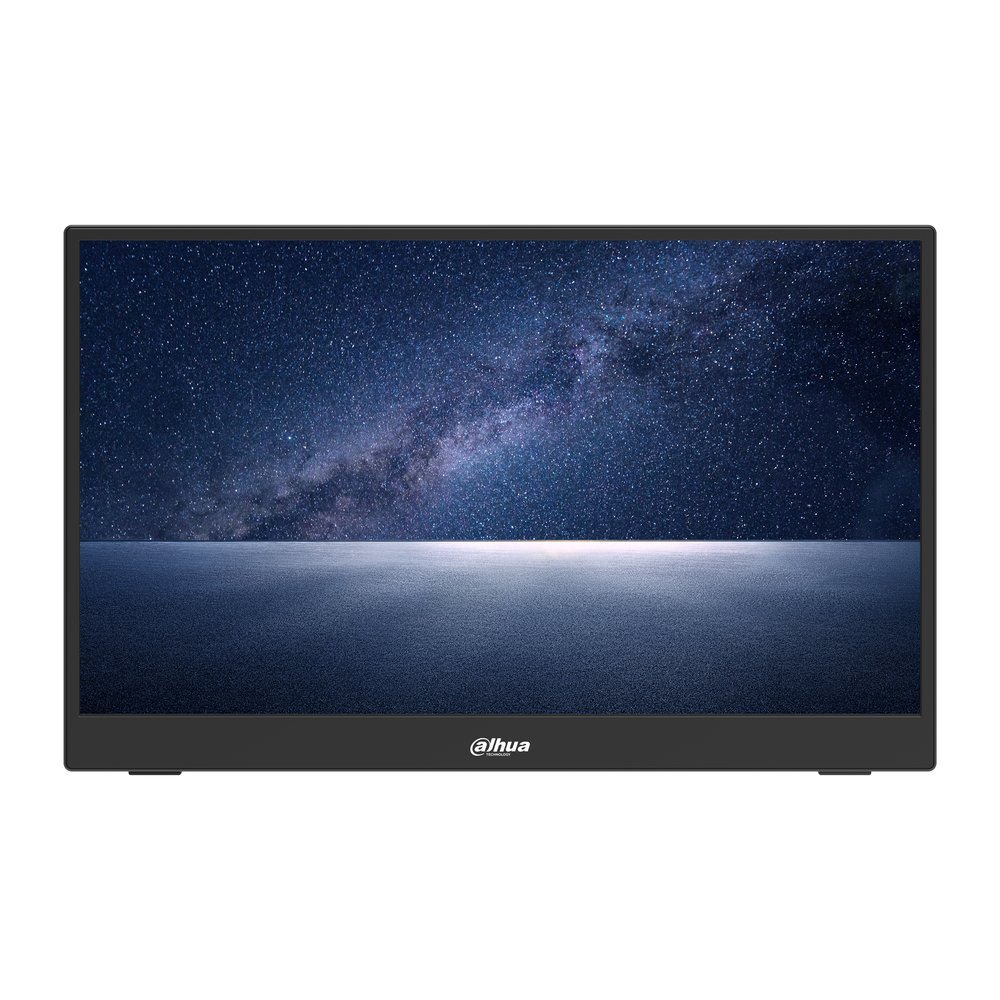

Monitor portable 15.6" Full HD, formato 16:9, risoluzione 1920×1080, contrasto 1000:1, luminosità 250 nit, angolo di visione 178°/178°, ingressi: 2 Type-C, 1 HDMI 1.4, 1 uscita audio, 2 speaker 1 W, VESA 75mm, alimentazione 5 Vdc <8.2 W
Datasheet
Manuali
| Display | |
| Model | DHI-LM16-F201PD |
| LCD Technology | IPS |
| Backlight | ELED |
| Screen Size | 15.6 inch |
| Aspect Ratio | 16:9 |
| Viewing Size | 344.16 (H) × 193.59 (V) mm |
| Screen-to-Body Ratio | ≥80% |
| Viewing Angle | 178° (H)/178° (V) |
| Display Mode | Horizontal |
| Pixel Pitch | 0.17925 mm × 0.17925 mm (0.00706" × 0.00706") |
| Pixels Per Inch | 141.21 |
| Resolution | 1920 (H) × 1080 (V) |
| Refresh Rate | 60 Hz |
| Display Color | 16.7M colors (6 bits + FRC) |
| Color Gamut | 45% NTSC |
| Brightness | 250 cd/m² (max) |
| Contrast Ratio | 1000:1 |
| Response Time | 6 ms |
| Lifespan | 30,000 hrs |
| Operation Hours | 7 × 16 H |
| Surface Treatment | Haze 25%, 3H |
| Low Blue Light | Software blue light protection |
| Device Ports | |
| Input Port | 1080@60 Hz) |
| Output Port | 1 × Audio out |
| Speaker | 2 × 1 W |
| Power Supply | 5 VDC, 3 A |
| Power Type | External power adapter (without adapter) |
| Power Consumption | 7.5 W (basic), 7.5 W (typ.), 8.2 W (max) |
| Standby Power | <0.5 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 10% – 85% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity | 5% – 90% (RH) |
| General | |
| Inclined Angle | 90° 358.0 mm × 226.4 mm × 12.1 mm (14.09" × 8.91" × |
| Product Dimensions | 0.48") (W × H × D) 398 mm × 283 mm × 59 mm (15.67" × 11.14" × 2.32") |
| Package Size | (W × H × D) U/L/R/D: 6.7 mm/6.7 mm/6.7 mm/22.8 mm(0.26" / |
| Frame Width | 0.26" / 0.26" / 0.90") |
| Net Weight | 0.73 kg (1.63 lb) |
| Gross Weight | 1.3 kg (2.87 lb) |
| Casing Color | Black |
| Control Mode | Four-button |
| Status Indicator Light | Yes |
| Wall Mount VESA | 75 mm (2.95") Type-C cable (full-function), HDMI cable, user manual |
| Accessory | (QR code sticker), QSG, regulatory manual, energy efficiency label, storage bag |
| Optional Accessory | Wall mount |
| Ordering Information | |
| Type | Model Description Dahua 15.6'' FHD Portable |
| Portable Monitor | DHI-PM16-F201PD Monitor |
