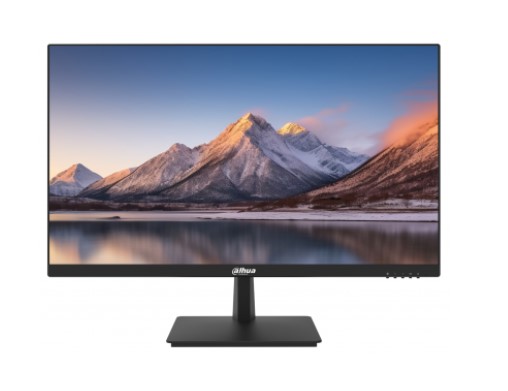

Monitor ELED Full HD da 24" formato 16:9 in housing plastico, risoluzione 1920×1080, contrasto 3000:1, luminosità 250 cd/m2, angolo di visione 178°/178°, ingressi: 1 VGA, 1 HDMI, VESA 100×100 mm, alimentazione 12 Vdc <18 W, operatività 24/7
Datasheet
Manuali
| Display | |
| Model | DHI-LM24-L200N |
| LCD Technology | VA |
| Backlight | ELED |
| Screen Size | 23.8 inch |
| Aspect Ratio | 16:9 |
| Viewing Size | 527.04 (H) × 296.46 (V) mm |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Mode | Horizontal |
| Pixel Pitch | 0.2745 mm × 0.2745 mm |
| Pixels Per Inch | 92.55 |
| Resolution | 1920 (H) × 1080 (V) |
| Refresh Rate | 100 Hz |
| Display Color | 8 bit |
| Color Gamut | 72% NTSC (typ.) |
| Brightness | 250 cd/m² (typ.) |
| Contrast Ratio | 3000:1 |
| Response Time | OD 5 ms |
| Standby Power | <0.5 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 10% – 85% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity | 5%–90% (RH) |
| General | |
| Inclined Angle | –5° ± 2°/15° ± 2° 540.4 mm × 325.2 mm × 53.6 mm (21.28" × 12.80" × |
| Product Dimensions | 2.11") (W × H × D) without base 601 mm × 400 mm × 145 mm (23.66" × 15.75" × 5.71") |
| Package Size | (W × H × D) U/L/R/D: 2.6 mm/2.6 mm/2.6 mm/20.6 mm (0.10"/ |
| Frame Width | 0.10"/0.10"/0.81") |
| Net Weight | 2.8 kg (6.17 lb) |
| Gross Weight | 4.0 kg (8.82 lb) |
| Casing Color | Black |
| Control Mode | Five-button |
| Wall Mount VESA | 100 mm × 100 mm (3.94" × 3.94") Power adapter, base, HDMI cable, user's manual (QR |
| Accessory | code), QSG, legal and regulatory information, etc. |
| Optional Accessory | Wall mount |
| Ordering Information | |
| Type | Model Description Dahua 23.8 inch LED |
| LED Monitor | DHI-LM24-L200N Monitor |
