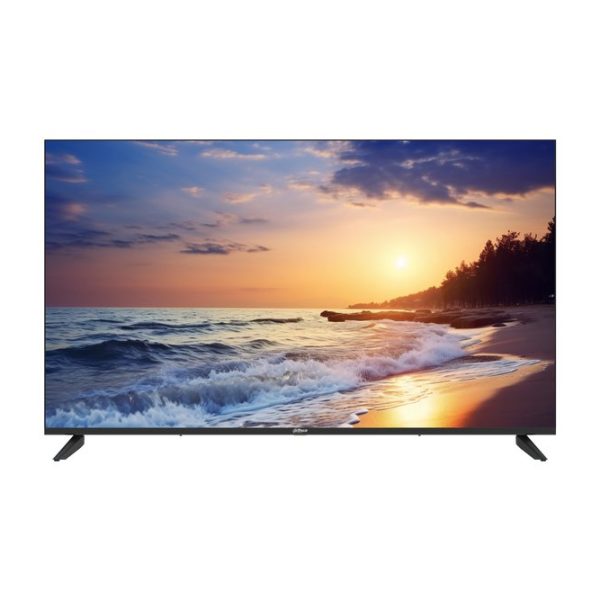

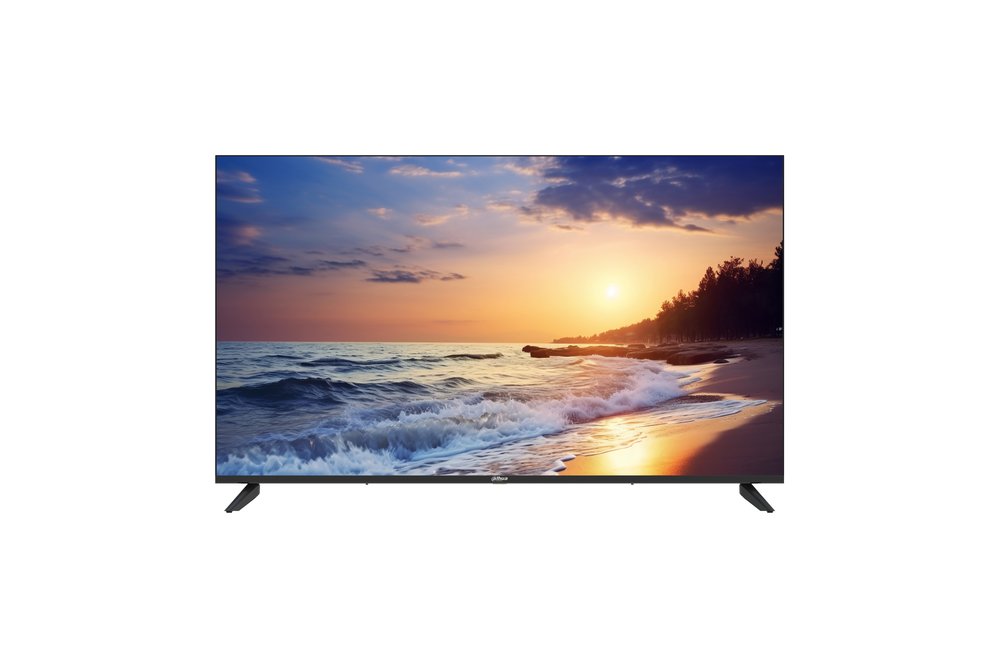

Monitor LED UHD Dahua 50″
> Risoluzione 4K Ultra-HD
> Pannello IPS, adatto al funzionamento continuo 24/7
> Design con cornice ultra-sottile, aspetto elegante
Datasheet
Manuali
| Display | |
| Model | DHI-LM50-F400N |
| LCD Technology | IPS |
| Backlight | DLED |
| Screen Size | 50 inch |
| Aspect Ratio | 16:9 |
| Viewing Size | 1095.84 (W) × 616.41 (H) mm |
| Screen-to-Body Ratio | ≥95% |
| Viewing Angle | 178° (H) / 178° (V) |
| Display Mode | Horizontal |
| Pixel Pitch | 0.285 mm × 0.285 mm |
| Pixels Per Inch | 89 |
| Resolution | 3840 (H) × 2160 (V) |
| Refresh Rate | 60 Hz |
| Display Color | 8 bit + FRC |
| Color Gamut | 72% NTSC |
| Brightness | 400 cd/m² (typ.) |
| Contrast Ratio | 1200:1 |
| Input Port | 1080@60 Hz), 2 × USB 2.0, 1 × Audio in, 1 × RS-232 in |
| Output Port | 1 × Audio out |
| Speaker | 2 × 10 W |
| Power Supply | 100–240 VAC (±10%), 50/60 Hz |
| Power Type | Built-in Power |
| Power Consumption | 64 W (basic), 89 W (typ.), 94 W (max) |
| Standby Power | <0.5 W |
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Operating Humidity | 10%–85% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity | 5%–90% (RH) |
| General | |
| Product Dimensions | 3.22") (W × H × D), without base 1,190 mm × 750 mm × 125 mm (46.85" × 29.53" × |
| Package Size | 4.92") (W × H × D) |
| Frame Width | U/L/R/D: 1.1 mm/1.1 mm/1.1 mm/15.3 mm |
| Net Weight | 8.60 kg (18.96 lb) |
| Gross Weight | 11.60 kg (25.57 lb) |
| Casing Color | Black |
| Control Mode | Remote Control, RS-232 |
| Status Indicator Light | Yes |
| Wall Mount VESA | 200 mm × 300 mm (7.87" × 11.81") Power cord, base, HDMI cable, remote control, user's |
| Accessory | manual, legal and regulatory information etc. |
| Optional Accessory | Wall mount |
| Ordering Information | |
| Type | Model Description Dahua 50" UHD LED |
| LED Monitor | DHI-LM50-F400N Monitor |
