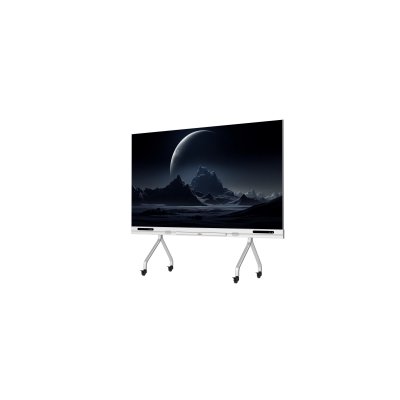

LED Commercial All-in-One, cabinet in alluminio pressofuso, pixel pitch 1.56 mm, risoluzione 1920×1080, dimensioni display 135", contrasto 10000:1, luminosità 600 nit, angolo di visione 160°/160°, IP30, Android 11, 1 RJ45, 4 USB 3.0, Bluetooth, Wi-Fi 6, 2 HDMI, Type-C, 4 speaker 15 W, alimentazione 110~220 Vac <2400 W, manutenzione frontale
Datasheet
Manuali
| Model | |
| Model | DHI-PHMIA135-CC |
| Parameters | |
| Pixel Pitch | 1.56mm |
| Pixel Configuration | 1R1G1B |
| LED Type | Flip COB |
| Brightness(Max) | 600 nit |
| Color Temperature | 9300K±200K |
| Viewing Angle (H/V°) | 160°/160° , |
| Pixel Density | 409 600 dot/m 2 |
| Module Size | 300mm×168.75mm |
| Display Resolution(W×H) | 1920×1080 |
| Visible Area (H x V) | 3000mm×1687.5mm |
| Overall Size (W×H×D) | 3014mm × 1834.5mm × 34.5mm |
| Weight | 192kg±0.5 |
| Display Size | 135 inch |
| Cabinet Material | Die-cast aluminum |
| IP Rating | Front IP30/Rear IP30 |
| Operating Temperature/ | -10 ~+40 /10%~90%RH ℃ ℃ |
| Storage | |
| Temperature/ | -20 ~+60 /10%~60%RH ℃ ℃ |
| Humidity | The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Gray Scale | 13bits |
| Contrast Ratio | 10000:1 |
| Refresh Rate | 3840 Hz |
| Input Voltage | AC110~220V (+/-10%) |
| Input Power (Max) | 2400W |
| Input Power (Avg) | 1000W |
| Installation Mode | Movable base/Wall mounted(customizable ） |
| Maintenance Mode | Front Maintenance |
| System | |
| Storage Memory | 8G / 64G |
| / | RJ45x1 USB 3.0×4 Bluetooth×1 WIFI6×1 Light , , , , |
| Control Interface | perception×1 Infrared remote control×1 , |
| Video Interface | HDMIx2 1 in 1 out TYPE-C ×1 （ ), |
| Audio Interface | Built-in 4x15W speakers 3.5mm Line Out ×1 , |
| System | |
| Standard Accessories | Vacuum Front Maintenance Tool WIFI STATION: 802.11b/g/n/a/ac/ax |
| WiFi Standard | WIFI AP: 802.11b/g/n/a/ac WIFI STATION: 2400-2483.5MHz, 5150-5250MHz, |
| WiFi Frequency Range | 5250-5350MHz, 5470-5725MHz, 5725-5850MHz WIFI AP: 2400-2483.5MHz,5150-5350MHz ≤20dBm@2400-2483.5MHz;≤23dBm@5150-5250MHz; |
| WiFi MAX Transmission Power | ≤20dBm@5250-5350MHz;≤27dBm@5470-5725MHz; ≤14dBm@5725-5850MHz |
| Bluetooth Standard | BR/EDR/BLE(Bluetooth mode), BT5.0(Bluetooth version) |
| Bluetooth Frequency Range | 2400-2483.5MHz |
| Bluetooth MAX Transmission | ≤20dBm@2400-2483.5MHz |
