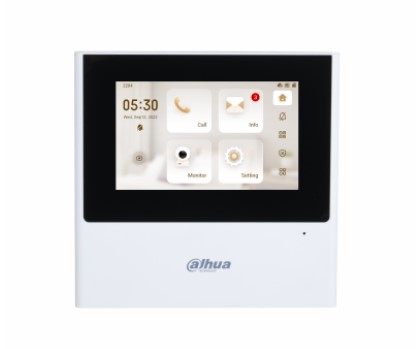

Monitor interno VTH IP/Wi-Fi/bifilare 4.3"
Monitor interno videocitofonico IP/Wi-Fi/bifilare con finiture bianche, display TFT da 4.3", risoluzione 480×272, 1 porta bifilare, 1 porta LAN 100 Mbps, touch screen capacitivo, 4 ingressi e 1 uscita allarme, montaggio a parete, alimentazione 48 Vdc, 1A/switch bifilare <6 W
Datasheet
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux OS |
| Network Protocol | UDP; TCP; IPv4; RTSP; SIP; RTP |
| Baisc | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 4.3" TFT display |
| Screen Resolution | 480 (H) × 272 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | 1 built-in speaker and 1 receiver speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz, 16 Bit |
| Function | |
| Communication Mode | Full digital Text messages can be received and viewed on the |
| Information Release | indoor monitor You can control the elevator through the indoor |
| Elevator Control | monitor |
| DND Mode | Do not disturb period can be set. Apartment: 4 |
| Number of Extensions | Villa: 9 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Port | |
| Alarm Input | 4 |
| Alarm Output | 1 1 × two-wire port and 1 × 10 Mbps/100 Mbps |
| Network Port | Ethernet port (one of them can be selected) |
| Alarm | |
| SOS Alarm | Yes |
| Performance | |
| Casing Material | ABS |
| General | |
| Appearance Color | White 48 VDC, 1A; two-wire switch (max power |
| Power Supply | transmission distance: 50 m) |
| Power Adapter | Optional |
| Installation | Surface Mount Surface mount bracket, alarm ribbon cable, and |
| Accessory | power-supply pins are provided 136.0 mm × 140.0 mm × 25.5 mm (5.35" × 5.51" × |
| Product Dimensions | 1.00") (W × H × D) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Power Consumption | ≤4 W (standby), ≤6 W (working) |
| Gross Weight | 0.21 kg (0.46 lb) |
