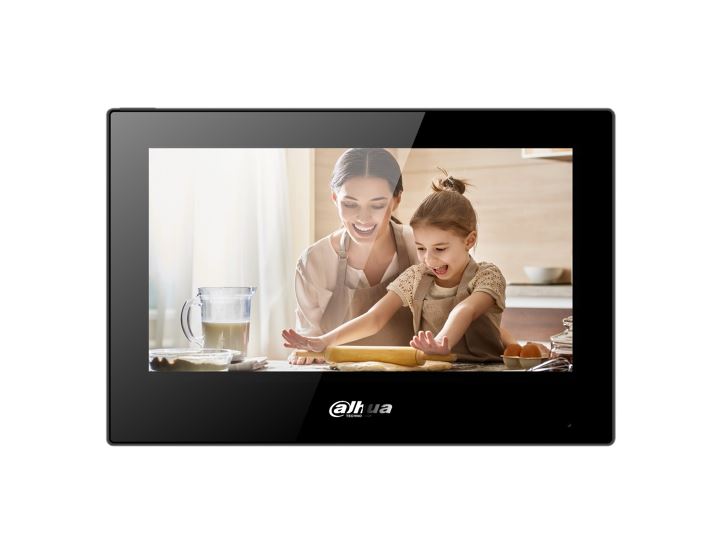

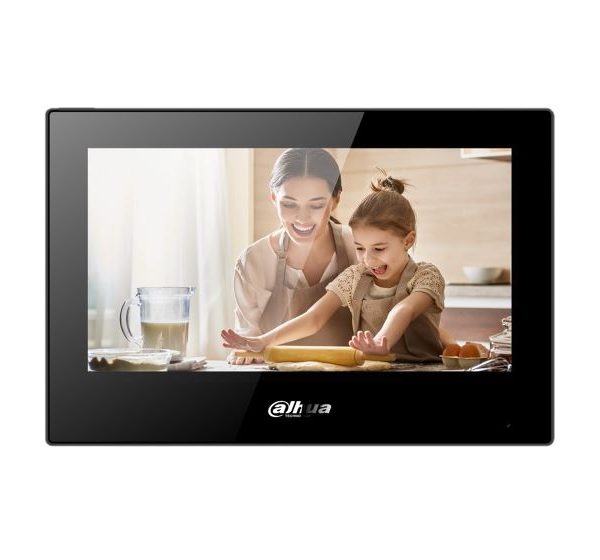

Monitor interno videocitofonico IP/Wi-Fi con finiture nere, display LCD TFT da 7", risoluzione 1024×600, 1 porta LAN 100 Mbps, Wi-Fi, touch screen capacitivo, 8 ingressi e 1 uscita allarme, sistema operativo Android 8.1, slot micro SD (fino a 256 GB), montaggio a parete, alimentazione 12 Vdc/PoE <7 W
| System | |
| Main Processor | Embedded processor |
| Operating System | Android 8.1 |
| Network Protocol | IPv4, TCP, SIP, UDP, RTSP |
| Basic | |
| Screen Type | Capacitive screen |
| Display Screen | 7 inch TFT LCD |
| Resolution | 1024×600 |
| Video Compression | H.264 |
| Audio Compression | PCM |
| Audio Input | 1 omnidirectional microphone |
| Audio Output | Built-in 1W speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/DNR |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital Text announcements released by the management |
| Information Release | center can be viewed You can control the elevator through the indoor |
| Elevator Control | monitor |
| Leave Videos or Text Messages | Yes (SD card is needed) |
| DND Mode | Do not disturb period can be set. Villa: 4 (Calls can be made among up to 3 indoor |
| Extension Number | monitors when only Wi-Fi is connected.) Apartment: 9 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4GHz 64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, |
| Wireless Security-Encryption | WPS |
| Performance | |
| Casing | PC+ABS |
| Port | |
| RS-485 | 1 |
| Alarm Input | 8 |
| Alarm Output | 1 |
| Power Output | 1 12V/100mA |
| Door Bell | Yes, use alarm input port |
| Alarm | |
| SOS | Yes |
| General | |
| Color | White/Black 12V DC 1A |
| Power Supply | POE(802.3AF) |
| Installation | Surface mount CE |
| Certifications | |
| Accessory | cable, and power-supply pins are provided 189.6 mm × 134.6 mm × 26 mm (7.46"×5.30"×1. |
| Product Dimensions | 02") |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH–95%RH (Non-condensing) |
| Operating Altitude | Less than 3,000 meters (9842.52 ft) |
| Power Consumption | ≤1.5W (standby), ≤7W (working) |
| Net Weight | 385 g (0.85 lb) |
| Gross Weight | 490 g (1.08 lb) |
| Ordering Information | |
| Type | Model Description DHI- |
| Digital Indoor Monitor | Android IP Indoor Monitor VTH5321GW-W |
| Digital Indoor Monitor | DHI-VTH5321GB-W Android IP Indoor Monitor |
