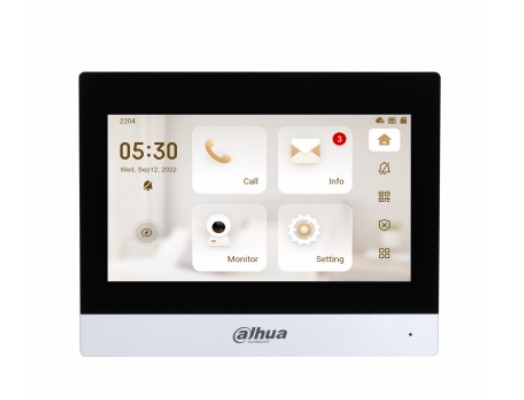

Monitor interno videocitofonico IP/Wi-Fi con finiture argento, display LCD TFT da 7", risoluzione 1024×600, 1 porta LAN 100 Mbps, touch screen capacitivo, 6 ingressi e 1 uscita allarme, sistema operativo Linux, modalità "non disturbare" personalizzabile, slot micro SD (fino a 64 GB), montaggio a parete, alimentazione 12 Vdc/PoE <7 W
| System | |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system ONVIF; SDK |
| Network Protocol | RTSP; RTP; SIP; DNS; SSH |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display | |
| Screen Resolution | 1024 × 600 |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way Audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 kHz; 16 Bit |
| Function | |
| Communication Mode | Full digital Receive and view text information released by the |
| Information Release | management center |
| Leave Videos | Yes (insert an SD card into the indoor monitor) Do not disturb period can be set; Do not disturb |
| DND Mode | mode |
| Number of Extensions | Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2,412–2,472 MHz |
| Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Performance | |
| Casing | Metal |
| Port | |
| RS-485 | 1 |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Door Bell | Yes (use any alarm input port) |
| General | |
| Appearance Color | Siliver 12 VDC 1A |
| Power Supply | Standard PoE (36–57 V, 0.35 A) |
| Installation | Surface Mount |
| Certifications | |
| Dimensions | 0.88") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) |
| Operating Humidity | 10%–95% RH (non-condensing) |
| Operating Altitude | Beneath 3,000 m (9,842.52 ft) |
| Power Consumption | Standby ≤ 3 W; working ≤ 7 W |
| Net Weight | 0.39 kg (0.86 lb) |
| Gross Weight | 0.58 kg (1.28 lb) |
| Ordering Information | |
| Type | Model Description DHI-VTH8621KMS- |
| IP Indoor Monitor | IP& Wi-Fi Indoor Monitor WP |
