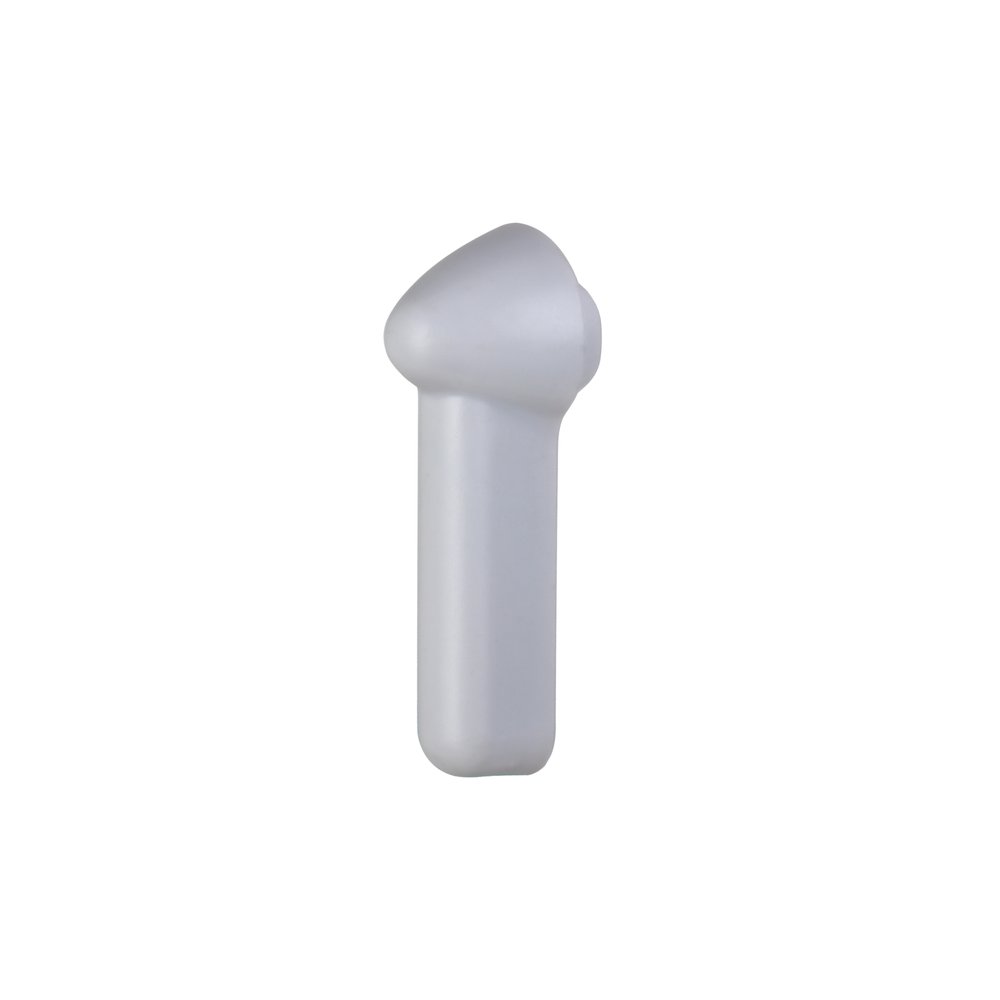

Confezione da 1000 tag AM (hammer) in ABS, 6.9 cm
Datasheet
Manuali
| Performance | |
| Technology | Acousto-Magnetic (AM) |
| Detection | 58 kHz ± 0.5 kHz |
| Detection | ≤ 1.0 m (Based on system performance) |
| Shell Material | Acrylonitrile Butadiene Styrene (ABS) |
| Lock Strength | Standard Conform with RoHS |
| General | |
| Color | Grey |
| Pin Length | 16 mm (0.63'') ± 0.5 mm (0.02'') |
| Length | 68.70 mm (2.70'') ± 0.5 mm (0.02'') |
| Width | 25.60 mm (1.01'') ± 0.5 mm (0.02'') |
| Thickness | 22 mm (0.87'') ± 0.5 mm (0.02'') |
| Packaging | 1000 pcs per carton |
| Carton | 380 mm × 290 mm × 270 mm (14.96'' × 11.42'' × 10.63'') |
| Carton Weight | 14.50 kg (31.97 lb) |
| Minimum Order | 1 carton |
| Environmental Constraints | |
| Temperature | 0 °C – 50 °C |
| Humidity | 10 % – 90 % (RH) |
| Anti-Corrosion | No Specific Protection |
| Ordering Information | |
| Type | Model Description AM Hammer Tag T009 1000 |
| AM Tag | DHI-ISC-ETA5-T009 pcs The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
