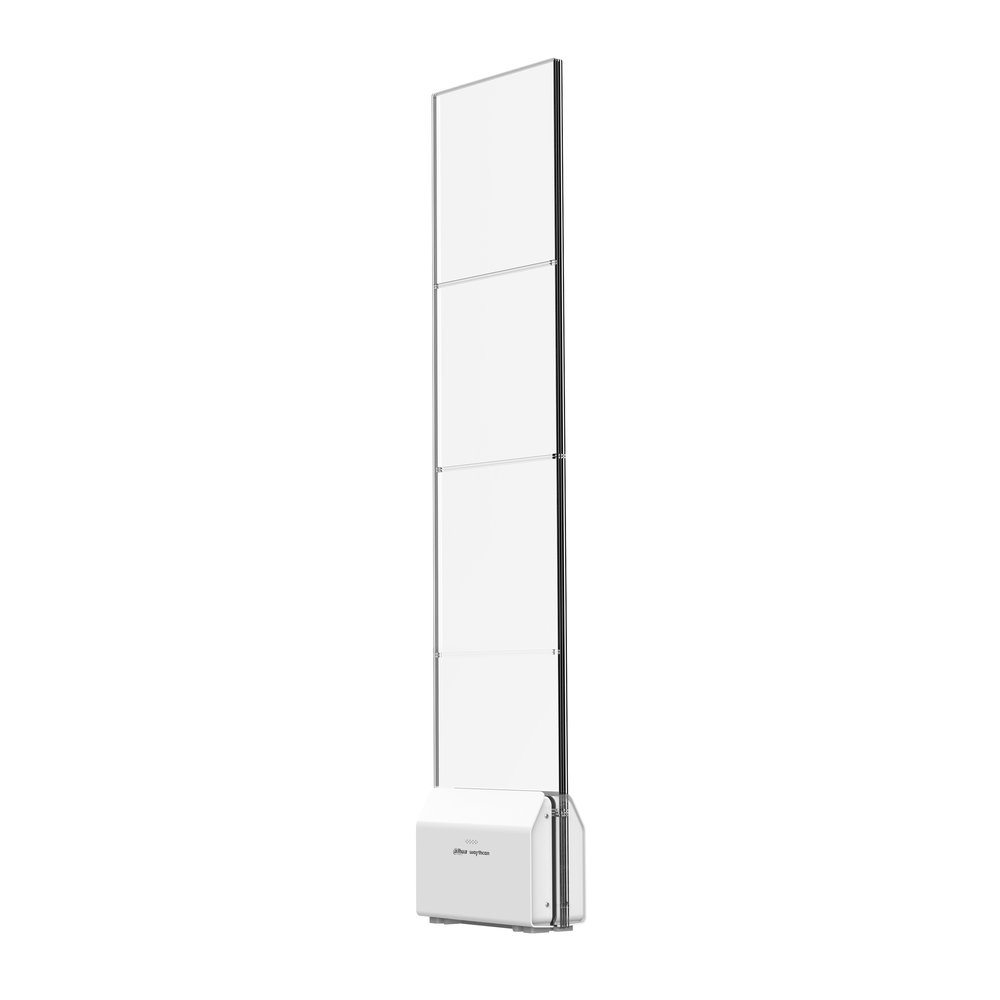

Antenna RF (Receiver) in acrilico, gestione tramite interfaccia web, WISS Cloud, porta RJ45, frequenza di rilevamento 8.2 MHz, distanza max. rilevamento label/tag 1.6/1.8 m, alimentazione 24 Vdc <5 W
Datasheet
Manuali
| Performance | |
| Model | DHI-ISC-EAR8-C108-R DHI-ISC-EAR8-C101-R DHI-ISC-EAR8-C101-T |
| Technology | Radio-Frequency (RF) |
| Detection | 8.2 MHz |
| Detection | 1.4 – 1.6 m (4.59 ft – 5.25 ft) (Distance of two antennas) * depending |
| Distance of EAS | on environment |
| Detection | 1.6 – 1.8 m (5.25 ft – 5.91 ft) (Distance of two antennas) * depending |
| Distance of EAS | on environment |
| Alarm Volume | Max 90 dB (Adjustable) |
| Antenna Type | RX Antenna RX Antenna TX Antenna |
| Adaptability | A Single TX antenna can connect to two RX antennas simultaneously |
| Sound and Light | Yes |
| Network | |
| Communication | HTTP, TCP/IP NA |
| Protocol | |
| Open Protocols | SDK NA |
| Supporting | DSS Pro, Configtool, DSS Pro, Configtool NA WISS |
| Configuration | Yes Yes NA |
| Certifications | |
| RoHS | Directive 2011/65/EU, 2015/863/EU and REACH regulations as defined in EC No 1907/2006 and subsequent amendments. ICNIRP 2010 Guidelines ICNIRP 1998 Guidelines EC directive 2013/35/EU EC recommendation 1999/519/EC |
| Safety | IEEE C95.1:2005 EN IEC 62311:2020 EN 50364:2010 EN 62369-1:2010 |
| Ports | |
| CCTV Port | NA camera. |
| Interface | |
| Power Interface | 4 Pin Terminal Block Bare Wire Terminal |
| Regular Parameters | |
| Shell Material | Acrylic |
| Shell Color | Transparent 100 – 240 VAC @ 50 |
| Input Voltage | 24 VDC / 3 A 24 VDC / 3 A Hz / 60 Hz The images, specifications and information mentioned in the document are only for reference, and might differ from the actual product. |
| Output Voltage | NA NA 24 VDC / 3 A |
| Power | |
| Typical Power | 4 W 4 W 5 W |
| Overall Exterior | 1569 mm × 350 mm × 134 mm (61.77" × 13.78" × 5.28") |
| of Primary / | 1690 mm × 464 mm × 213 mm (66.54" × 18.27" × 8.39") |
| Net Weight | 15 kg (33.07 lb) |
| Gross Weight | 20 kg (44.09 lb) |
| Operating | |
| Installation | Vertical pole mount |
| Ordering Information | |
| Type | Model Description Ultra Network Acrylic EAS RF DHI-ISC-EAR8-C108-R Antenna R WISS Lic Ultra Network Acrylic EAS RF |
| RF Anti-Theft Antenna | DHI-ISC-EAR8-C101-R Antenna R Ultra Network Acrylic EAS RF DHI-ISC-EAR8-C101-T Antenna T |
