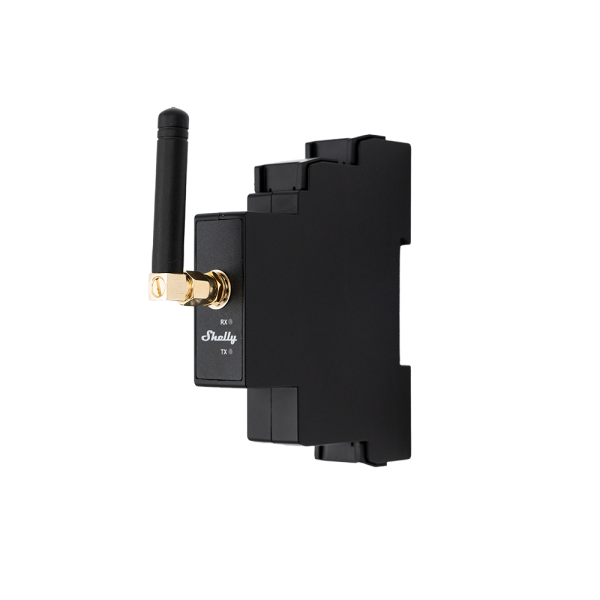

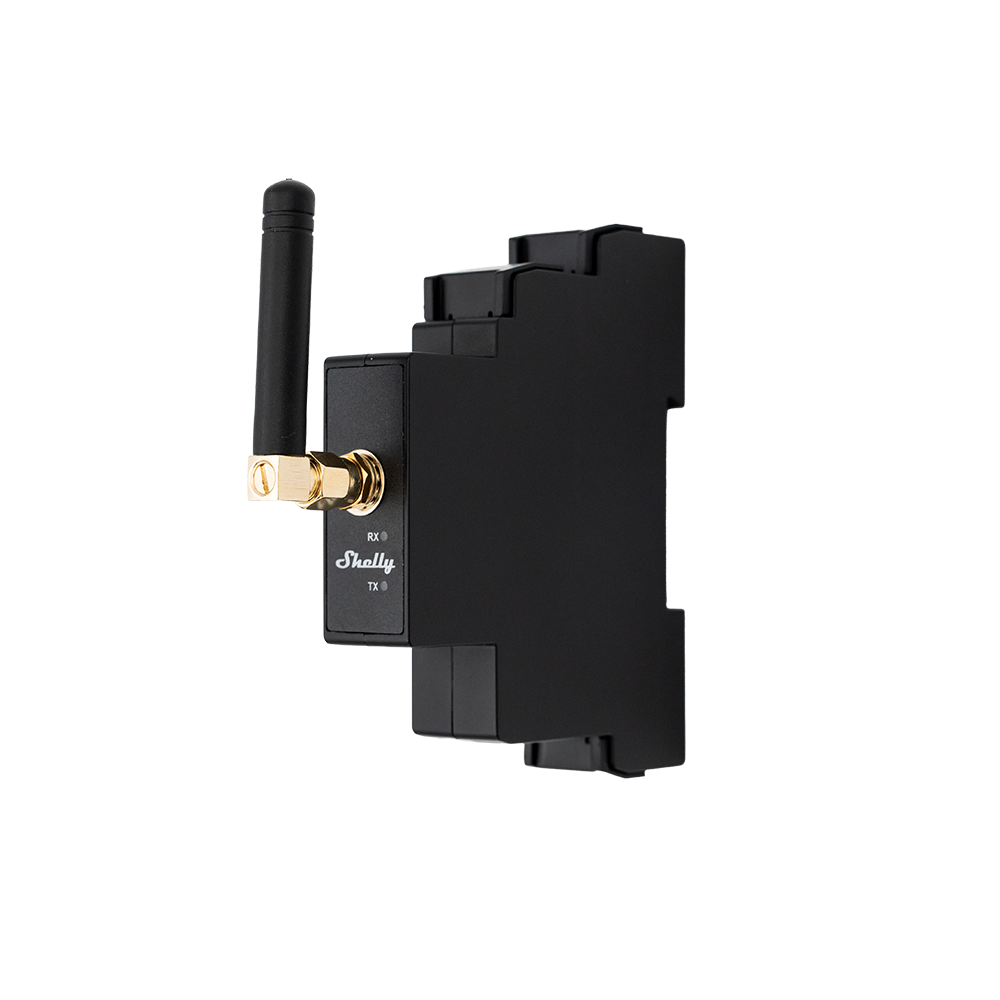

Shelly Pro LoRa Add-on – collegamento radio a lunga distanza
Modulo LoRa per i dispositivi Shelly Pro: collega punti distanti fino a 5 km senza rete Wi-Fi né cablaggi, con isolamento galvanico.
- Fino a 5 km di portata in campo libero
- Utile dove non arrivano né Wi-Fi né cavo: capannoni, cancelli, pompe, serbatoi
- Isolamento galvanico verso il dispositivo Pro
- Si abbina ad altri dispositivi Shelly dotati dello stesso modulo
| Physical | |
| Size (HxWxD): | 94x19x78 mm / 3.70×0.75×3.07 inch (without antenna, with mounting bracket) 94x19x92 mm / 3.70×0.75×3.62 inch (with antenna, with mounting bracket) |
| Weight: | 45 g / 1.59 oz (without antenna, with mounting bracket) 52 g / 1.83 oz (with antenna, with mounting bracket) |

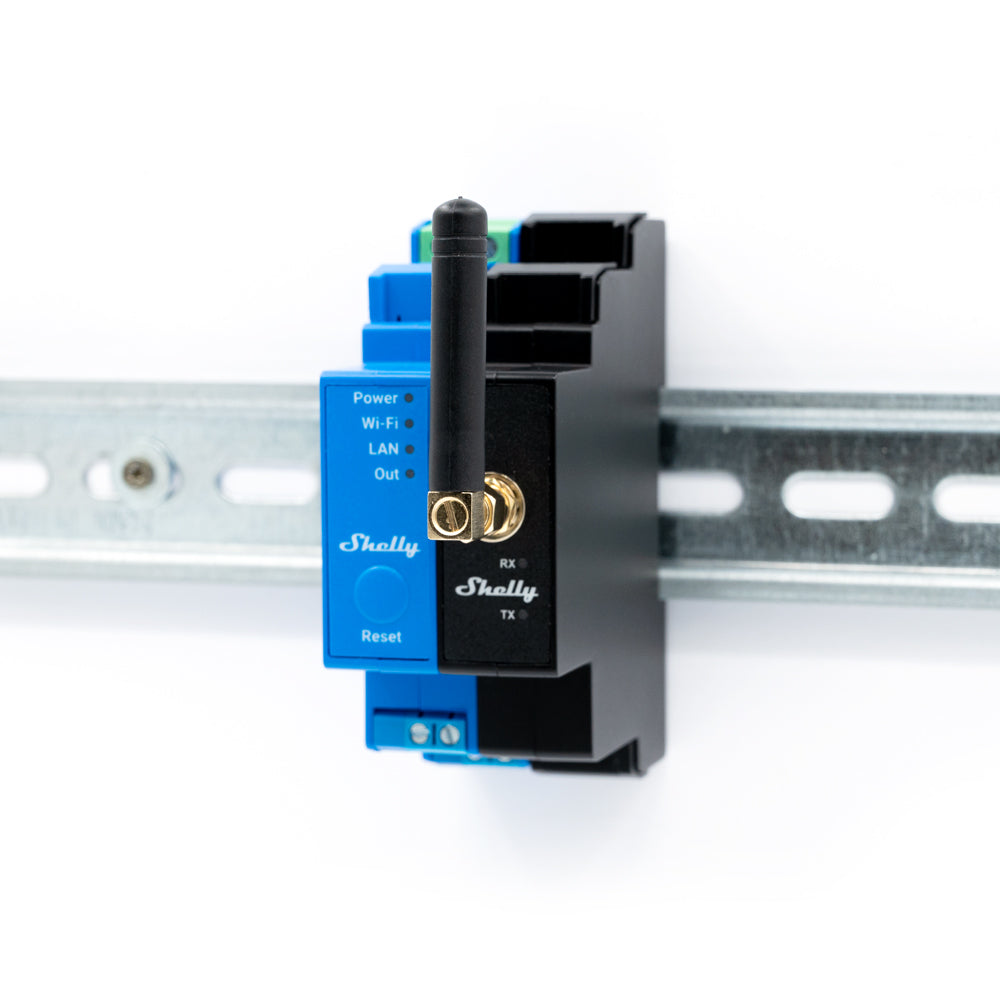

| Mounting: | DIN Rail Via the Shelly proprietary serial interface to connect to a Shelly compatible device |
| Shell material: | Plastic |
| Shell color: | Black |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30% to 70% RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 3.3 V (from compatible Shelly device) |
| Power consumption: | < 150 mW |
| LoRa | |
| RF band: | EU868 |
| Max. RF power: | < 14 dBm |
| Range: | Up to 5 000 m / 16 400 ft (Depends on local conditions) |
| Compatible antenna: | |
| Frequency range: | 863-870 MHz |
| Impedance: | 50 Ω |
| SWR: | < 3.0 |
| Connector: | SMA-М |
| Compatible host devices | |
| Compatible host devices: | Shelly Pro 1 Shelly Pro 1PM Shelly Pro 2 Shelly Pro 2PM Shelly Pro 3EM Shelly Pro Dimmer 0/1–10V PM Shelly Pro Dimmer 1PM Shelly Pro Dimmer 2PM Shelly Pro EM-50 Shelly Pro RGBWW PM |
