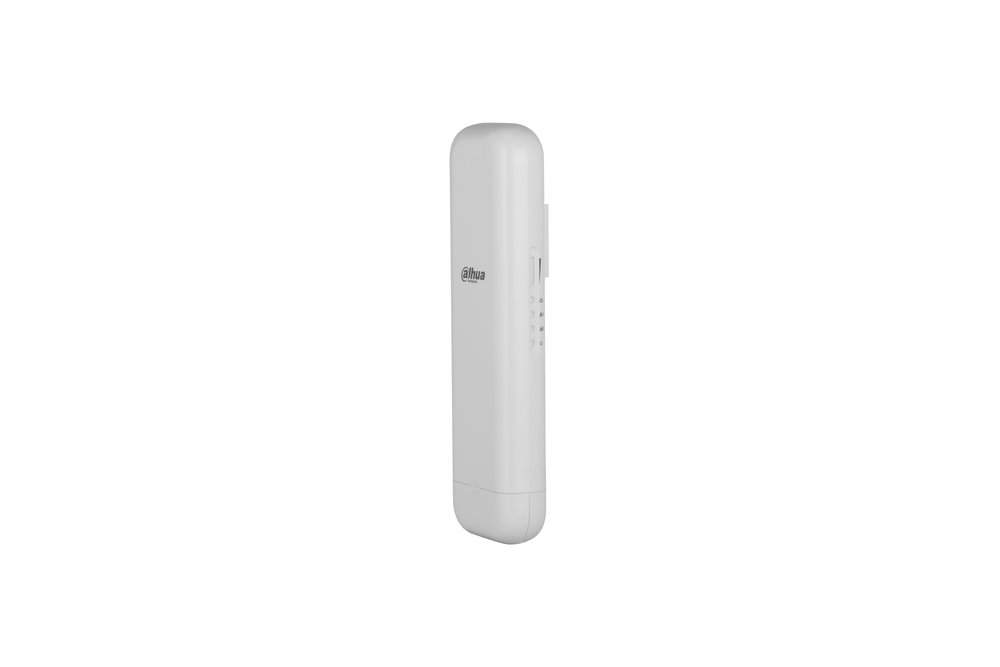

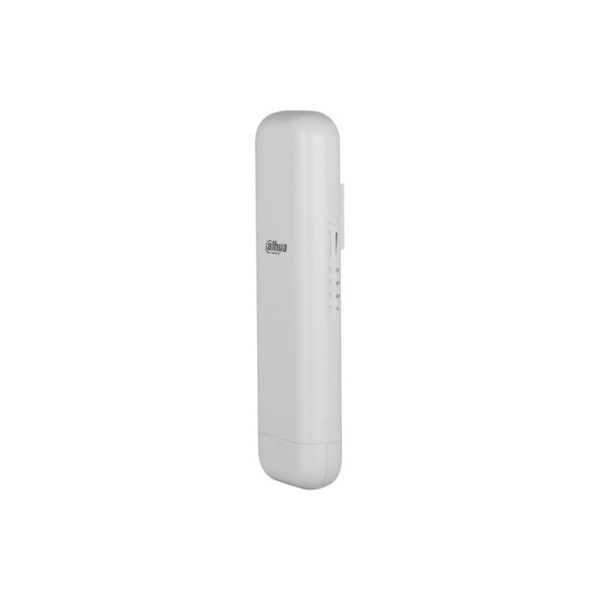

Ponte radio Wi-Fi 2.4/5G da esterno IP65 solar, gestione anche tramite Cloud, portata 3 km (Point to Point)/ 1 km (Point to Multi-point), angolo di apertura antenna 45° (H), 1 porta RJ-45 10/100 Mbps (LAN 1) e 1 porta RJ-45 10/100/1000 Mbps (LAN 2/PoE IN), alimentazione PoE/12-48 Vdc
Datasheet
Manuali
| Hardware | |
| Sold in Pairs | No Port 1: 1×RJ-45 10/100 Mbps (LAN1) |
| Function Slots | Port 2: 1×RJ-45 10/100/1000 Mbps (LAN2, PoE In) PoE(Passive,12-48V); |
| Power Supply | 12-48 VDC, 0.58 A |
| Power Consumption | Idle:2.3W;Typical:2.7W;Max:3.5W |
| Antenna | IPEX |
| Memory | DDR 128 MB 1 × Power 2 × LAN port |
| Indicator Light | 1 × Cloud management 1 × Wireless signal strength |
| External Port | 2 × RJ–45; 1 × DC IN(12-48V) |
| Performance | |
| Wireless Standard | 5 GHz: IEEE 802.11a/n/ac |
| Recommended Video | 5000m 5-ch 4-MP IPC ： |
| Channels | Point to Multi-Point(All STAs summaries) ： ； 1000m 8-ch 4-MP IPC ： ； 500m 16-ch 4-MP IPC ： ； 200m 32-ch 4-MP IPC ： ； 2.4 GHz 2.400 GHz–2.484 GHz |
| Operating Frequency | ： 5 GHz 5.150 GHz–5.850 GHz 2.4 GHz: 300 Mbps; |
| Wireless Transmission Rate | 5 GHz: 867 Mbps |
| Channel Width | 20/40/80 MHz CE EIRP: ； ≤20 dBm@2400-2483.5 MHz ； ≤23 dBm@5150-5250 MHz |
| Max. Output Power | ； ≤20 dBm@5250-5350 MHz ； ≤27 dBm@5470-5725 MHz ≤14 dBm@5725-5850 MHz |
| Antenna Direction Angle | Horizontal: 40°; vertical: 20° 11ac VHT20_MCS0:-93 dBm 11ac VHT20_MCS8:-71 dBm |
| Receiver Sensitivity | 11ac VHT40_MCS0:-90 dBm 11ac VHT40_MCS0:-67 dBm |
| Polarization | Vertical/horizontal Point to Point:3 km; |
| Transmission Distance | Point to Multi-Point:1km; |
| Connected Wireless | 8 |
| PoE | PoE In (passive) |
| Function | |
| Operating Mode | AP; STA(default mode) WEB; |
| Equipment Management | APP |
| Protection Mode | WPA-PSK/AES/TKIP |
| Security Mechanism | WPA/WPA2; hidden SSID |
| DFS | Yes |
| DHCP | Yes Device Management: wireless bridge configuration on the app through WLAN; local web management; cloud management (cloud web and app); quick configuration guide; scanning code to add; Wi-Fi hotspot access cloud; System Management: system log; factory settings; backup restore configuration; import configuration; DMZ; diagnosis and restart; Network Management: DHCP/Static IP configuration; |
| Software | VLAN configuration; LLDP; topology display; Wireless Network Management: 2.4 GHz Wi-Fi access management; working mode selection (access point/ client); hide SSID (only access point); wireless output power adjustment; channel selection and channel width configuration; Protection mode configuration (non- encrypted and WPA2-PSK; wireless frame segmentation and aggregation |
| General | |
| Operating Temperature | –30 °C to +65 °C (–22 °F to +149 °F) |
| Storage Temperature | –40 °C to +80 °C (–40 °F to +176 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Net Weight | 0.37kg (0.82Ib) |
| Gross Weight | 0.61kg (1.34Ib) 268 mm×82 mm×35 mm (10.55" × 3.23" × 1.38") (L × W |
| Product Dimensions | × H) |
| Packaging Dimensions | 138mm×66mm×347mm (L × W × H) |
| Protection | IP65 |
| Statics Protection | Air discharge: 15 kV; Contact discharge: 8 kV Common mode: 6 kV; |
| Lightning Protection | Differential mode: 4 kV |
| Installation | Pole mount |
| Certifications | |
| Packing List | 1 × Wall-Mount Bracket ; 1 × Quick start guide; 1 × Legal and regulatory information |
| Ordering Information | |
| Type | Model Description |
| WirelessBridge | DH-WBC5-45AC-03S Wireless Bridge |
