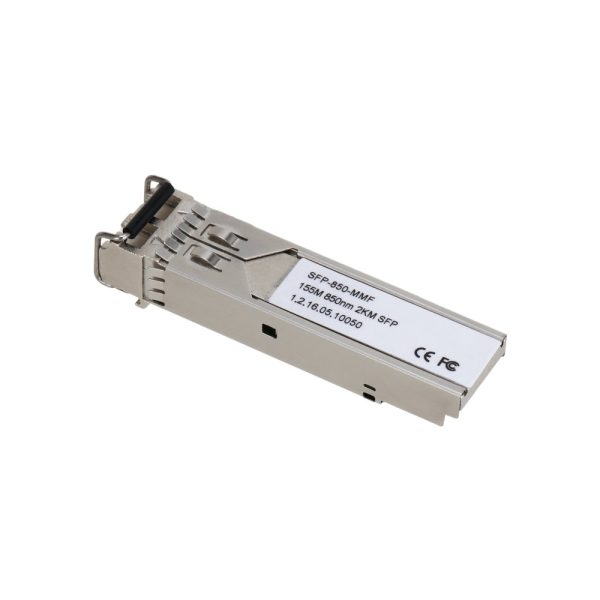

Modulo ottico SFP a doppia fibra, velocità 100 Mbps, portata 2 km, trasmissione a 850 nm, ricezione a 850 nm, attacco LC
Datasheet
Manuali
| Hardware | |
| Optical Fiber Type | Multiple mode double fiber |
| Optical Port Type | LC |
| Speed | 100Mbps |
| Performance | |
| Wavelength | 850 nm sending; 850 nm receiving |
| Transmission Distance | 2 km |
| Relative Humidity | 5%–85% |
| Operating Temperature | –40°C to +85 °C to (–40 °F to 185 °F) |
| Max. Speed of Optical Port | 100Mbps |
| Product Dimensions | 55.5 mm × 13.4 mm × 8.5 mm (2.2" × 0.5" × 0.3") Pictures in the document are for reference only, and the actual product shall prevail. |
| Ordering Information | |
| Type | Model Description Speed 1Gbps Single mode double fiber; GSFP-1310-20-SMF 1310 nm sending, and 1310 nm receiving; Transmission distance up to 20 km Speed 1Gbps GSFP-1310R-20- Single mode single fiber; SMF 1550 nm sending, and 1310 nm receiving; Transmission distance up to 20 km Speed 1Gbps GSFP-1310T-20- Single mode single fiber; SMF 1310 nm sending, and 1550 nm receiving; Transmission distance up to 20 km Speed 100Mbps Single mode single fiber; SFP-1310T-20-SMF 1310 nm sending, and 1550 nm receiving; Transmission distance up to 20 km Speed 100Mbps Single mode single fiber; SFP-1310R-20-SMF 1550 nm sending, and 1310 nm receiving; Transmission distance up to 20 km |
